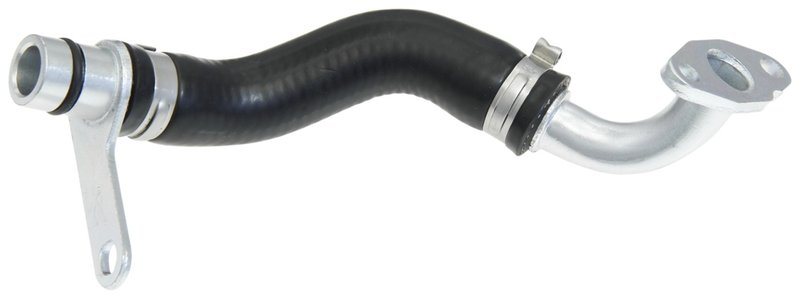

Gates TL120 Turbocharger Oil Return Line

Turbocharger Oil Drain Line for BMW Applications

The Gates TL120 turbocharger oil drain line is built for oil return service in turbocharger systems that run under high heat and constant pressure. It is designed for BMW applications where a secure, leak-resistant drain path is critical to keeping turbo oil moving away from the unit.

With stainless steel and rubber construction, this turbocharger oil return line combines durability with flexibility for a direct-fit style repair. The Gates Turbocharger Oil Line line focuses on oil conveyance to and from the turbocharger, and the TL120 is an OE Improved replacement for select BMW 120i, 320i, X3, X5, and related models.

Key Features

• Turbocharger oil drain line for oil return service
• Stainless steel and rubber construction for heat-exposed engine bay use
• 8.75 in. centerline length, 222 mm centerline length
• Bolt-on inlet fitting type
• Push-in outlet fitting type
• OE Improved replacement design
• Direct application coverage for select BMW turbocharged models

Detailed Product Overview

Gates TL120 is a turbocharger oil return line engineered to move oil away from the turbocharger and back into the engine system. The line is built to handle the elevated temperatures found around the turbocharger assembly while maintaining a secure connection at the inlet and outlet. For BMW owners searching for a BMW 320i turbocharger oil drain line, BMW X5 turbocharger oil return line, or a Gates TL120 replacement, this part addresses the oil-routing side of turbo service with OE Improved construction.

This part cross-references Hayden 1040 for the same application.

Common Problems This Part Can Address

• Oil seepage at the turbocharger drain path
• Heat-related deterioration of the original oil return line
• Restricted or unstable oil drainage from the turbocharger
• Fitment issues caused by a worn or damaged factory-style line
• Service replacement needs on turbocharged BMW engines

Installation Notes and Tips

Verify the inlet and outlet fitting styles before installation: bolt-on inlet and push-in outlet. Confirm the centerline length of 8.75 in. (222 mm) matches the original routing on the vehicle. Clean the mating surfaces and inspect nearby turbocharger components for heat damage, oil residue, or hardened seals before installing the new line.

Compatible With 2018 BMW 120i, 2018 BMW 220i, 2013-2018 BMW 320i, 2013-2018 BMW 320i xDrive, 2015-2018 BMW X4, 2016-2018 BMW X5, 2016-2017 BMW X3, 2013-2014 BMW X3, 2014-2016 BMW 228i, 2015-2016 BMW 228i xDrive, 2012-2016 BMW 328i, 2014-2016 BMW 328i GT xDrive, 2013-2016 BMW 328i xDrive, 2014-2016 BMW 428i, 2015-2016 BMW 428i Gran Coupe, 2014-2016 BMW 428i xDrive, 2015-2016 BMW 428i xDrive Gran Coupe, 2012-2016 BMW 528i, 2012-2016 BMW 528i xDrive, 2012-2016 BMW Z4, and 2012-2015 BMW X1.

Quality Assurance

Gates manufactures this turbocharger oil drain line with materials selected for turbo system heat and oil exposure. The TL120 is listed as an OE Improved part, reflecting a replacement design aligned with original equipment service needs for select BMW turbocharger applications.
