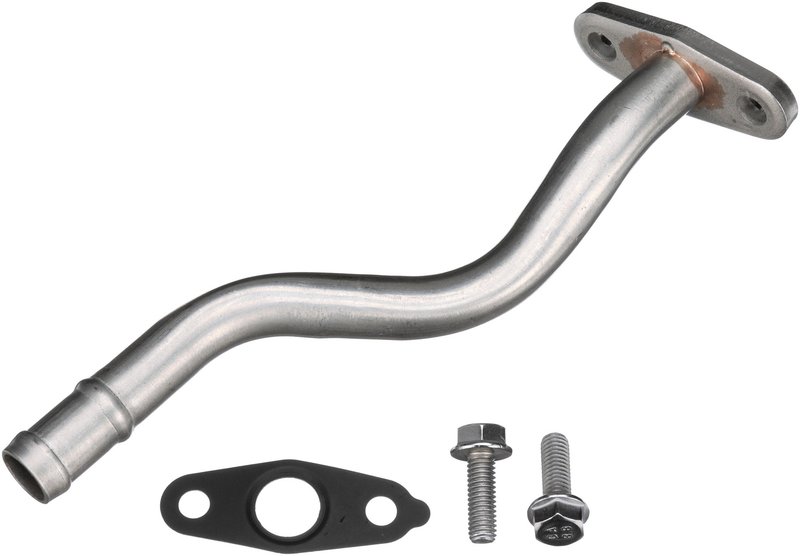

Gates TL185 Turbocharger Oil Return Line

Turbocharger Oil Drain Line for Honda Turbo Applications

Gates TL185 is a turbocharger oil drain line built for oil return service in turbocharged systems. It uses stainless steel construction and OE Exact comparison rating to match the original-style fit and routing for select Honda turbo applications.

Compatible With 2016-2021 Honda Civic, 2017-2021 Honda CR-V, and 2018-2020 Honda BR-V turbo-to-hose oil line applications. Gates TL185 is also identified by OE cross-reference 1554059B000 for the same application.

Key Features

• Stainless steel construction for durability in turbocharger heat zones
• Turbocharger oil drain line design for oil return from the turbocharger
• OE Exact comparison rating for original-style fitment
• Bolt-on inlet fitting and push-on outlet fitting
• Includes the turbocharger oil drain line, gasket, and 2 bolts
• Centerline length: 6.75 in. (171 mm)

Product Details

The Gates Turbocharger Oil Line line is engineered for oil conveyance to and from the turbocharger, where heat and pressure place constant demands on the system. TL185 is a turbocharger oil drain line that follows OE-style routing and connection types, helping maintain proper oil return on turbocharged Honda Civic, Honda CR-V, and Honda BR-V models. The stainless steel body supports long-term service in a high-temperature environment, while the bolt-on and push-on ends match the listed application requirements.

Common Issues This Part Can Address

• Oil leakage at the turbocharger drain connection
• Cracked or heat-damaged factory oil return line
• Poor oil drainage from the turbocharger housing
• Improper sealing at the turbo-to-hose connection
• Replacement needs after corrosion or fatigue in the oil line

Installation Notes

Verify the inlet and outlet fitting types before installation: bolt-on inlet and push-on outlet. Confirm the 6.75 in. centerline length and application match for your vehicle before replacing the line. Clean the sealing surfaces thoroughly and inspect the turbocharger and hose connections for wear or damage during service.

Quality Assurance

Gates turbocharger oil supply and drain lines are built for oil transfer in demanding turbo systems and are designed to handle the extreme temperatures found around the turbocharger. TL185 is listed as an OE Exact replacement-style part for select Honda turbo applications.
