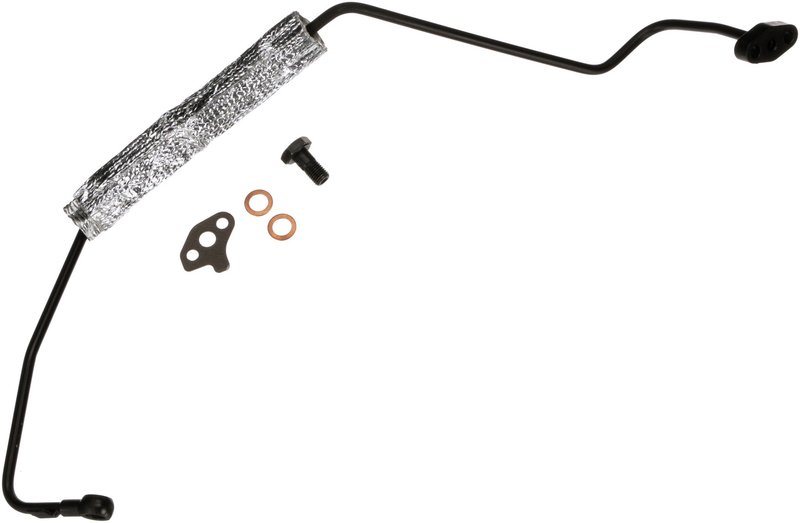

Gates TL209 Turbocharger Oil Supply Line

Turbocharger Oil Supply Line Overview

The Gates TL209 turbocharger oil supply line is an OE-exact replacement built for controlled oil delivery to and from the turbocharger. Its steel construction and banjo-style outlet are engineered for leak resistance and reliable performance in high-heat turbocharger systems.

Key Features

• OE exact replacement for direct-fit service.
• Steel construction for durability in demanding oil circuits.
• Banjo outlet and bolt-on inlet for application-specific routing.
• Includes gasket, banjo bolt, and washers for the listed assembly.
• Gates Turbocharger Oil Line product line for turbo oil conveyance.

Detailed Description

Gates TL209 is a turbocharger oil feed line designed to move oil through the turbo system while maintaining a secure seal under elevated temperatures. The 27-inch centerline length and steel body support proper routing, while the OE exact comparison rating helps match the original configuration. This part cross-references Interchanges (e.g., 282402GTA1) for the same application. Use TL209 when servicing turbocharger oil supply on a Kia Sportage, Hyundai Sonata, or Kia Sorento with the listed fitment.

Common Issues This Part Can Address

• Oil seepage at the turbocharger feed circuit.
• Cracked or corroded oil line replacement needs.
• Improper oil routing caused by a worn original line.
• Turbocharger service requiring a direct-fit oil supply line.

Installation Notes and Tips

Verify the inlet and outlet fitting types before installation: bolt-on inlet and banjo outlet. Confirm the 27-inch centerline length and compare the original routing path to ensure correct alignment. Replace sealing components as specified for the application and inspect mating surfaces for damage before tightening.

Quality Assurance

Gates designs turbocharger oil supply and drain lines for oil conveyance in high-temperature turbo systems, with a focus on leak resistance and robust construction. Part number TL209 identifies this OE-exact replacement line.
