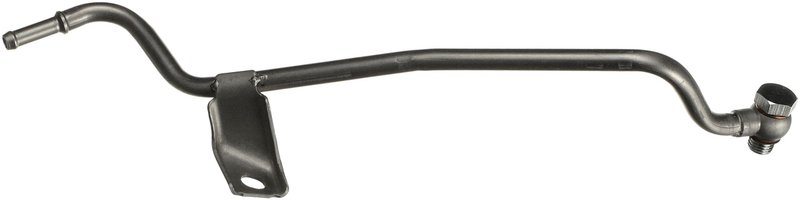

Gates TL249 Turbocharger Coolant Line - Return

Turbocharger Coolant Line for Ford Applications

The Gates TL249 turbocharger coolant drain line routes coolant through the turbo system to help maintain stable operating temperatures. Built from steel with OE exact grade construction, it matches the factory-style layout for direct replacement service on select Ford vehicles.

Compatible with 2013-2014 Ford Fusion, 2013-2016 Ford Escape, 2014-2016 Ford Transit Connect, and 2014-2019 Ford Fiesta in the turbocharger return position. Gates TL249 is a direct-fit turbocharger coolant line for service work that calls for OE-style routing and connection points.

Key Features

• Steel construction for durability in high-heat turbocharger environments
• OE Exact grade type for factory-style fit and routing
• Push-on inlet fitting and banjo outlet fitting
• Centerline length: 15.5 in. (394 mm)
• Includes turbocharger coolant drain line, banjo bolt, and 2 washers
• Cross-references Ford BM5Z 9G738 B for the same application

Product Details

Gates Turbocharger Coolant Line TL249 is part of the Turbocharger Coolant Line product line, built for coolant conveyance to and from the turbocharger. The steel line is engineered for the thermal demands of the turbo system and helps maintain a secure coolant path where factory-style replacement is required. This part number is a practical choice for Ford Fiesta, Ford Escape, Ford Transit Connect, and Ford Fusion turbocharger return-line service.

Common Problems This Part Addresses

• Coolant leakage at the turbocharger return line
• Corrosion or fatigue in the original steel coolant line
• Improper coolant routing after line damage or removal
• Loss of factory-style sealing at the banjo connection
• Service replacement needs on turbocharged Ford Fusion, Escape, Transit Connect, and Fiesta models

Installation Notes and Tips

Verify the vehicle year, model, and turbocharger return-line configuration before installation. Inspect the mating surfaces, banjo connection, and washers for cleanliness and damage before assembly. Confirm the line routing matches the OE path to avoid stress on the fittings and to maintain proper clearance around turbocharger components.

Quality Assurance

Gates manufactures this coolant line to OE exact standards for factory-style fitment and dependable service in turbocharger cooling systems. The TL249 is built to meet the demands of high-temperature operation in the specified Ford applications.
