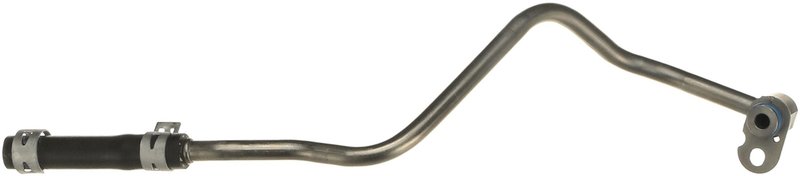

Gates TL302 Turbocharger Coolant Line - Return
| Brand | Gates TL302 |
|---|---|
| Position | Return |
| Material | Steel, rubber |
| Centerline Length | 16 |
| Centerline Length | 406 |
| Grade Type | Oe exact |
| Inlet Fitting Type | Push on |
| Outlet Fitting Type | Bolt on |
| Contents | Turbocharger coolant drain line |
| Type | Turbocharger coolant drain line |
| Product line | Turbocharger Coolant Line |
| Fits | Ford · 4 vehicles |
OE exact fit. Turbocharger coolant line with push-on and bolt-on ends for straightforward replacement.
Steel and rubber. Built to handle extreme turbocharger temperatures while helping prevent leaks.
Coolant drain line. Carries coolant to and from the turbocharger for reliable system flow.
Cross-references Dorman - OE Solutions 667-684 and FC3Z 9U469 A for the same application. See all 2.
Turbocharger Coolant Line for Ford Super Duty
The Gates TL302 turbocharger coolant line routes coolant to and from the turbocharger to help maintain stable operating temperatures in the cooling circuit. Built with steel and rubber construction and OE Exact grade type, it is made for direct replacement service on select Ford Super Duty diesel applications.
Compatible with 2015-2016 Ford F-250 Super Duty, return, and 2015-2016 Ford F-350 Super Duty, return, this turbocharger coolant drain line supports a precise OE-style fit. Gates TL302 is a practical choice when replacing a leaking, damaged, or heat-aged turbo coolant line on the Ford F-250 Super Duty or Ford F-350 Super Duty.
Key Features
- Turbocharger coolant drain line for coolant return service
- Steel and rubber construction for durability in high-heat engine bay conditions
- OE Exact grade type for factory-style replacement fitment
- Push-on inlet fitting and bolt-on outlet fitting
- Centerline length: 16 in. (406 mm)
- Gates TL302 part number for easy identification
Product Details
Gates Turbocharger Coolant Supply and Return Lines are engineered for coolant flow to and from the turbocharger, where heat and pressure place constant demand on the line. The TL302 follows OE-style dimensions and connection points to support proper routing and sealing in the turbocharger cooling system. This part cross-references Dorman - OE Solutions 667-684 for the same application.
Common Problems This Part Can Help Solve
- Coolant leakage at the turbocharger return line
- Cracked or heat-damaged coolant hose sections
- Corrosion or wear at the line body or fittings
- Poor sealing at the turbocharger coolant connection points
- Replacement needs after inspection of the turbo cooling circuit
Installation Notes and Tips
Verify the return-line routing and fitting style before installation. Inspect mating surfaces, clamps, and adjacent coolant components for wear or contamination, and confirm the line is seated correctly at both the push-on and bolt-on connections. This part is listed for 2015-2016 Ford F-250 Super Duty and 2015-2016 Ford F-350 Super Duty return applications only.
Quality Assurance
Gates manufactures this turbocharger coolant line as an OE Exact replacement part for the specified Ford Super Duty applications, with materials selected for the temperature demands of turbocharger coolant service.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2016 | Ford | F-250 Super Duty | 6.7L | V8 | DIESEL | Return | Turbocharger Coolant Line |
| 2016 | Ford | F-350 Super Duty | 6.7L | V8 | DIESEL | Return | Turbocharger Coolant Line |
| 2015 | Ford | F-250 Super Duty | 6.7L | V8 | DIESEL | Return | Turbocharger Coolant Line |
| 2015 | Ford | F-350 Super Duty | 6.7L | V8 | DIESEL | Return | Turbocharger Coolant Line |
