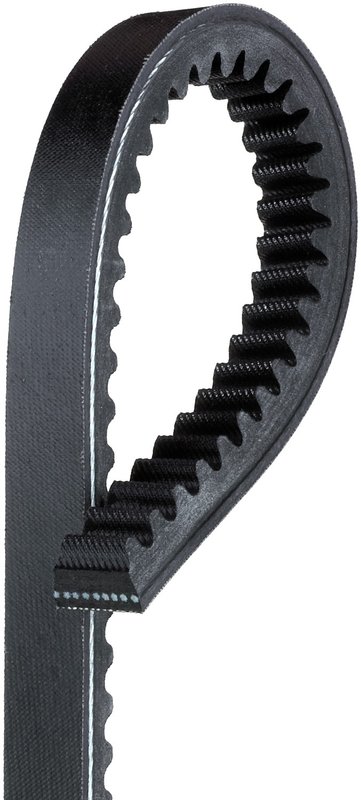

Gates TR22336 Accessory Drive Belt - Air Conditioning

Reliable Gates Truck & Bus V-Belt TR22336 Overview

The Gates Truck & Bus V-Belt TR22336 is engineered for durability and consistent performance in heavy-duty truck and bus applications. Designed with a notched construction and polyester cord material, this accessory drive belt ensures efficient power transmission and long service life.

• Top width of 15 mm (.594 inches) for precise fitment
• Notched construction enhances flexibility and grip
• Polyester cord material provides strength and resistance to stretching
• Epdm belt material offers durability and heat resistance
• Effective length of 853 mm (33.6 inches) suitable for various truck and bus models
• Cross section designation Ra with a single strand design
• Outside circumference of 868 mm (34.18 inches) for accurate replacement
• 40-degree angle design for optimal belt seating and performance

About the Gates Truck & Bus V-Belt Product Line

The Gates Truck & Bus V-Belt line is specifically developed to meet the rigorous demands of commercial vehicles. These belts feature notched designs and high-quality materials like EPDM and polyester cords to withstand the stresses of heavy-duty accessory drive systems. The TR22336 part number is part of this line, offering reliable operation for trucks and buses requiring precise belt dimensions and construction.

Technical Details and Applications

The TR22336 accessory drive belt is constructed with a notched design that improves flexibility and reduces heat buildup during operation. The polyester cord material enhances tensile strength, minimizing elongation and maintaining consistent tension. The EPDM belt material resists wear, ozone, and temperature extremes, making it suitable for demanding truck and bus environments. With a top width of 15 mm and an effective length of 853 mm, this belt fits specific commercial vehicle accessory drive systems requiring the Ra cross section and a 40-degree angle profile.

Common Uses and Problem Solving

• Replacement for worn or damaged accessory drive belts in trucks and buses
• Addresses slipping or squealing belts caused by stretched or hardened belts
• Prevents power loss to engine accessories such as alternators, water pumps, and air compressors
• Improves belt life in high-heat and high-load conditions
• Ensures proper belt tension and alignment in accessory drive systems

Installation Notes and Tips

When installing the Gates TR22336 belt, ensure the correct belt tension is applied to prevent premature wear or slippage. Verify the belt routing matches the vehicle manufacturer’s specifications. Inspect pulleys and accessory components for wear or damage before installation. The notched design requires proper alignment to maintain optimal contact and performance.

Quality Assurance and Warranty

Gates manufactures the TR22336 belt to meet industry standards for commercial vehicle accessory drive belts. The use of EPDM and polyester cord materials ensures durability and resistance to environmental factors. While specific warranty details are not provided, Gates products typically come with manufacturer-backed quality assurance to support reliable operation in truck and bus applications.
