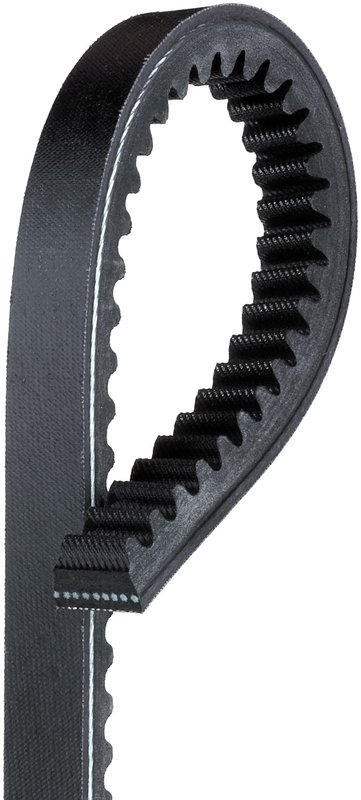

Gates TR22474 Accessory Drive Belt - Air Conditioning, Fan and Alternator or Fan and Power Steering
| Brand | Gates TR22474 |
|---|---|
| Position | Air Conditioning, Fan and Alternator, and Fan and Power Steering |
| Top Width | .594 |
| Top Width | 15 |
| Construction | Notched |
| Cord Material | Polyester |
| Cross Section Designation | Ra |
| Strand Quantity | 1 |
| Effective Length | 1203 |
| Effective Length | 47.35 |
| Outside Circumference | 1218 |
| Outside Circumference | 47.93 |
| Type | Truck & bus v-belt |
| Belt Material | Epdm |
| Angle | 40 |
| 9837 | Yes |
| Angle | 40 |
| Belt Material | Epdm |
| Construction | Notched |
| Cord Material | Polyester |
| Notched | Yes |
| Number of Strands | 1 |
| Section | Ra |
| Type | Truck & bus v-belt |
| Product line | Truck & Bus V-Belt |
| Fits | Toyota · 8 vehicles |
Truck & Bus V-Belt. Built for heavy-duty and off-road accessory drive applications.
Notched construction. Helps the belt flex smoothly while handling normal shock loads.
EPDM belt material. Resists wear in demanding accessory drive systems.
Cross-references Airtex Fuel Pumps 41216, Anchor 300105 and Dayco 22470 for the same application. See all 139.
Gates TR22474 Truck & Bus V-Belt Overview
The Gates TR22474 is a Truck & Bus V-Belt built for heavy-duty accessory drive service. It is sized for the fan and alternator drive on select Toyota Land Cruiser applications and uses a notched EPDM construction to handle normal shock loads without damage to the belt.
Gates Truck & Bus V-Belt products are part of the Green Stripe series, a line focused on demanding truck, bus, and off-road equipment duty. This belt uses polyester cord reinforcement and a single-strand RA section profile for stable operation in accessory drive systems.
- Fits 1981-1987 Toyota Land Cruiser, fan and alternator
- Part number TR22474 for direct identification
- Truck & Bus V-Belt construction for heavy-duty accessory drive use
- Notched EPDM belt material for flexibility and wear resistance
- Polyester cord material for strength in demanding service
- RA cross section with 40-degree angle and 15 mm top width
- Effective length: 1203 mm (47.35 in)
- Outside circumference: 1218 mm (47.93 in)
Detailed Application and Design
Gates TR22474 is engineered for accessory drive belt systems that power the fan and alternator on 1981-1987 Toyota Land Cruiser models. The notched profile helps the belt conform around pulleys, while the EPDM construction and polyester cord support consistent operation in truck and bus duty cycles. If you are searching for a Toyota Land Cruiser fan and alternator belt, or a Gates TR22474 replacement belt for heavy-duty service, this part matches the listed application and dimensions.
This part cross-references Dayco 22470 and 22475 for the same application.
What This Belt Helps Address
- Squealing or slipping accessory drive belts
- Cracked, glazed, or worn V-belt surfaces
- Loss of fan or alternator drive performance
- Incorrect belt length or section for the listed Toyota Land Cruiser application
- Shock loading in heavy-duty truck and bus accessory drive systems
Installation Notes and Tips
Verify pulley alignment, tensioner condition, and pulley wear before installation. Confirm the belt section, effective length, and outside circumference against the original belt or service specifications for the 1981-1987 Toyota Land Cruiser fan and alternator drive. After installation, set belt tension to the vehicle manufacturer’s specification and recheck after initial run-in.
Quality Assurance
Gates manufactures the TR22474 as part of its Truck & Bus V-Belt line for demanding accessory drive applications. The Green Stripe series is built for heavy-duty truck, bus, and off-road equipment service, with construction intended to absorb normal shock loads without belt damage.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1987 | Toyota | Land Cruiser | 2.4L | L4 | DIESEL | Fan and Alternator | Truck & Bus V-Belt |
| 1987 | Toyota | Land Cruiser | 3.4L | L4 | DIESEL | Fan and Alternator | Truck & Bus V-Belt |
| 1986 | Toyota | Land Cruiser | 3.4L | L4 | DIESEL | Fan and Alternator | Truck & Bus V-Belt |
| 1985 | Toyota | Land Cruiser | 3.4L | L4 | DIESEL | Fan and Alternator | Truck & Bus V-Belt |
| 1984 | Toyota | Land Cruiser | 3.4L | L4 | DIESEL | Fan and Alternator | Truck & Bus V-Belt |
| 1983 | Toyota | Land Cruiser | 3.4L | L4 | DIESEL | Fan and Alternator | Truck & Bus V-Belt |
| 1982 | Toyota | Land Cruiser | 3.4L | L4 | DIESEL | Fan and Alternator | Truck & Bus V-Belt |
| 1981 | Toyota | Land Cruiser | 3.4L | L4 | DIESEL | Fan and Alternator | Truck & Bus V-Belt |
