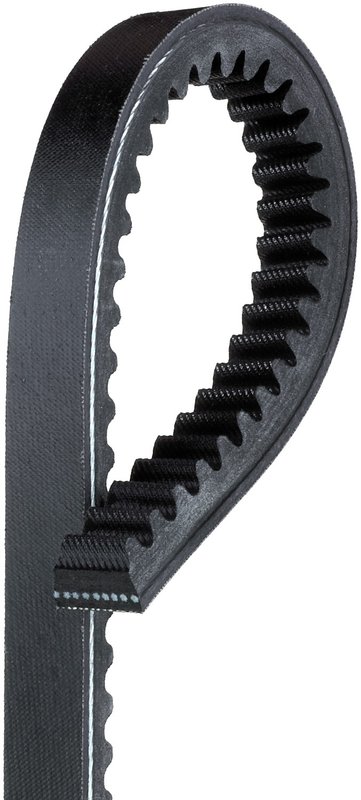

Gates TR22534 Accessory Drive Belt
| Brand | Gates TR22534 |
|---|---|
| Position | Fan, Power Steering, Alternator and Water Pump, Water Pump and Alternator, Fan and Alternator, and Fan and Air Conditioning |
| Top Width | .594 |
| Top Width | 15 |
| Construction | Notched |
| Cord Material | Polyester |
| Cross Section Designation | Ra |
| Strand Quantity | 1 |
| Effective Length | 1355 |
| Effective Length | 53.33 |
| Outside Circumference | 1369 |
| Outside Circumference | 53.91 |
| Type | Truck & bus v-belt |
| Belt Material | Epdm |
| Angle | 40 |
| 9837 | Yes |
| Angle | 40 |
| Belt Material | Epdm |
| Construction | Notched |
| Cord Material | Polyester |
| Notched | Yes |
| Number of Strands | 1 |
| Section | Ra |
| Type | Truck & bus v-belt |
| Fits | — |
Heavy-duty design. Built for truck, bus, and off-road accessory drive applications.
Notched construction. Helps the belt absorb normal shock loads without damage.
EPDM belt material. Offers durable performance in demanding drive systems.
Cross-references Anchor 300090, AP Exhaust 20002 and Autolite 1103 for the same application. See all 215.
Gates TR22534 Truck & Bus V-Belt
The Gates TR22534 is a Truck & Bus V-Belt built for heavy-duty accessory drive systems in trucks, buses, and off-road equipment. Its notched construction and EPDM belt material are selected to handle normal shock loads while maintaining dependable drive performance.
For buyers searching for a Gates TR22534 accessory drive belt or a Truck & Bus V-Belt replacement, this belt is part of the Gates Green Stripe Truck and Bus Series. It is sized for applications that call for a 15 mm top width, 40-degree angle, RA section, and 53.33-inch effective length.
Key Features
- Gates Truck & Bus V-Belt, part number TR22534
- Notched construction for flexible operation in demanding drive systems
- EPDM belt material for heavy-duty service
- Polyester cord material for stable reinforcement
- RA cross section with 15 mm top width
- 40-degree angle and 53.33-inch effective length
- Designed for truck, bus, and off-road equipment applications
Product Details
The TR22534 is engineered as an accessory drive belt for heavy-duty vehicles that rely on consistent belt tension and accessory operation. Gates identifies this belt as part of its Green Stripe Truck and Bus Series, a product line focused on commercial-duty belt applications. If you are replacing a worn belt on a truck, bus, or off-road machine, TR22534 provides the dimensional profile and construction needed for the correct drive setup. This part number is also referenced as TR22534 in interchange listings, and it cross-references Monroe Shocks & Struts 5520 for the same application.
What It Helps Address
- Squealing or slipping accessory drive belts
- Cracking, glazing, or visible wear on the belt surface
- Loss of accessory drive performance from belt stretch or fatigue
- Noise caused by a belt that no longer tracks correctly
- Replacement needs on heavy-duty truck, bus, and off-road equipment
Installation Notes and Tips
Verify the belt profile, effective length, and outside circumference before installation. Confirm that the application calls for an RA-section, 40-degree V-belt with a 15 mm top width and 53.33-inch effective length. Inspect pulleys, tensioners, and accessory drive components for wear before installing the new belt, and compare the removed belt to TR22534 to confirm the correct routing and size.
Quality Assurance
Gates manufactures the TR22534 as part of its Truck & Bus V-Belt line for heavy-duty service requirements. The belt uses EPDM construction and polyester cord reinforcement to support demanding commercial and off-road accessory drive conditions.
