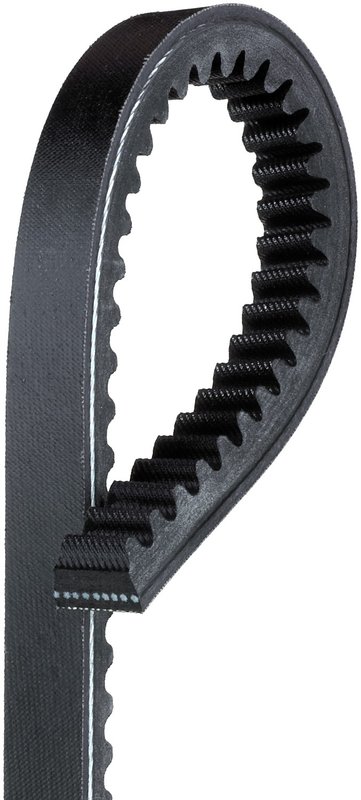

Gates TR24424 Accessory Drive Belt - Fan or Fan and Generator

Overview of Gates TR24424 Accessory Drive Belt

The Gates TR24424 is a durable accessory drive belt designed for truck and bus applications. Engineered with a notched construction and polyester cord material, this belt ensures reliable power transmission in demanding commercial vehicle environments.

• Top width: 0.656 inches (17 mm)
• Effective length: 42.34 inches (1075 mm)
• Outside circumference: 42.92 inches (1090 mm)
• Construction: Notched for improved flexibility and heat dissipation
• Cord material: Polyester for strength and durability
• Belt material: EPDM for resistance to heat, ozone, and wear
• Cross section designation: Ta
• Single strand design with a 36-degree angle
• Type: Truck & bus V-belt

Gates Truck & Bus V-Belt Product Line

The Gates Truck & Bus V-Belt line is specifically developed to meet the rigorous demands of commercial vehicles such as trucks and buses. This product line focuses on delivering belts with enhanced durability and performance, utilizing materials like EPDM and polyester cords to withstand high temperatures and heavy loads. The TR24424 is part of this line, offering a notched design that improves belt flexibility and reduces heat buildup, which is critical for maintaining accessory drive system efficiency in large vehicles.

Detailed Product Description

The TR24424 accessory drive belt features a notched construction that allows for better bending and heat dissipation compared to traditional belts. Its polyester cord material provides tensile strength and resistance to elongation, ensuring consistent performance over time. The EPDM belt material offers excellent resistance to ozone, heat, and wear, making it suitable for the harsh operating conditions found in truck and bus engines. With a top width of 0.656 inches and an effective length of 42.34 inches, this belt fits specific accessory drive systems requiring a Ta cross section designation and a single strand configuration.

Common Applications and Issues Addressed

• Replacement for worn or cracked accessory drive belts in commercial trucks and buses
• Solves slipping or squealing noises caused by belt wear or improper tension
• Addresses loss of accessory function such as alternator, water pump, or power steering drive
• Prevents premature belt failure due to heat and ozone exposure
• Improves overall accessory drive system reliability in heavy-duty vehicles

Installation Notes and Tips

• Ensure proper belt tension according to vehicle manufacturer specifications to avoid slippage or excessive wear
• Inspect pulleys and accessory components for alignment and damage before installation
• Use the correct belt routing diagram for the specific truck or bus model
• Replace belts in pairs or sets when applicable to maintain balanced accessory drive performance
• Check belt condition regularly as part of routine maintenance

Quality Assurance and Warranty

Gates manufactures the TR24424 accessory drive belt to meet stringent quality standards for commercial vehicle applications. The use of EPDM and polyester materials ensures durability and resistance to environmental factors. While specific warranty details may vary, Gates typically offers coverage against manufacturing defects, providing confidence in the belt's reliability for truck and bus accessory drive systems.
