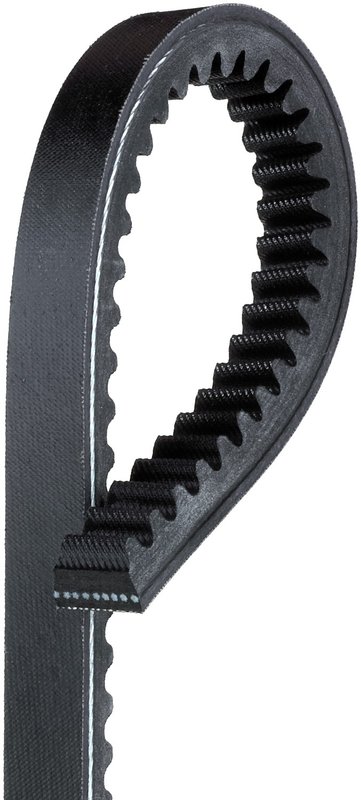

Gates TR28437 Accessory Drive Belt

Truck & Bus V-Belt for Heavy-Duty Drive Systems

The Gates TR28437 is a Truck & Bus V-Belt built for heavy-duty truck, bus, and off-road accessory drive systems. Its notched construction and EPDM belt material help it handle normal shock loads while maintaining consistent drive performance in demanding service.

Gates Truck & Bus V-Belt products are part of the Green Stripe series, a line focused on commercial-duty accessory drive applications where durability and stable belt tracking matter. The TR28437 follows that approach with a polyester cord and a VA section profile for heavy-duty belt routing requirements.

• Part number: TR28437
• Truck & Bus V-Belt for commercial and off-road accessory drive systems
• Notched construction for flexible operation in belt paths with multiple pulleys
• EPDM belt material for demanding underhood conditions
• Polyester cord material for strength and dimensional stability
• 36-degree angle and VA cross section designation
• Effective length: 43.72 in. / 1110 mm
• Outside circumference: 44.30 in. / 1125 mm
• Top width: 0.775 in. / 20 mm

Detailed Product Description

Gates TR28437 is an accessory drive belt for heavy-duty truck, bus, and off-road equipment applications. The notched profile supports smoother flexing around pulleys, while the EPDM construction and polyester reinforcement help the belt maintain service characteristics in demanding commercial use. If you are sourcing a Gates TR28437 replacement for a truck or bus accessory drive system, this belt is built around the dimensions and section profile needed for that application.

This part cross-references Gates 7430 and 7435 for the same application. It is also listed among interchange references used across commercial belt catalogs, including applications associated with truck and bus accessory drive service.

What This Belt Helps Address

• Squealing or slipping caused by a worn accessory drive belt
• Cracking, glazing, or edge wear on an aging V-belt
• Loss of belt tension from stretch or material fatigue
• Drive issues in truck, bus, and off-road accessory systems
• Noise and vibration from a belt that no longer tracks correctly

Installation Notes and Tips

Verify the belt section, effective length, outside circumference, and top width before installation. Match the TR28437 to the existing routing path and pulley layout on the vehicle, and inspect pulleys, tensioners, and accessory bearings for wear before fitting the new belt. For vehicle-specific search use, this part is commonly referenced for heavy-duty truck and bus accessory drive service, including Ford F-150 and Chevrolet Silverado style search terms where commercial belt cross-reference data is being checked.

When replacing a V-belt, confirm that the belt sits fully in the pulley grooves and that the drive system is aligned correctly. For truck and bus maintenance searches, Gates TR28437 is often used as a reference point for accessory drive belt replacement on heavy-duty equipment.

Quality Assurance

Gates is a recognized supplier of belt-drive components, and the Green Stripe Truck & Bus Series is focused on commercial-duty service requirements. The TR28437 is built with EPDM construction, polyester cord reinforcement, and a notched profile to support consistent operation in heavy-duty accessory drive systems.
