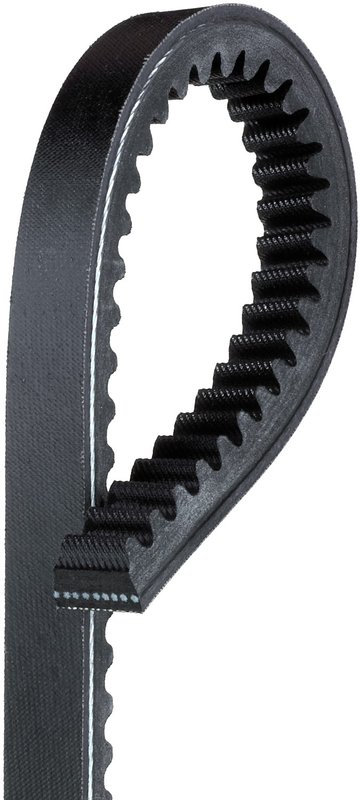

Gates TR28492 Accessory Drive Belt
| Brand | Gates TR28492 |
|---|---|
| Position | Fan, Fan and Hub, Fan and Air Conditioning, Alternator, and Air Conditioning |
| Top Width | .775 |
| Top Width | 20 |
| Construction | Notched |
| Cord Material | Polyester |
| Cross Section Designation | Va |
| Strand Quantity | 1 |
| Effective Length | 1250 |
| Effective Length | 49.22 |
| Outside Circumference | 1267 |
| Outside Circumference | 49.875 |
| Type | Truck & bus v-belt |
| Belt Material | Epdm |
| Angle | 36 |
| 9837 | Yes |
| Angle | 36 |
| Belt Material | Epdm |
| Construction | Notched |
| Cord Material | Polyester |
| Notched | Yes |
| Number of Strands | 1 |
| Section | Va |
| Type | Truck & bus v-belt |
| Fits | — |
Truck and bus series. Built for heavy-duty and off-road accessory drive applications.
Notched construction. Helps the belt absorb normal shock loads without damage.
EPDM belt material. Resists wear in demanding accessory drive systems.
Cross-references Anchor 9480, Anchor 300118 and AP Exhaust 28502 for the same application. See all 177.
Truck & Bus V-Belt for Heavy-Duty Drive Systems
The Gates TR28492 is a Truck & Bus V-Belt built for heavy-duty truck, bus, and off-road accessory drive systems. It uses a notched EPDM construction with polyester cord to handle normal shock loads while maintaining dependable belt tracking.
For buyers searching for a Gates TR28492 accessory drive belt, this Green Stripe Truck & Bus V-Belt is sized for demanding commercial-duty service and is a direct replacement option for many truck and bus belt applications.
Key Features
- Gates Truck & Bus V-Belt from the Green Stripe series
- Notched construction for flexibility in accessory drive routing
- EPDM belt material for durability in demanding engine environments
- Polyester cord reinforcement for stable load handling
- Cross section designation: VA
- Top width: 0.775 in. / 20 mm
- Effective length: 49.22 in. / 1250 mm
- Outside circumference: 49.875 in. / 1267 mm
- 36-degree angle profile
Product Details
Gates TR28492 is engineered as a single-strand accessory drive belt for heavy-duty truck and bus use. The notched profile improves flexibility around pulleys, while the EPDM construction and polyester cord support consistent operation in accessory drive systems that see frequent load changes. This part cross-references Dayco 28490 for the same application.
When you need a Gates TR28492 replacement belt for truck and bus service, this part is built around the dimensions and construction details that matter most for fit and belt stability. It is also listed among interchange references used across commercial vehicle and equipment applications.
Common Problems This Belt Can Address
- Squealing or slipping accessory drive belt
- Cracking, glazing, or visible wear on the belt ribs
- Loss of belt tension from age-related stretch
- Drive belt noise during engine load changes
- Reduced belt stability in heavy-duty truck and bus service
Installation Notes and Tips
Verify belt length, top width, and angle against the existing belt before installation. Inspect pulleys, tensioners, and accessory drive components for wear or misalignment, since those conditions can shorten belt life. Confirm the routing matches the vehicle’s belt path before starting the engine.
Compatible With truck, bus, and off-road equipment applications that use the specified Gates TR28492 dimensions. For fitment-based searches, this part is commonly referenced for heavy-duty accessory drive belt replacement on commercial vehicles, including truck and bus platforms.
Quality Assurance
Gates designs the Truck & Bus V-Belt line for heavy-duty service where shock loads and accessory drive demands are part of normal operation. The Green Stripe series is built to support dependable performance in commercial truck and bus environments.
