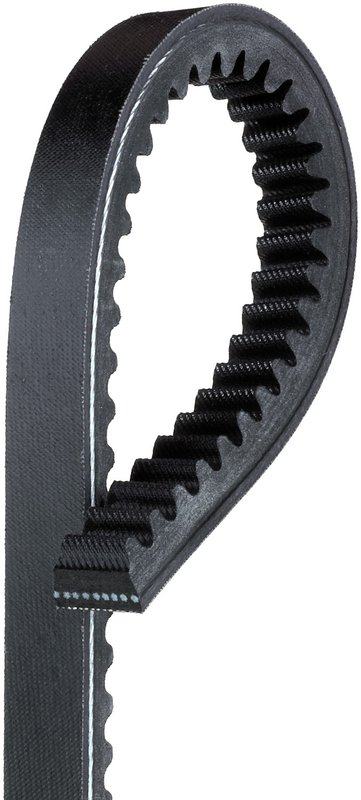

Gates TR28583 Accessory Drive Belt - Air Conditioning
| Brand | Gates TR28583 |
|---|---|
| Position | Air Conditioning |
| Top Width | .775 |
| Top Width | 20 |
| Construction | Notched |
| Cord Material | Polyester |
| Cross Section Designation | Va |
| Strand Quantity | 1 |
| Effective Length | 1480 |
| Effective Length | 58.25 |
| Outside Circumference | 1495 |
| Outside Circumference | 58.875 |
| Type | Truck & bus v-belt |
| Belt Material | Epdm |
| Angle | 36 |
| 9837 | Yes |
| Angle | 36 |
| Belt Material | Epdm |
| Construction | Notched |
| Cord Material | Polyester |
| Notched | Yes |
| Number of Strands | 1 |
| Section | Va |
| Type | Truck & bus v-belt |
| Fits | — |
Truck and bus series. Built for heavy-duty accessory drive applications.
Notched construction. Helps the belt flex smoothly under load.
EPDM belt material. Resists wear in demanding operating conditions.
Cross-references AP Exhaust 7575, Carlson 7580 and Continental 49849 for the same application. See all 143.
Truck & Bus V-Belt for Heavy-Duty Drive Systems
The Gates TR28583 is a Truck & Bus V-Belt built for accessory drive systems in heavy-duty trucks, buses, and off-road equipment. Its notched construction and EPDM belt material help it handle normal shock loads while maintaining consistent drive performance.
For buyers searching for a Gates TR28583 replacement belt, this Green Stripe Truck & Bus Series option is sized for demanding accessory drive applications and is commonly cross-referenced in heavy-duty service parts catalogs. It is also a direct search match for truck and bus V-belt replacement needs on equipment using the VA section profile.
Key Features
- Gates Truck & Bus V-Belt from the Green Stripe series
- Part number TR28583
- Notched construction for flexible operation in accessory drive systems
- EPDM belt material for heavy-duty service use
- Polyester cord material for stable belt reinforcement
- VA cross section with a 36-degree angle
- Top width: 0.775 in. / 20 mm
- Effective length: 58.25 in. / 1480 mm
- Outside circumference: 58.875 in. / 1495 mm
Product Details
Gates TR28583 is engineered for truck, bus, and off-road accessory drive systems where belt durability and consistent power transfer matter. The notched profile supports smoother flexing around pulleys, while the EPDM construction and polyester cord help the belt withstand normal shock loading in demanding service. If you are sourcing a Gates TR28583 for fleet maintenance or a heavy-duty belt replacement, this part is built around the dimensions and section profile used in many commercial drive applications.
This part cross-references Dayco 28580 for the same application.
Common Problems This Belt Can Address
- Squealing or slipping accessory drive belts
- Cracking, glazing, or visible wear on an existing V-belt
- Loss of belt tension in heavy-duty truck and bus drive systems
- Inconsistent operation of belt-driven accessories
- Replacement needs for worn truck and bus V-belt service parts
Installation Notes and Tips
Verify belt length, section, and pulley alignment before installation. Confirm the accessory drive system uses a VA-profile Truck & Bus V-Belt with the listed dimensions: 0.775-inch top width, 58.25-inch effective length, and 58.875-inch outside circumference. After installation, inspect belt tracking and recheck tension according to the vehicle or equipment service procedure.
Compatible With heavy-duty truck, bus, and off-road equipment accessory drive applications. For search relevance, this Gates TR28583 belt is often referenced alongside truck and bus maintenance queries and heavy-duty belt replacement needs.
Quality Assurance
Gates manufactures the Truck & Bus V-Belt line for heavy-duty service applications, with construction choices aimed at handling shock loads in commercial equipment use. Part number TR28583 is part of the Gates Green Stripe Truck and Bus Series.
