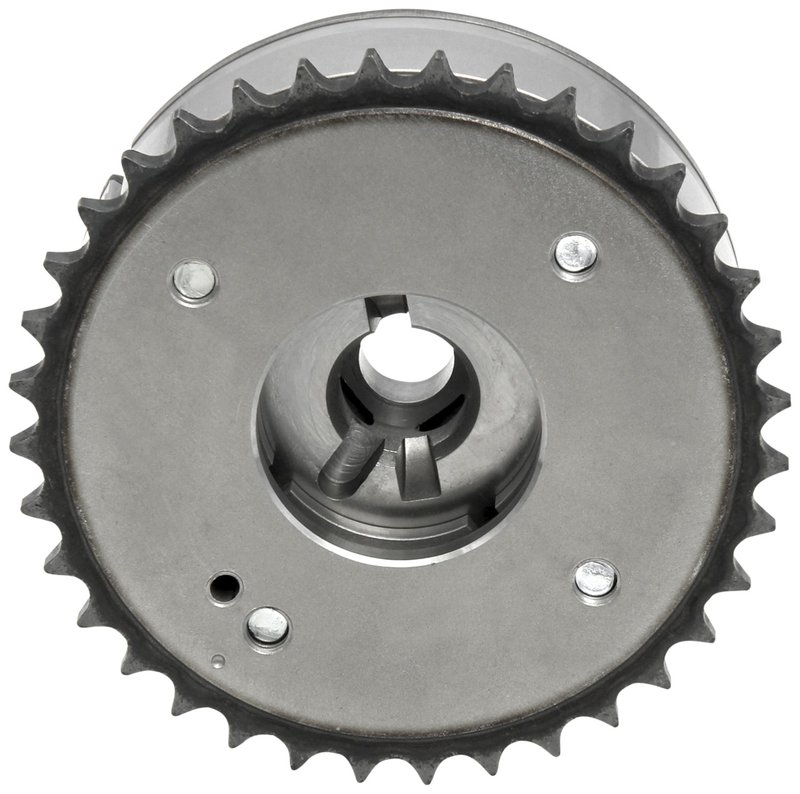

Gates VCP809 Engine Variable Valve Timing (VVT) Sprocket - Intake
OE Quality 60-Day Returns
Gates
 Engine Variable Valve Timing Sprocket

Gates VCP809 Engine Variable Valve Timing (VVT) Sprocket - Intake

Brand Gates VCP809
Position Intake
Chain Row Quantity 1
Drive Timing Chain
Drive Type Timing Chain
Housing Material Steel
Mounting Bolt No
Mounting Bolt Quantity 0
Mounting Hardware Included No
Mounting Hole Quantity 1
OE Comparison Rating OE Exact
Outside Diameter 3.667
Overall Diameter (in) 3.667
Overall Height 1.492
Overall Height (in) 1.492
Tooth Quantity 36
Tooth Thickness .163
Tooth Thickness (in) - Row 1 .163
Product line Engine Variable Valve Timing Sprocket
Fits Toyota and Scion · 37 vehicles

OE exact replacement. Designed to OE specifications in fit, form and performance.

Steel housing. Built from durable materials for long service life.

Timing chain drive. Restores precise valve timing for better fuel economy and power.

Cross-references Dorman - OE Solutions 917-256, Spectra Premium CSP1016 and Standard Ignition VVT530 for the same application. See all 10.

$248.11Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $248.11
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Variable Valve Timing (VVT) Sprocket options

OE-Style VVT Sprocket for Toyota and Scion

The Gates VCP809 is an engine variable valve timing sprocket built to OE specifications for fit, form, and performance. It is designed for intake-side applications on select Toyota Corolla, Toyota Matrix, Scion xD, and Prius models, with a steel housing and timing-chain drive for dependable operation.

Gates’ Engine Variable Valve Timing Sprocket line focuses on OE performance replacement parts for cam phaser and cam actuator applications. The VCP809 follows that product-line approach with materials and dimensions matched for direct replacement service on the listed vehicles.

Key Features

  • OE Exact comparison rating for factory-style replacement fit
  • Timing chain drive with 36 teeth and 0.163 in tooth thickness
  • Steel housing for durability in engine valvetrain service
  • Outside diameter: 3.667 in; overall height: 1.492 in
  • Intake position application on listed Toyota and Scion models
  • Designed to restore proper variable valve timing operation

Detailed Description

The Gates VCP809 variable valve timing sprocket is engineered for engines that use a chain-driven cam timing system and intake-side VVT control. Built to OE specifications, it is intended to match the original component’s fit and operating characteristics on 2009-2013 Toyota Matrix, 2009-2012 Toyota Corolla, 2013-2019 Toyota Corolla, 2013-2014 Scion xD, and select 2012 Prius applications. If you are searching for a Toyota Corolla intake VVT sprocket or a Scion xD cam phaser replacement, this part number provides a direct-match service option.

This part cross-references Dorman OE Solutions 917-256 for the same application.

What It Helps Address

  • Rough idle caused by worn variable valve timing components
  • Loss of engine response from incorrect cam timing control
  • Reduced fuel economy linked to VVT performance issues
  • Check engine lights related to cam timing or actuator faults
  • Emissions concerns caused by inconsistent valve timing

Installation Notes and Tips

Verify engine code, intake position, and model year before ordering. This VVT sprocket uses a timing-chain drive and is listed with no mounting hardware included, so inspect related timing components, seals, and chain condition during service. Proper cam timing alignment is critical during installation, especially on Toyota Corolla, Toyota Matrix, and Scion xD intake applications.

  • Fits 2013-2019 Toyota Corolla, Intake
  • Fits 2009-2012 Toyota Corolla, Intake, U.S./Canada
  • Fits 2009-2013 Toyota Matrix, Intake
  • Fits 2013-2014 Scion xD, Intake
  • Fits 2012 Toyota Prius, N/A
  • Fits 2012 Toyota Prius Plug-In, N/A
  • Fits 2012 Toyota Prius V, N/A

Quality Assurance

Gates designs this engine variable valve timing sprocket to OE specifications and tests it to help restore engine performance, fuel economy, power delivery, and emissions control on the listed applications. Part number VCP809 is built as an OE-style replacement for service work where factory-level fit and function are required.

Related reading

This part fits 37 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersFuel TypePositionNotes
2019ToyotaCorolla—1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2018ToyotaCorollaSE Plus1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2018ToyotaCorollaCE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2018ToyotaCorollaL1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2018ToyotaCorollaLE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2018ToyotaCorollaSE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2018ToyotaCorollaXSE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2018ToyotaCorollaXLE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2017ToyotaCorollaXSE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2017ToyotaCorollaL1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2017ToyotaCorollaLE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2017ToyotaCorollaXLE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2017ToyotaCorollaSE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2016ToyotaCorollaS1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2016ToyotaCorollaLE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2016ToyotaCorollaL1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2015ToyotaCorollaL1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2015ToyotaCorollaLE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2015ToyotaCorollaS1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2014ScionxD—1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2014ToyotaCorollaLE1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2014ToyotaCorollaS1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2014ToyotaCorollaL1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2013ScionxD—1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2013ToyotaCorolla—1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2013ToyotaMatrix—1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2012ToyotaCorolla—1.8LL4GASIntakeU.S./Canada; Engine Variable Valve Timing Sprocket
2012ToyotaMatrix—1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2012ToyotaPrius—1.8LL4ELECTRIC/GASN/AEngine Variable Valve Timing Sprocket
2012ToyotaPrius Plug-In—1.8LL4ELECTRIC/GASN/AEngine Variable Valve Timing Sprocket
2012ToyotaPrius V—1.8LL4ELECTRIC/GASN/AEngine Variable Valve Timing Sprocket
2011ToyotaCorolla—1.8LL4GASIntakeU.S./Canada; Engine Variable Valve Timing Sprocket
2011ToyotaMatrix—1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2010ToyotaCorolla—1.8LL4GASIntakeU.S./Canada; Engine Variable Valve Timing Sprocket
2010ToyotaMatrix—1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
2009ToyotaCorolla—1.8LL4GASIntakeU.S./Canada; Engine Variable Valve Timing Sprocket
2009ToyotaMatrix—1.8LL4GASIntakeEngine Variable Valve Timing Sprocket
Directly replaces or cross-references 10 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 917-256Spectra Premium — CSP1016Standard Ignition — VVT5307V-4001P130500T010130500T011130500T021130500T0501305037060VV5030
