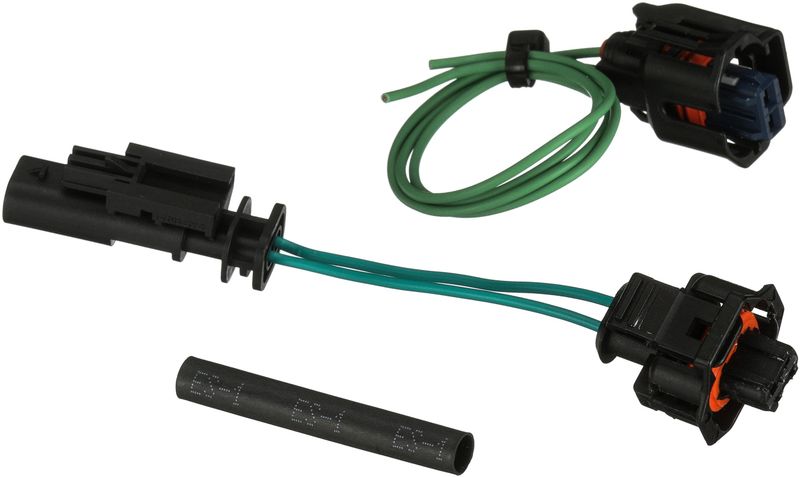

Gates VVS205H Engine Variable Valve Timing (VVT) Wiring Harness

Gates VVT Harness for Ford Applications

The Gates VVS205H engine variable valve timing harness is built for Ford engines that need a direct OE-style electrical connection at the VVT system. It uses a 2-wire layout with a single oval male connector, blade terminals, and female terminal ends to support a secure, factory-style interface.

Engine Variable Valve Timing Harnesses is Gates’ product line for OE-spec form, fit, and performance. This harness is built with high-quality materials and protective tubing to help maintain durability and service life in demanding engine bay conditions.

• OE-spec form, fit, and performance for VVT wiring service
• 2-wire harness with 1 oval male connector
• Blade terminal type with female terminal ends
• Protective tubing for added durability
• Direct replacement style for Ford engine VVT electrical connections

Detailed Product Overview

The Gates VVS205H is an engine variable valve timing wiring harness designed for Ford F-150, F-250 Super Duty, F-350 Super Duty, Mustang, and F-350 applications across the listed model years. It is built to match OE specifications in form, fit, and performance, making it a practical choice when servicing the VVT circuit on Ford engines. If you are searching for a Ford F-150 VVT harness replacement or a Ford Mustang engine variable valve timing harness, this part number is a direct reference to the correct OE-style configuration.

This part cross-references Ford BU2Z 14S411 AYA for the same application. The Gates VVS205H part number is also useful when verifying an engine variable valve timing harness for 2011-2020 Ford F-150, 2011-2020 Ford F-250 Super Duty, and 2011-2020 Ford Mustang applications.

What It Helps Address

• Damaged or brittle VVT wiring at the engine harness connection
• Intermittent electrical contact at the variable valve timing circuit
• Connector wear at the oval male plug interface
• Service needs on Ford engine management wiring tied to VVT operation
• OE-style replacement requirements for Ford F-150, F-250 Super Duty, F-350 Super Duty, and Mustang models

Installation Notes and Tips

Verify connector shape, terminal style, and engine-side routing before installation. Match the harness to the vehicle year and model listed in the fitment data, including 2011-2020 Ford F-150, 2011-2020 Ford F-250 Super Duty, 2011-2020 Ford F-350 Super Duty, 2011-2020 Ford Mustang, 2013-2016 Ford F-350, and 2011 Ford F-350. Confirm the existing connector is an oval male style with blade terminals and female terminal ends before replacing the original harness.

Quality Assurance

Gates designs this Engine Variable Valve Timing Harness line to OE specifications and uses protective tubing plus quality materials to support durability and service life. The VVS205H follows that OE-style approach for Ford engine VVT wiring service.
