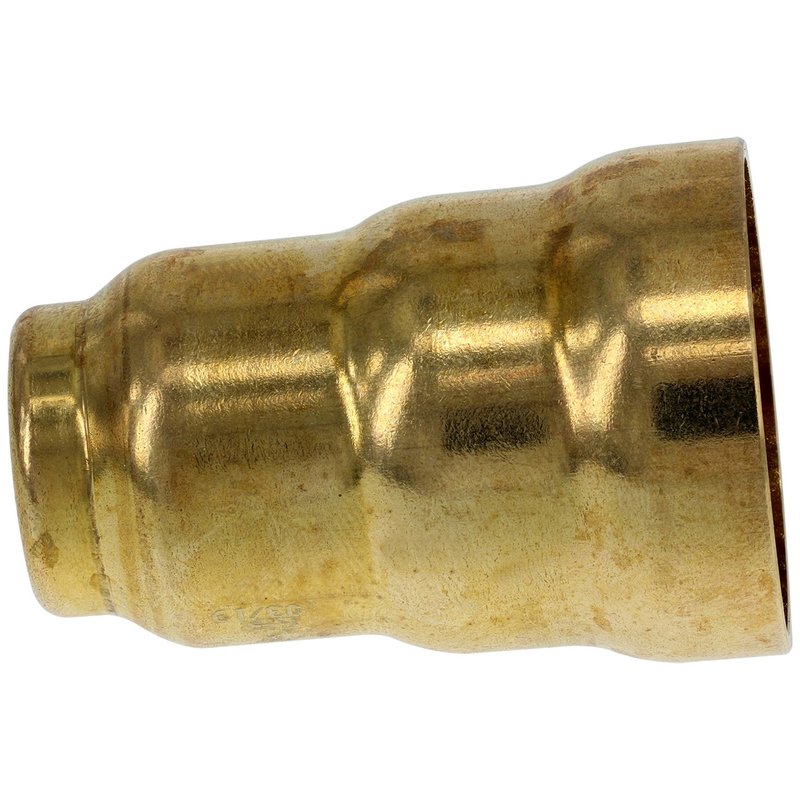

GBR 522-013 Fuel Injector Sleeve

Fuel Injector Sleeve for Ford Diesel Applications

GBR Fuel Injector Sleeve 522-013 is a direct-fit diesel injector sleeve for select Ford trucks and vans. It helps maintain sealing and cooling between the fuel injector and cylinder head, supporting stable fuel system operation in high-heat diesel service.

Compatible With Ford E-350 Club Wagon, E-350 Super Duty, Excursion, F-250 Super Duty, F-350 Super Duty, E-350 Econoline Club Wagon, E-350 Econoline, F-250 HD, F-350, and F-250 diesel applications.

• Restores the sealing surface between the injector and cylinder head
• Supports injector cooling in diesel fuel system service
• Helps reduce combustion gas intrusion into the fuel system
• Helps reduce coolant leakage into the fuel system
• Built for service on Ford diesel engine injector locations

Product Details

The GBR Fuel Injector Sleeve, part number 522-013, is used at the injector bore to maintain a proper seal and heat transfer path between the diesel injector and the cylinder head. When the sleeve is worn or damaged, sealing problems can contribute to misfire, coolant contamination, and injector damage. This sleeve is a practical replacement during injector service on Ford E-350, F-250, F-350, and Excursion diesel platforms.

This part cross-references 1814376C1 and F4TZ9F538A for the same application. The GBR Fuel Injector Sleeve line focuses on service parts that support correct injector sealing and cooling in diesel engine maintenance.

Common Problems Addressed

• Combustion gas leakage around the injector bore
• Coolant leakage into the fuel system
• Diesel engine misfire related to injector sealing issues
• Injector wear caused by poor cooling at the sleeve interface
• Repeat injector service caused by a damaged sleeve

Installation Notes

Install during injector replacement or injector service when the original sleeve shows wear, corrosion, or sealing damage. Clean the injector bore and cylinder head sealing area thoroughly before installation, and verify the sleeve seats correctly before reassembly. Confirm vehicle application by year, make, and model before ordering.

Quality Assurance

GBR supplies replacement hardware for diesel fuel system service with application-specific fitment for Ford trucks and vans. Part number 522-013 is listed for multiple Ford diesel platforms, including 1994-2003 Ford F-250, F-350, E-350, and Excursion applications.
