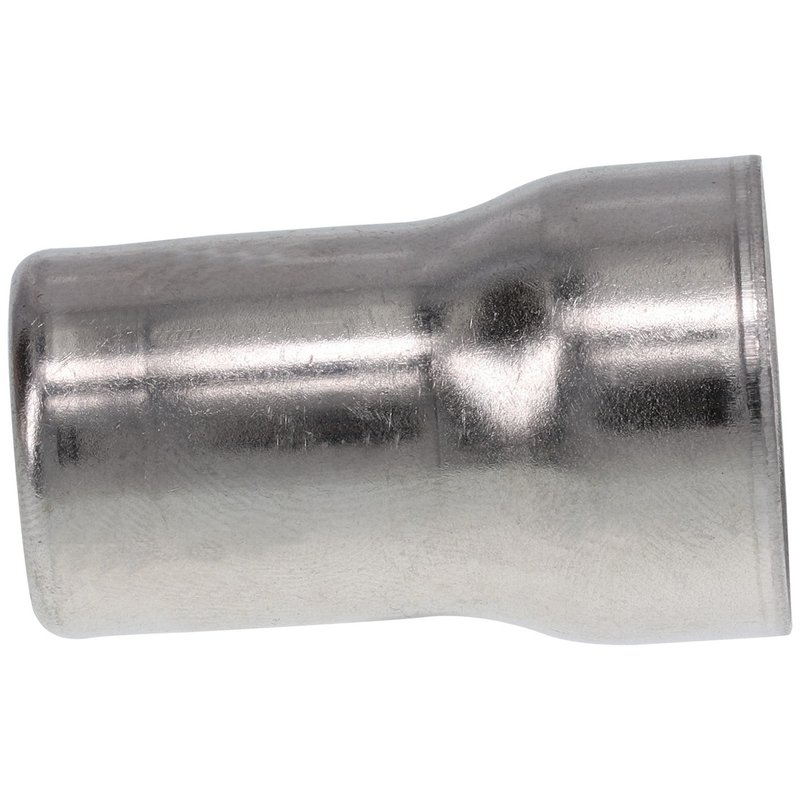

GBR 522-045 Fuel Injector Sleeve

Fuel Injector Sleeve for Ford Super Duty Diesel Service

GBR Fuel Injector Sleeve Part Number 522-045 is a direct-fit diesel injector sleeve for select Ford Super Duty applications. It helps maintain the seal and cooling path between the fuel injector and cylinder head, supporting stable fuel system operation during injector service.

Fits 2008-2010 Ford F-250 Super Duty, Fuel Injector Sleeve. Fits 2008-2010 Ford F-350 Super Duty, Fuel Injector Sleeve.

Key Features

• Fuel injector sleeve for diesel engine service
• Supports sealing between the injector and cylinder head
• Helps manage heat transfer at the injector bore
• Direct application for 2008-2010 Ford F-250 Super Duty and F-350 Super Duty
• GBR Part Number 522-045 for service matching and lookup

Application Details

This injector sleeve is used in diesel fuel system repair where the injector bore must seal correctly against combustion pressure and coolant passages. When the sleeve is worn, damaged, or not sealing properly, combustion gas or coolant can enter the fuel system and contribute to misfire, injector damage, and hard-running conditions. Part Number 522-045 is listed for 2008-2010 Ford F-250 Super Duty and 2008-2010 Ford F-350 Super Duty diesel applications.

This part cross-references Ford OE number 8C3Z9N951A for the same application.

Common Issues It May Address

• Fuel injector bore sealing concerns
• Coolant intrusion into the fuel system
• Combustion gas leakage around the injector
• Diesel engine misfire related to injector sealing
• Injector wear caused by poor sealing or heat transfer

Installation Notes

Replace the sleeve during injector service or injector replacement to help restore proper sealing at the cylinder head. Clean the injector bore and surrounding surfaces before installation, and verify the bore is free of damage or contamination that could affect the seal. Confirm vehicle application by year, make, and model before ordering Part Number 522-045.

Quality Assurance

GBR supplies this fuel injector sleeve as a service part for diesel injector sealing and cooling applications. Proper sleeve replacement supports reliable injector operation in Ford Super Duty diesel service.
