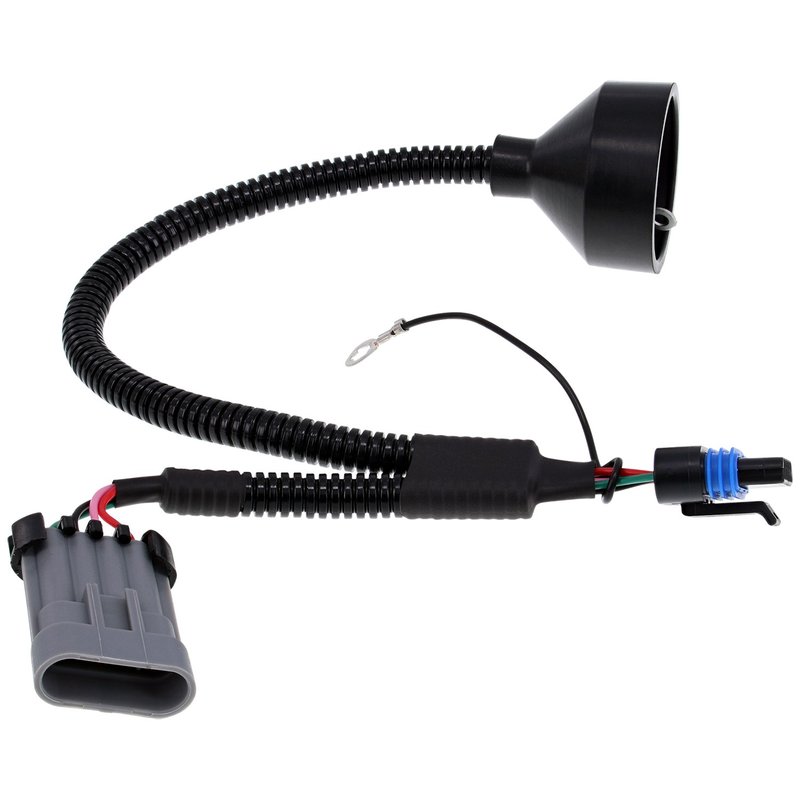

GBR 522-047 Fuel Pump Driver Module Connector

Pump Mounted Driver Harness for GM Fuel Systems

GBR 522-047 is a pump mounted driver harness for fuel system electrical connections. It links the pump, vehicle harness, and pump mounted driver to support proper signal transfer in the fuel delivery circuit.

Key Features

• Fuel pump driver module connector harness for air and fuel delivery electrical repair
• Connects between the pump, vehicle harness, and pump mounted driver
• Fits a wide range of Chevrolet and GMC trucks, vans, and SUVs from 1994-2002
• Application-specific fitment for GM fuel system service
• GBR part number 522-047 for catalog and service matching

Detailed Description

This GBR Pump Mounted Driver Harness is built for GM fuel system applications that use a pump mounted driver connection. It is a direct-fit electrical connector solution for service work on Chevrolet Express 2500, Chevrolet Express 3500, GMC Savana 2500, GMC Savana 3500, Chevrolet C/K trucks, Suburban, Tahoe, Yukon, Blazer, and related platforms. The harness supports the connection path between the fuel pump, the vehicle harness, and the pump mounted driver, making it a practical replacement for damaged or worn connector assemblies. Part number 522-047 is the reference to use when matching this harness to the correct application.

Vehicle Fitment

• Fits 1996-2002 Chevrolet Express 2500, Pump Mounted Driver Harness
• Fits 1996-2002 Chevrolet Express 3500, Pump Mounted Driver Harness
• Fits 1996-2002 GMC Savana 2500, Pump Mounted Driver Harness
• Fits 1996-2002 GMC Savana 3500, Pump Mounted Driver Harness
• Fits 1994-2000 Chevrolet C2500, Pump Mounted Driver Harness
• Fits 1994-2000 Chevrolet C3500, Pump Mounted Driver Harness
• Fits 1994-2000 Chevrolet K2500, Pump Mounted Driver Harness
• Fits 1994-2000 Chevrolet K3500, Pump Mounted Driver Harness
• Fits 1994-2000 GMC C2500, Pump Mounted Driver Harness
• Fits 1994-2000 GMC C3500, Pump Mounted Driver Harness
• Fits 1994-2000 GMC K2500, Pump Mounted Driver Harness
• Fits 1994-2000 GMC K3500, Pump Mounted Driver Harness
• Fits 1995-1999 Chevrolet C1500 Suburban, Pump Mounted Driver Harness
• Fits 1994-1999 Chevrolet C2500 Suburban, Pump Mounted Driver Harness
• Fits 1995-1999 Chevrolet K1500 Suburban, Pump Mounted Driver Harness
• Fits 1994-1999 Chevrolet K2500 Suburban, Pump Mounted Driver Harness
• Fits 1994-1999 Chevrolet P30, Pump Mounted Driver Harness
• Fits 1995-1999 Chevrolet Tahoe, Pump Mounted Driver Harness
• Fits 1995-1999 GMC C1500 Suburban, Pump Mounted Driver Harness
• Fits 1994-1999 GMC C2500 Suburban, Pump Mounted Driver Harness
• Fits 1995-1999 GMC K1500 Suburban, Pump Mounted Driver Harness
• Fits 1994-1999 GMC K2500 Suburban, Pump Mounted Driver Harness
• Fits 1994-1999 GMC P3500, Pump Mounted Driver Harness
• Fits 1994-1998 Chevrolet C1500, Pump Mounted Driver Harness
• Fits 1994-1998 Chevrolet K1500, Pump Mounted Driver Harness
• Fits 1994-1998 GMC K1500, Pump Mounted Driver Harness
• Fits 1994-1997 GMC C1500, Pump Mounted Driver Harness
• Fits 1994-1997 GMC Yukon, Pump Mounted Driver Harness
• Fits 1994-1996 Chevrolet G30, Pump Mounted Driver Harness
• Fits 1994-1996 GMC G3500, Pump Mounted Driver Harness
• Fits 1994-1995 Chevrolet G20, Pump Mounted Driver Harness
• Fits 1994-1995 GMC G2500, Pump Mounted Driver Harness
• Fits 1994 Chevrolet Blazer, Pump Mounted Driver Harness

Common Repair Uses

• Repairing a damaged fuel pump driver module connector
• Restoring electrical continuity between the pump and vehicle harness
• Replacing brittle, corroded, or heat-affected connector wiring
• Addressing intermittent fuel delivery electrical faults
• Servicing GM trucks, vans, and SUVs with pump mounted driver systems

Installation Notes and Tips

Verify the vehicle year, make, and model against the fitment list before ordering. Inspect the existing connector, terminals, and adjacent wiring for heat damage, corrosion, or broken locking features before installation. Confirm the pump mounted driver style on the vehicle so the harness matches the original connection layout. This part cross-references no listed alternate part numbers in the provided data.

Quality Assurance

GBR markets this as a premium harness for the specified GM fuel system applications. Part number 522-047 is the identifier to use when confirming the correct pump mounted driver harness for Chevrolet and GMC service work.
