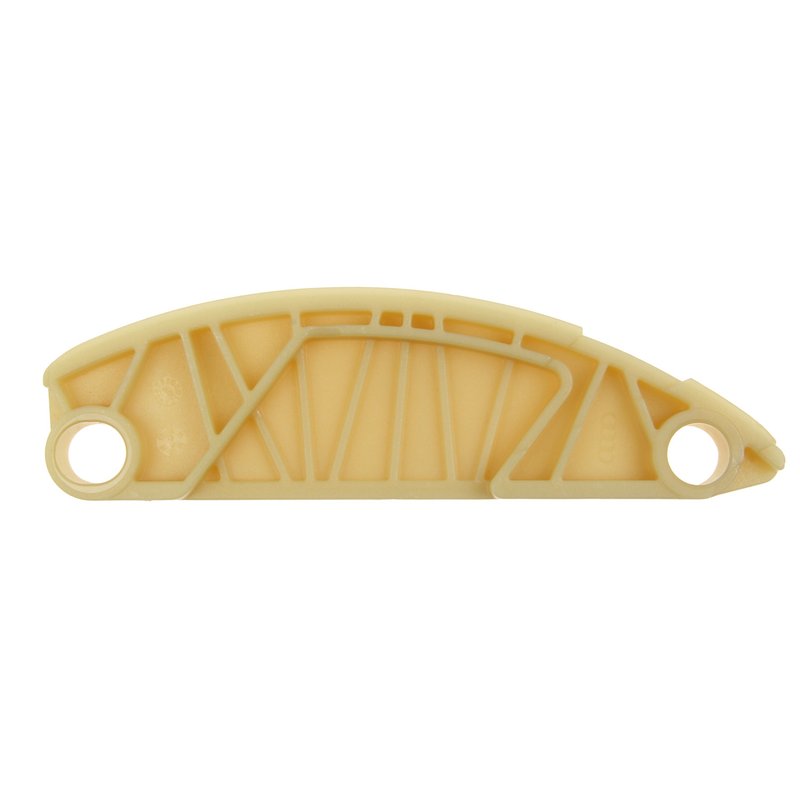

Genuine 06H109469AN Engine Timing Chain Guide - Inner
OE Quality 60-Day Returns
Genuine

Genuine 06H109469AN Engine Timing Chain Guide - Inner

Brand Genuine 06H109469AN
Position Inner
Fits Audi and Volkswagen · 13 vehicles

OE direct replacement. Matches the original timing chain guide for straightforward service.

Engine timing chain guide for precise chain control and alignment.

$36.23Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $36.23
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Chain Guide options

OE Timing Chain Guide for 2.0L Engines

Genuine part number 06H109469AN is an engine timing chain guide for the slack side of the timing system. It is listed for select Audi A3, Audi A4, Volkswagen CC, Eos, GTI, Jetta, and Passat applications with 2.0L engines where the inner guide position is specified.

Key Features

  • Genuine OE replacement timing chain guide
  • Inner, slack-side guide location
  • Direct fit for select 2008-2009 Audi and Volkswagen 2.0L applications
  • Part number 06H109469AN for accurate ordering and service matching
  • Built for timing chain routing and guide alignment in the valve train system

Detailed Description

This engine timing chain guide is used in the valve train system to support proper chain path control on the slack side. Part number 06H109469AN is listed for 2008 Audi A3, 2009 Audi A3, 2009 Audi A3 Quattro, 2009 Audi A4, 2009 Audi A4 Quattro, 2008-2009 Volkswagen GTI, 2008 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Passat, 2009 Volkswagen CC, and 2009 Volkswagen Eos applications with the specified inner position and 2.0L notes where shown. If you are replacing a worn Audi A3 timing chain guide or sourcing a Volkswagen GTI slack-side guide, this OE part number helps match the original service application.

Common Issues This Part Addresses

  • Timing chain noise from a worn slack-side guide
  • Chain misalignment caused by guide wear
  • Valve timing instability related to guide deterioration
  • Rattling or ticking from the timing chain area
  • Service replacement for damaged inner timing chain guide surfaces

Installation Notes

Verify engine code, model year, and the inner slack-side position before installation. Confirm the vehicle listing against the exact fitment notes, especially the date cutoffs shown for Audi A3, Audi A4, and Volkswagen Jetta applications. Inspect the timing chain system for related wear before reassembly, and follow factory service procedures for torque and timing alignment.

Quality Assurance

Genuine OE-style part identification helps ensure the correct service match for the listed Audi and Volkswagen applications. Part number 06H109469AN is cataloged for direct fit verification against the original timing chain guide application.

Related reading

This part fits 13 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2009AudiA3——InnerSlack Side; Thru 5/9/2009
2009AudiA3 Quattro——Inner2.0L; Slack Side; Thru 5/9/2009
2009AudiA4——InnerSlack Side; Thru 5/18/2009
2009AudiA4 Quattro——Inner2.0L; Slack Side; Thru 5/18/2009
2009VolkswagenCC——InnerEngine Timing Chain Guide for 2.0L engine with slack side.
2009VolkswagenEos——InnerEngine Timing Chain Guide for 2.0L engine with slack side.
2009VolkswagenGTI——InnerEngine Timing Chain Guide for the slack side of the engine.
2009VolkswagenJetta——Inner2.0L; Slack Side; Thru 5/31/2009
2009VolkswagenJetta2.0LL4Inner2.0L; Slack Side; Thru 5/31/2009
2008AudiA3——InnerEngine Timing Chain Guide for the slack side of the engine.
2008VolkswagenGTI——InnerEngine Timing Chain Guide for the slack side of the engine.
2008VolkswagenJetta——InnerEngine Timing Chain Guide for 2.0L engine with slack side.
2008VolkswagenPassat——InnerEngine Timing Chain Guide for 2.0L engine with slack side.
