Genuine LR011064 Engine Timing Chain Guide Bolt
OE Quality 60-Day Returns
Genuine

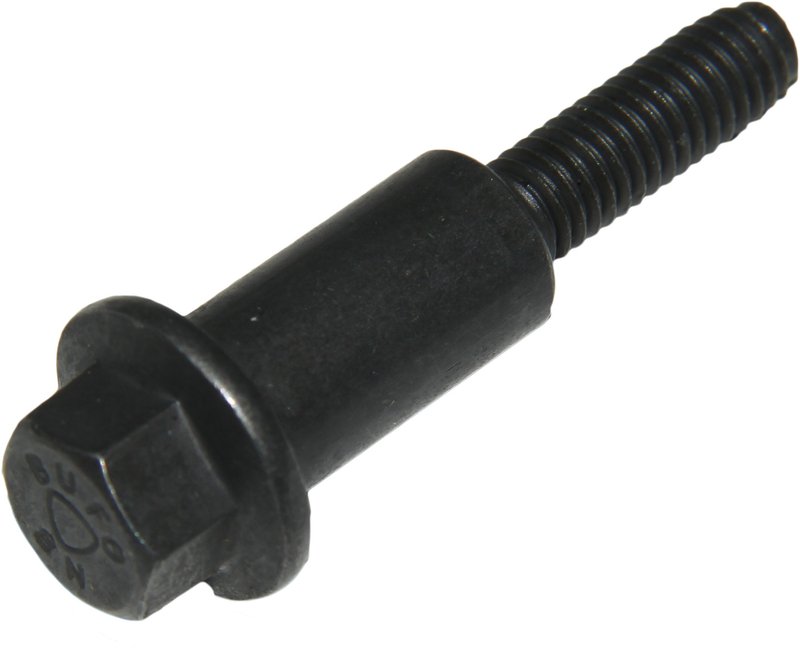

Genuine LR011064 Engine Timing Chain Guide Bolt

Brand Genuine LR011064
Fits Land Rover · 18 vehicles

OE direct replacement. Engine timing chain guide bolt for straightforward service fitment.

Hardware and fittings part for secure engine timing chain guide attachment.

$12.76Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $12.76
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Timing Chain Guide Bolt options

Engine Timing Chain Guide Bolt for Land Rover

This Genuine engine timing chain guide bolt, part number LR011064, is a direct-fit hardware component for timing chain service on select Land Rover engines. It is used on the primary slack-side timing chain guide in Range Rover, Range Rover Sport, and LR4 applications.

Key Features

  • Genuine OEM-style engine hardware
  • Part number LR011064
  • Used on the primary slack-side timing chain guide
  • Fits select 2010-2016 Land Rover Range Rover models
  • Fits select 2010-2016 Land Rover Range Rover Sport models
  • Fits select 2010-2013 Land Rover LR4 models

Detailed Description

LR011064 is an engine timing chain guide bolt specified for the primary slack-side guide in compatible Land Rover timing systems. This hardware is used during timing chain service where secure guide retention is critical to maintaining proper chain routing and tension control. For buyers searching for a Land Rover Range Rover timing chain guide bolt, a Range Rover Sport engine hardware replacement, or an LR4 timing chain service fastener, LR011064 matches the listed applications.

Compatible With 2010-2016 Land Rover Range Rover, N/A; 2010-2016 Land Rover Range Rover Sport, N/A; and 2010-2013 Land Rover LR4, N/A. This part cross-references no additional part numbers listed here.

What It Helps Address

  • Loose or damaged timing chain guide fastener
  • Timing service requiring replacement engine hardware
  • Improper guide retention at the primary slack side
  • Noise or wear concerns related to timing chain guide mounting

Installation Notes and Tips

Verify engine code and VIN-based fitment before installation. Inspect the timing chain guide, mounting surface, and adjacent hardware for wear or damage during service. Follow the vehicle service manual for torque specifications and installation sequence when replacing LR011064.

Quality Assurance

Genuine parts are sourced to match the specified OE application for Land Rover timing system service. Part number LR011064 is listed for the confirmed Range Rover, Range Rover Sport, and LR4 fitments shown above.

This part fits 18 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2016Land RoverRange Rover5.0LV8N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2016Land RoverRange Rover Sport5.0LV8N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2015Land RoverRange Rover5.0LV8N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2015Land RoverRange Rover Sport5.0LV8N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2014Land RoverRange Rover5.0LV8N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2014Land RoverRange Rover Sport5.0LV8N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2013Land RoverLR4——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2013Land RoverRange Rover——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2013Land RoverRange Rover Sport——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2012Land RoverLR4——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2012Land RoverRange Rover——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2012Land RoverRange Rover Sport——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2011Land RoverLR4——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2011Land RoverRange Rover——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2011Land RoverRange Rover Sport——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2010Land RoverLR4——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2010Land RoverRange Rover——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
2010Land RoverRange Rover Sport——N/AEngine Timing Chain Guide Bolt; Primary - Slack Side
