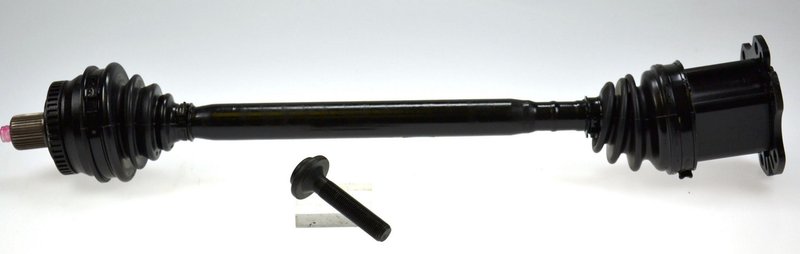

GKN Loebro 304288 CV Axle Assembly - Front Right

Overview of GKN Loebro CV Axle Assembly 304288

The GKN Loebro CV Axle Assembly 304288 is engineered for reliable driveline performance in Audi A4 Quattro models. Designed to meet precise specifications, this CV axle assembly ensures smooth power transfer and durability under various driving conditions.

• Compressed length: 25.125 inches for exact fitment
• Outboard spline quantity: 38 splines for secure connection
• Includes axle nut with M16x1.5 thread size
• Inboard joint type: Plunging joint AAR with 6 mount holes
• Outboard joint type: Fixed ball joint UF for stable operation
• ABS tone ring with 45 teeth for accurate sensor readings

Technical Details and Specifications

This CV axle assembly (part number 304288) is specifically designed for the Audi A4 Quattro, ensuring compatibility and optimal driveline function. The 25.125-inch compressed length matches factory dimensions, while the 38-spline outboard end provides a secure fit to the wheel hub. The inboard joint features a plunging joint AAR with six mounting holes, allowing for smooth axial movement and flexibility during suspension travel. The fixed ball joint UF on the outboard end maintains consistent rotational stability. Additionally, the integrated ABS tone ring with 45 teeth supports the vehicle’s anti-lock braking system by delivering precise wheel speed data.

Applications and Problem Resolution

This CV axle assembly is used to transfer torque from the transmission to the wheels while accommodating suspension movement. It is compatible with Audi A4 Quattro models requiring a replacement axle assembly matching these specifications.

• Eliminates vibrations caused by worn or damaged CV joints
• Resolves clicking noises during turns due to joint wear
• Restores proper ABS sensor function with the integrated tone ring
• Prevents axle shaft play that can affect vehicle handling
• Addresses axle nut thread damage with included replacement nut

Installation Notes and Tips

When installing the GKN Loebro CV Axle Assembly 304288, ensure the axle nut is torqued to manufacturer specifications using the included M16x1.5 axle nut. Verify the alignment of the inboard and outboard joints to prevent premature wear. Inspect the ABS tone ring and sensor clearance during installation to maintain accurate ABS operation. It is recommended to replace axle seals and inspect suspension components concurrently.

Quality Assurance and Warranty

GKN Loebro manufactures this CV axle assembly to meet OEM standards for fit, form, and function. The part number 304288 undergoes rigorous quality control to ensure durability and performance. While specific warranty details may vary, GKN Loebro products typically include coverage against defects in materials and workmanship. Consult product documentation for exact warranty terms.
