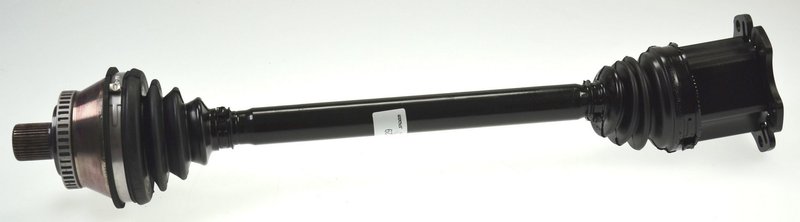

GKN Loebro 304292 CV Axle Assembly - Front Right

Overview of GKN Loebro CV Axle Assembly 304292 for Audi A4

The GKN Loebro CV Axle Assembly part number 304292 is engineered specifically for Audi A4 models. Designed to maintain drivetrain integrity, this CV axle assembly ensures smooth power transfer from the transmission to the wheels, supporting reliable vehicle performance.

• Compressed length: 25.125 inches for precise fitment
• Outboard spline quantity: 38 splines for secure connection
• Axle nut included with M16x1.5f thread size
• Inboard joint type: Plunging joint AAR with 6 mount holes
• Outboard joint type: Fixed ball joint UF
• ABS tone ring with 45 teeth for accurate sensor readings

Technical Details and Specifications

This CV axle assembly features a compressed length of 25.125 inches, ensuring compatibility with the Audi A4 drivetrain layout. The outboard spline quantity of 38 provides a robust interface with the wheel hub, while the included axle nut with M16x1.5f thread size simplifies installation. The inboard joint is a plunging joint AAR type with six mounting holes, allowing for axial movement and accommodating suspension travel. The outboard joint is a fixed ball joint UF, designed for consistent rotational movement. Additionally, the 45-tooth ABS tone ring supports the vehicle’s anti-lock braking system by providing precise wheel speed data.

Compatible Vehicles and Applications

This GKN Loebro CV axle assembly 304292 is compatible with Audi A4 models requiring a 25.125-inch axle length and the specified joint types. It is suitable for addressing drivetrain issues related to axle wear or damage in these vehicles.

• Replaces worn or damaged CV axle assemblies on Audi A4
• Restores smooth power delivery to front wheels
• Eliminates clicking or popping noises during turns
• Resolves vibration issues caused by axle imbalance
• Maintains ABS sensor functionality with integrated tone ring

Installation Notes and Tips

When installing the GKN Loebro CV axle assembly 304292, ensure the axle nut is torqued to manufacturer specifications to maintain secure fitment. Verify the orientation of the plunging inboard joint and fixed outboard joint for proper alignment. Inspect the ABS tone ring and sensor clearance to avoid interference. It is recommended to replace axle nuts and related hardware during installation to ensure safety and reliability.

Quality Assurance and Warranty

GKN Loebro manufactures this CV axle assembly to meet OEM standards for durability and performance. The part number 304292 undergoes rigorous quality control to ensure fitment and function for Audi A4 vehicles. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region.
