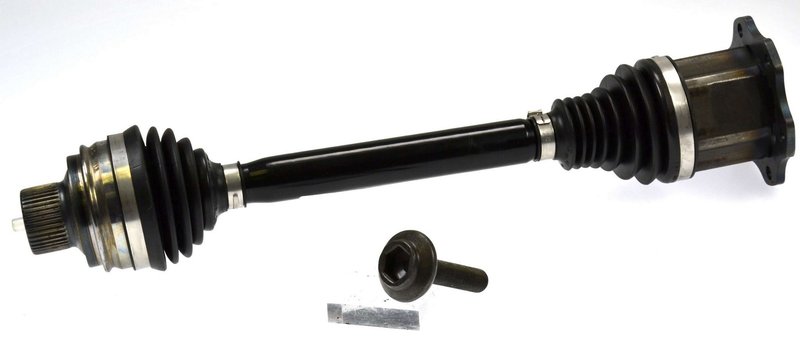

GKN Loebro 305067 CV Axle Assembly - Front Left or Front Right
| Brand | GKN Loebro 305067 |
|---|---|
| Position | Front Left |
| Axle Nut Included | Yes |
| Axle Nut Thread Size | M16x1.5//6x10,5/PCØ:104mm |
| Compressed Length | 19.527 |
| Inboard Joint Mount Hole Quantity | 6 |
| Inboard Joint Type | Plunging Joint AAR |
| Outboard Joint Type | Fix Ball Joint UF |
| Outboard Spline Quantity | 42 |
| Fits | Audi · 4 vehicles |
OE technology. Premium drive-system engineering from a global leader in axle assemblies.
Complete axle assembly. A matched CV axle assembly with integrated joints for a ready-to-install solution.
Axle nut included. Conveniently supplied with the axle nut for a smoother install.
Cross-references 8R0407271, 8R0407271B and 8R0407271BX for the same application. See all 3.
OE-Style CV Axle for Audi Q5
GKN Loebro 305067 is a CV axle assembly built with premium OE technology for precise driveline performance. It is engineered for the front axle on select 2011-2012 Audi Q5 models, with fitment for both front right and front left positions.
Key Features
- CV axle assembly for driveline and axle service
- Fits 2011-2012 Audi Q5, front right
- Fits 2011-2012 Audi Q5, front left
- Compressed length: 19.527
- Outboard spline quantity: 42
- Inboard joint type: Plunging Joint AAR
- Outboard joint type: Fix Ball Joint UF
- Axle nut included
- Axle nut thread size: M16x1.5
Detailed Description
This GKN Loebro CV axle assembly, part number 305067, is built for front-wheel service on the Audi Q5 platform with OE-style geometry and joint design. The assembly uses a 42-spline outboard connection, a plunging inboard joint, and a fixed ball outboard joint to match the demands of the original driveline layout. GKN Automotive supplies driveline solutions for passenger vehicles across combustion, hybrid, and electric applications, and this axle reflects that engineering focus. This part cross-references Audi OE numbers 8R0407271, 8R0407271B, and 8R0407271BX for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn outer CV joint
- Vibration or shudder under acceleration from axle wear
- Grease leakage from a damaged CV boot or joint area
- Excessive play in the front axle assembly
- Driveline noise caused by a fatigued CV axle on an Audi Q5
Installation Notes and Tips
Verify front right or front left application before ordering, since this axle is listed for both positions on 2011-2012 Audi Q5 models. Confirm spline count, axle nut thread size, and overall compressed length against the removed part before installation. Inspect related suspension and hub components for wear, and torque fasteners to the vehicle manufacturer’s specifications during reassembly.
Quality Assurance
GKN Loebro is part of GKN Automotive, a global driveline supplier whose axle assemblies are engineered to OE standards for passenger vehicles and light trucks. Part number 305067 is produced with application-specific joint tuning and dimensional control for the listed Audi Q5 fitment.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2012 | Audi | Q5 | 2.0L | L4 | Front Right | — |
| 2012 | Audi | Q5 | 2.0L | L4 | Front Left | — |
| 2011 | Audi | Q5 | 2.0L | L4 | Front Right | — |
| 2011 | Audi | Q5 | 2.0L | L4 | Front Left | — |
