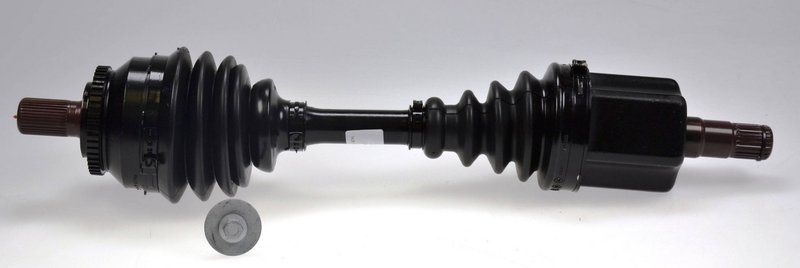

GKN Loebro 305561 CV Axle Shaft - Front Left

Overview of GKN Loebro CV Axle Shaft 305561 for Volvo S60 and V70

The GKN Loebro CV Axle Shaft 305561 is engineered for reliable driveline performance in Volvo S60 and V70 models. Designed with precision, this axle shaft ensures smooth power transfer and durability under various driving conditions.

• Compressed length: 20.748 inches for exact fitment
• Inboard spline quantity: 26 splines for secure connection
• Outboard spline quantity: 36 splines for enhanced torque handling
• Includes axle nut with M10x1.5f thread size
• Inboard joint type: Plunging joint AAR for axial movement
• Outboard joint type: Fixed ball joint UF for stable rotation
• ABS tone ring with 48 teeth for accurate wheel speed sensing

Technical Details and Specifications

This CV axle shaft (part number 305561) is specifically designed to meet the requirements of Volvo S60 and V70 vehicles. The compressed length of 20.748 inches ensures proper alignment and fit within the driveline assembly. The inboard joint features a plunging joint AAR type, allowing for axial movement to accommodate suspension travel, while the outboard joint uses a fixed ball joint UF type to maintain consistent rotational stability. The spline counts—26 on the inboard side and 36 on the outboard—provide secure engagement with the transmission and wheel hub respectively. Additionally, the included axle nut with an M10x1.5f thread size simplifies installation and ensures proper fastening. The integrated ABS tone ring with 48 teeth supports the vehicle’s anti-lock braking system by providing precise wheel speed data.

Compatible Vehicles and Applications

This CV axle shaft is compatible with the following Volvo models:

• Volvo S60
• Volvo V70

It is designed to replace worn or damaged axle shafts in these vehicles, restoring driveline integrity and performance.

Common Issues Addressed by This CV Axle Shaft

• Vibration or clicking noises during turns caused by worn CV joints
• Grease leaks from torn CV boots leading to joint contamination
• Excessive play or looseness in the driveline affecting handling
• ABS sensor errors due to damaged or missing tone rings
• Axle shaft failure resulting in loss of power transfer to wheels

Installation Notes and Tips

When installing the GKN Loebro CV Axle Shaft 305561, ensure the following:

• Verify the compressed length matches the original axle to maintain driveline geometry
• Use the included axle nut with the specified M10x1.5f thread size for proper torque application
• Inspect surrounding components such as wheel bearings and suspension parts for wear
• Confirm the ABS tone ring is properly aligned to avoid sensor errors
• Follow manufacturer torque specifications for all fasteners

Quality Assurance and Warranty

GKN Loebro manufactures this CV axle shaft to meet OEM standards for fit, form, and function. The part number 305561 undergoes rigorous quality control to ensure durability and performance. While specific warranty details may vary, GKN Loebro products typically come with a limited warranty against defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
