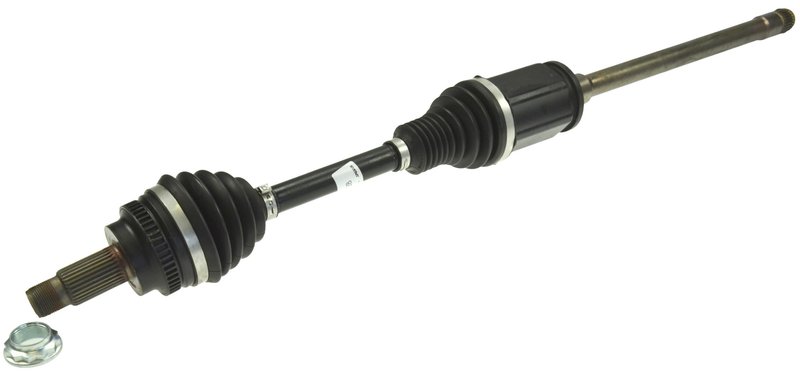

GKN Loebro 305651 CV Axle Shaft - Front Right

Overview of GKN Loebro CV Axle Shaft 305651

The GKN Loebro CV Axle Shaft 305651 is engineered for precise fitment and reliable performance in select BMW models. Designed to meet OEM specifications, this CV axle shaft supports smooth power transfer and vehicle stability for BMW 525xi, 528i xDrive, 528xi, 530xi, and 535xi models.

• Compressed length of 36.614 inches for exact fitment
• Inboard spline quantity: 27 splines
• Outboard spline quantity: 30 splines
• Includes axle nut with M27x1.5 thread size
• Inboard joint type: Plunging joint aar for axial movement
• Outboard joint type: Fixed ball joint uf for consistent rotation
• ABS tone ring with 48 teeth for accurate sensor readings

Technical Details and Specifications

This CV axle shaft, part number 305651, features a compressed length of 36.614 inches, ensuring compatibility with the specified BMW models. The inboard joint utilizes a plunging joint aar design, allowing for axial movement to accommodate suspension travel and drivetrain articulation. The outboard joint is a fixed ball joint uf, providing stable rotational movement to the wheel hub. The axle shaft includes 27 inboard splines and 30 outboard splines, matching the OEM spline counts for secure engagement. Additionally, the integrated ABS tone ring with 48 teeth supports the vehicle’s anti-lock braking system by delivering precise wheel speed data. The axle nut included has an M27x1.5 thread size, matching factory specifications for secure installation.

Compatible BMW Models and Applications

This GKN Loebro CV axle shaft 305651 is compatible with the following BMW models:

• BMW 525xi
• BMW 528i xDrive
• BMW 528xi
• BMW 530xi
• BMW 535xi

It is designed to replace worn or damaged CV axle shafts in these all-wheel-drive and xDrive variants, ensuring proper drivetrain function and vehicle handling.

Common Issues Addressed by This CV Axle Shaft

• Eliminates clicking or popping noises during turns caused by worn CV joints
• Restores smooth power transfer to wheels for improved acceleration
• Prevents vibration or shuddering at higher speeds due to axle imbalance
• Maintains ABS sensor accuracy with integrated tone ring
• Resolves grease leakage and joint wear from damaged CV boots

Installation Notes and Tips

When installing the GKN Loebro CV axle shaft 305651, ensure the axle nut torque specifications are followed according to BMW factory guidelines. Verify spline engagement on both inboard and outboard ends to prevent premature wear. Inspect surrounding suspension components and CV boots for damage during replacement. Proper alignment and secure fastening of the axle nut with the included M27x1.5 thread size nut are critical for safe operation.

Quality Assurance and Warranty

GKN Loebro manufactures this CV axle shaft to meet or exceed OEM standards for durability and performance. While specific warranty details are not provided here, GKN Loebro products typically come with manufacturer-backed quality assurance. Refer to the product packaging or official documentation for warranty terms.
