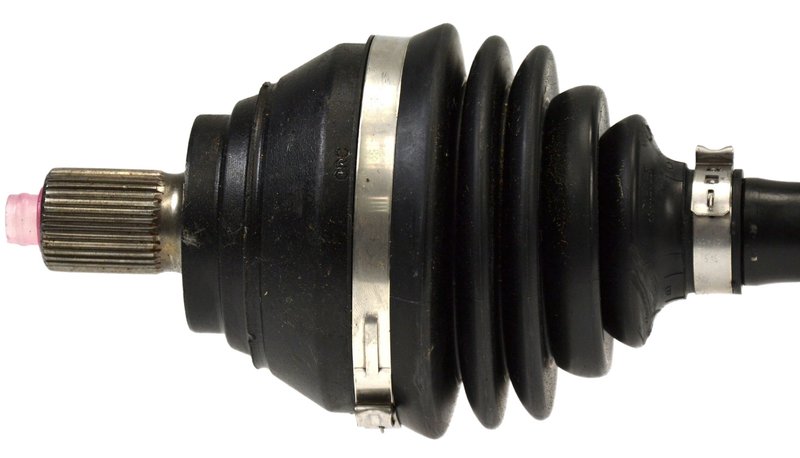

GKN Loebro 305767 CV Axle Assembly - Front Left
| Brand | GKN Loebro 305767 |
|---|---|
| Position | Front Left |
| Inner Joint Diameter | 98 mm |
| Inner Joint Spline Count | 40 |
| Length | 505 mm |
| Outer Joint Diameter | 100 mm |
| Outer Joint Spline Count | 36 |
| Special Information | Includes bolt |
| Fits | Volkswagen · 8 vehicles |
OE technology. GKN Automotive driveline engineering for axle and CV joint replacement.
Exact dimensions. 505 mm length with 98 mm inner and 100 mm outer joint diameters.
Spline-matched design. 40 inner splines and 36 outer splines for the listed application.
Cross-references NTK 25574, 5N0407761Q and 5N0407761QX for the same application. See all 10.
Overview
This GKN Loebro CV axle assembly, part number 305767, is built for direct driveline replacement where precise joint dimensions matter. It fits 2009-2016 Volkswagen Tiguan, front left, and matches the application with a 505 mm length, 98 mm inner joint diameter, and 100 mm outer joint diameter.
Key Features
- OE technology from GKN Automotive for driveline service and replacement.
- Includes bolt for the specified application.
- Inner joint: 40 splines with a 98 mm diameter.
- Outer joint: 36 splines with a 100 mm diameter.
- 505 mm overall length for the listed fitment.
Detailed Description
Part number 305767 is a CV axle assembly engineered around the exact dimensions and spline counts required for the listed Volkswagen Tiguan application. The 505 mm length, 40-spline inner joint, and 36-spline outer joint help ensure the axle matches the driveline geometry called for in the fitment data. GKN Loebro draws on GKN Automotive's OE-focused driveline expertise, with axle and CV joint solutions used across a wide range of passenger vehicles.
This part cross-references Volkswagen OE numbers 5N0407761Q and 5N0407761S for the same application.
What It Helps Address
- Worn or noisy CV axle operation.
- Clicking or vibration during acceleration.
- Axle shaft damage from joint wear or boot failure.
- Driveline fitment issues when the original axle dimensions no longer match.
Installation Notes
Verify the 505 mm length, spline counts, and joint diameters against the removed axle before installation. Confirm front left placement and match the vehicle's driveline configuration to the catalog fitment for 2009-2016 Volkswagen Tiguan. The included bolt is listed in the product data and should be checked against the service procedure for the application.
Quality Assurance
GKN Automotive supplies OE technology to global vehicle manufacturers and produces axle assemblies at high volume for passenger vehicle driveline applications. Part number 305767 is built to the same dimensional requirements used in the listed fitment.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2016 | Volkswagen | Tiguan | FWD | Manual | 2.0L | L4 | Front Left | Length 505 mm |
| 2015 | Volkswagen | Tiguan | FWD | Manual | 2.0L | L4 | Front Left | Length 505 mm |
| 2014 | Volkswagen | Tiguan | FWD | Manual | 2.0L | L4 | Front Left | Length 505 mm |
| 2013 | Volkswagen | Tiguan | FWD | Manual | 2.0L | L4 | Front Left | Length 505 mm |
| 2012 | Volkswagen | Tiguan | FWD | Manual | 2.0L | L4 | Front Left | Length 505 mm |
| 2011 | Volkswagen | Tiguan | — | Manual | 2.0L | L4 | Front Left | Length 505 mm |
| 2010 | Volkswagen | Tiguan | — | Manual | 2.0L | L4 | Front Left | Length 505 mm |
| 2009 | Volkswagen | Tiguan | FWD | Manual | 2.0L | L4 | Front Left | Length 505 mm |
