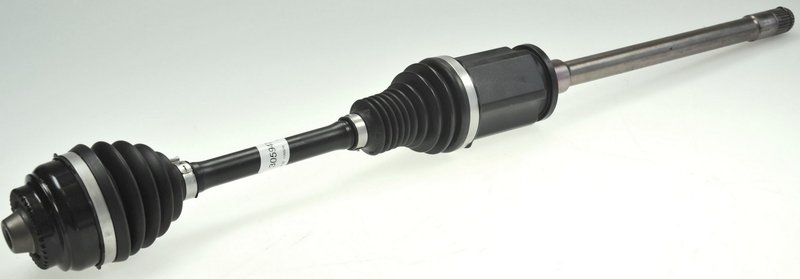

GKN Loebro 305947 CV Axle Assembly - Front Right
| Brand | GKN Loebro 305947 |
|---|---|
| Position | Front Right |
| Axle Nut Included | No |
| Axle Nut Thread Size | M16x1.5 |
| Compressed Length | 34.448 |
| Inboard Joint Type | Plunging Joint AAR |
| Inboard Spline Quantity | 27 |
| Outboard Joint Type | FACESPLINE- ST |
| Outboard Spline Quantity | 37 |
| Fits | BMW · 20 vehicles |
OE technology. Face Spline design delivers lower weight with higher performance.
Face Spline joints. Transfer torque through the joint face with a simpler connection.
CV axle assembly. A driveline component built for torque transfer to the hub.
Cross-references 7593042, 7606026 and 31607593042 for the same application. See all 4.
BMW Front Right CV Axle Assembly
GKN Loebro 305947 is a front right CV axle assembly built with OE technology for BMW driveline service. It uses a Face Spline outboard joint for direct torque transfer at the wheel hub, along with a plunging inboard joint to support suspension movement and driveline articulation.
- Front right CV axle assembly for select BMW xDrive applications
- Face Spline outboard joint for hub-side torque transfer
- Plunging Joint AAR inboard design for axle movement under suspension travel
- Compressed length: 34.448 in.
- Inboard spline count: 27
- Outboard spline count: 37
- Axle nut thread size: M16x1.5
- Axle nut not included
Fitment Details
Compatible With BMW 550i GT xDrive, front right, for 2010-2015 models. Compatible With BMW 550i GT xDrive, front right, for 2016-2017 models with an overall CV axle assembly length of 913 mm. Compatible With BMW 750i xDrive, front right, for 2010-2015 models. Compatible With BMW 750Li xDrive, front right, for 2010-2015 models.
This part cross-references 7593042 and 7606026 for the same application.
How This Axle Is Used
- Restores front right wheel drive transfer on BMW xDrive vehicles
- Addresses clicking or popping during turns caused by worn CV joints
- Helps correct vibration under acceleration from a worn axle shaft
- Replaces a damaged axle with spline and length specifications matched to the application
- Supports smooth suspension travel when the original axle has excessive play
Installation Notes
Verify the front right position, spline counts, and compressed length before installation. Confirm the axle nut thread size is M16x1.5 and note that the axle nut is not included. Compare the removed axle to the replacement part and check the 2016-2017 BMW 550i GT xDrive note for the 913 mm overall length specification.
Quality Assurance
GKN Automotive supplies OE technology used by premium vehicle manufacturers, and this axle reflects that engineering approach with a Face Spline hub connection and application-specific driveline design.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | BMW | 550i GT xDrive | — | 4.4L | V8 | Front Right | Fitment note: Overall length of CV Axle Assembly is 913mm. |
| 2016 | BMW | 550i GT xDrive | AWD | 4.4L | V8 | Front Right | Fitment note: Overall length of CV Axle Assembly is 913mm. |
| 2015 | BMW | 550i GT xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2015 | BMW | 750i xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2015 | BMW | 750Li xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2014 | BMW | 550i GT xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2014 | BMW | 750i xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2014 | BMW | 750Li xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2013 | BMW | 550i GT xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2013 | BMW | 750i xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2013 | BMW | 750Li xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2012 | BMW | 550i GT xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2012 | BMW | 750i xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2012 | BMW | 750Li xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2011 | BMW | 550i GT xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2011 | BMW | 750i xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2011 | BMW | 750Li xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2010 | BMW | 550i GT xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2010 | BMW | 750i xDrive | AWD | 4.4L | V8 | Front Right | — |
| 2010 | BMW | 750Li xDrive | AWD | 4.4L | V8 | Front Right | — |
