GKN Loebro 306281 CV Joint Kit - Front Outer or Front Right Outer

OE-Style CV Joint for Mercedes-Benz Front Axles

GKN Loebro 306281 is a standard replacement CV joint kit built with OE technology from a global driveline supplier. It uses Countertrack SX joint design to reduce friction and heat while supporting higher torque transfer and a larger bending angle for front axle service.

Compatible with Mercedes-Benz S-Class applications including S450, S560, S63 AMG, Maybach S550, and Maybach S560 in front outer or front right outer positions, depending on model year.

Key Features

• GKN Loebro part number 306281

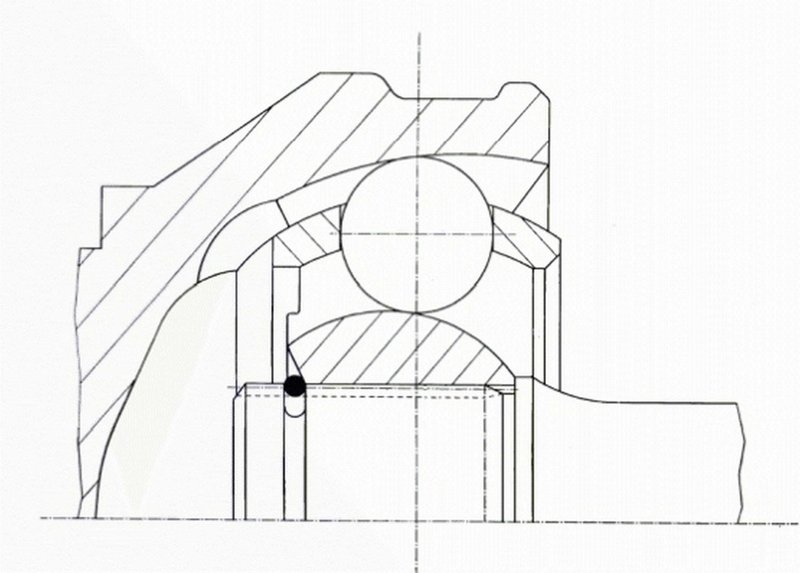

• Countertrack SX joint design with opposed tracks and an S-shaped track profile
• Standard replacement grade for driveline service
• 30 shaft spline quantity
• Joint dimensions include 85 mm joint diameter, 110 mm length, and M16x1.5 thread size
• TPE boot material with grease included in the assembly
• OE-style engineering used by major vehicle manufacturers

Detailed Description

This CV joint kit is engineered for front axle service on Mercedes-Benz S-Class vehicles where precise articulation and smooth torque transfer are required. The GKN Loebro Countertrack SX design is built around a characteristic S-shaped track profile and opposed tracks, helping reduce internal friction and heat while increasing transmissible torque and maximum bending angle. The result is a driveline service part that follows OE technology principles for consistent operation in demanding front outer applications.

This part cross-references FEL-PRO 36102 for the same application. Part number 306281 is also associated with Mercedes-Benz front outer and front right outer service needs across select S450, S560, S63 AMG, Maybach S550, and Maybach S560 models.

What It Helps Solve

• Clicking or popping during turns from a worn outer CV joint
• Vibration or shudder under acceleration from driveline wear
• Grease leakage caused by joint or boot deterioration
• Excessive play in the front axle joint assembly
• Reduced smoothness in steering and power delivery

Installation Notes and Tips

Verify spline count, joint diameter, thread size, and axle position before installation. Confirm whether the vehicle uses a front outer or front right outer application, since fitment varies by model year. Inspect the mating axle components for wear, contamination, or damage before assembly so the replacement joint can seat correctly and operate smoothly.

Quality Assurance

GKN Automotive is recognized for OE driveline technology used by major vehicle manufacturers, and Loebro Countertrack SX joints are built to the same engineering approach. Part number 306281 is a standard replacement CV joint kit for Mercedes-Benz driveline service.
