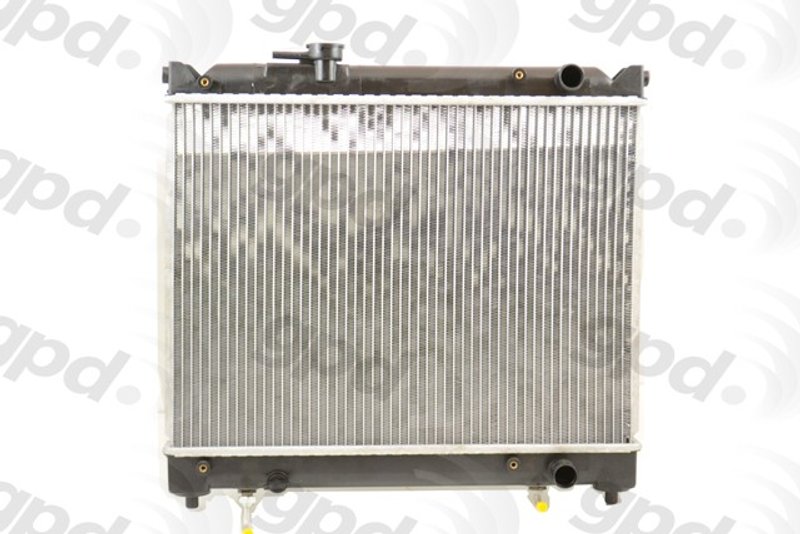

Global Parts 1118C Radiator

Radiator for Tracker and Sidekick Cooling Systems

Global Parts 1118C is a radiator built for select Geo Tracker, Suzuki Sidekick, Chevrolet Tracker, and GMC Tracker applications. It uses an aluminum core with plastic tanks and includes an internal transmission oil cooler for vehicles equipped with automatic transmission cooling through the radiator.

Key Features

• Aluminum core with plastic tank construction
• 1-row core design for direct cooling flow
• Internal transmission oil cooler included
• Inlet diameter: 1.13 in. (28.7 mm)
• Outlet diameter: 1.1 in. (27.94 mm)
• Core thickness: 1 in. (25.4 mm)
• Radiator cap not included
• Thermostat not included

Detailed Description

This Global Parts radiator, part number 1118C, is engineered for cooling-system replacement on 1989-1995 Geo Tracker and Suzuki Sidekick models, plus 1989-1991 Chevrolet Tracker and GMC Tracker applications with a 20-1/16" core width and 14-3/4" high core. The aluminum core helps transfer heat away from the engine, while the plastic tanks provide a common OE-style radiator construction. The built-in transmission oil cooler supports automatic-transmission fluid temperature control through the radiator assembly. If you are replacing a worn radiator on a Tracker or Sidekick, 1118C provides the core dimensions and hose connections needed for the listed fitments. This part cross-references APDI 8011118 for the same application.

What It Helps Address

• Engine overheating caused by a restricted or leaking radiator
• Coolant loss from cracked tanks or damaged core passages
• Automatic transmission fluid temperature issues related to radiator cooling
• Reduced cooling efficiency from corrosion or internal blockage
• Fitment replacement needs for Tracker and Sidekick cooling-system service

Installation Notes and Tips

Verify the core width and core height against the vehicle before installation, especially on 1989-1995 Geo Tracker and Suzuki Sidekick models and 1989-1991 Chevrolet Tracker and GMC Tracker applications. Confirm hose inlet and outlet sizing, and transfer any reusable components not supplied with the radiator, such as the radiator cap or thermostat, if required by the vehicle service procedure. Check transmission cooler line routing and inspect hoses, clamps, and coolant condition during replacement.

Quality Assurance

Global Parts 1118C is built as a radiator replacement for the listed applications and follows the specified core material, tank material, and cooler configuration for fitment-focused service work.
