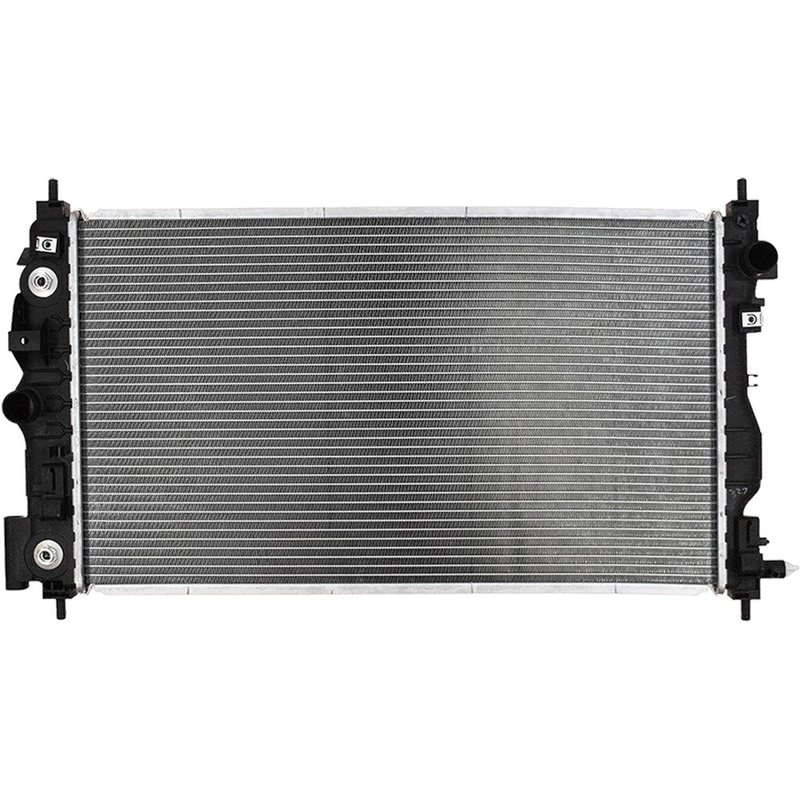

Global Parts 13217C Radiator

Overview of Global Parts Radiator 13217C for Buick Regal

The Global Parts radiator 13217C is designed specifically for Buick Regal models, providing reliable engine cooling performance. Featuring a cross flow design and integrated transmission oil cooler, this radiator supports efficient heat dissipation to maintain optimal engine temperatures.

• Core dimensions: 15.25 inches height, 26.75 inches width, 0.63 inches thickness
• Constructed with an aluminum core and plastic tanks for durability and corrosion resistance
• Includes a transmission oil cooler with quick connect fittings spaced 13.78 inches apart
• Inlet diameter of 1.38 inches and outlet diameter of 1.4 inches for proper coolant flow
• Cross flow core type with 73 fins per 4 inches to enhance cooling efficiency

Detailed Radiator Specifications and Features

This radiator features a robust aluminum core measuring 15.25 inches in height, 26.75 inches in width, and 0.63 inches in thickness, designed to fit the cooling requirements of Buick Regal vehicles. The plastic tank material reduces weight while maintaining structural integrity. The cross flow design promotes effective coolant circulation across the core, improving heat exchange. Additionally, the integrated transmission oil cooler with quick connect fittings simplifies connection and supports transmission fluid cooling, with fittings spaced 13.78 inches apart and a fitting diameter of 0.37 inches. The inlet and outlet diameters of 1.38 and 1.4 inches respectively ensure compatibility with factory coolant hoses.

Applications and Common Issues Addressed

• Replaces faulty or leaking radiators in Buick Regal models
• Resolves engine overheating caused by inefficient cooling
• Addresses transmission fluid overheating with built-in transmission oil cooler
• Eliminates coolant leaks due to damaged or corroded radiator cores or tanks
• Improves overall engine temperature regulation for consistent vehicle performance

Installation Notes and Tips

Ensure the radiator core dimensions and inlet/outlet sizes match the vehicle specifications before installation. The quick connect fittings for the transmission oil cooler facilitate easier hose connections but verify proper sealing to prevent leaks. It is recommended to flush the cooling system and inspect hoses and clamps during replacement to maintain optimal cooling system performance.

Quality Assurance and Warranty

Global Parts radiators are manufactured to meet OEM standards, using quality aluminum cores and durable plastic tanks. This radiator is designed for long-term reliability in Buick Regal vehicles. Warranty details should be confirmed with the distributor or retailer at the time of purchase.
