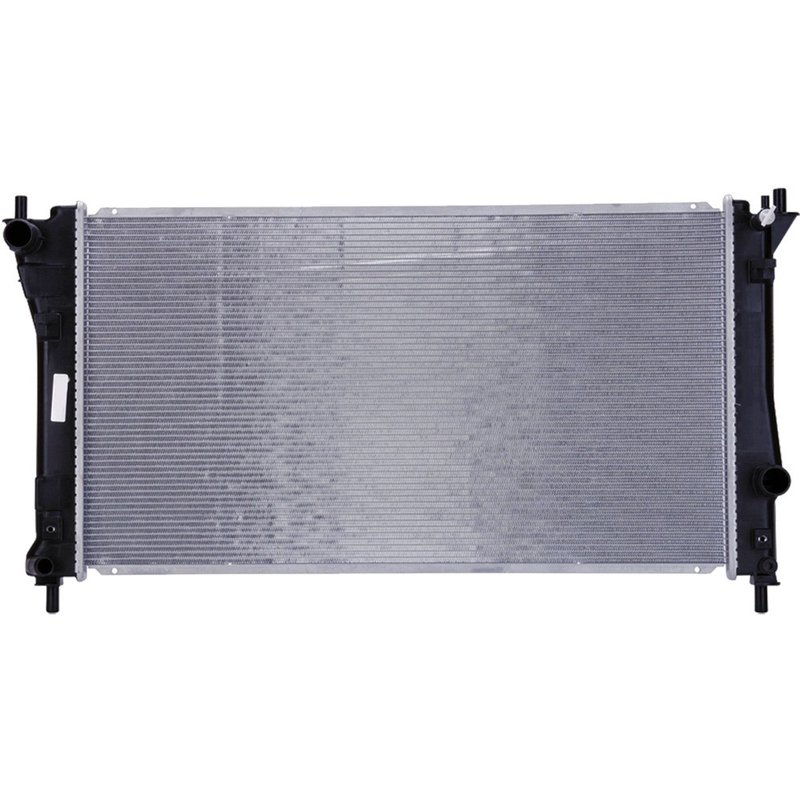

Global Parts 13220C Radiator
| Brand | Global Parts 13220C |
|---|---|
| Core Height | 14.56 |
| Core Height | 369.82 |
| Core Thickness | 0.63 |
| Core Thickness | 16 |
| Core Width | 26.56 |
| Core Width | 674.62 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Transmission Oil Cooler Included | No |
| Core Row Quantity | 1 |
| Inlet Diameter | 1.25 |
| Inlet Diameter | 31.75 |
| Outlet Diameter | 1.3 |
| Outlet Diameter | 33.02 |
| Engine Oil Cooler Included | No |
| Down Flow Or Cross Flow Type | Cross flow |
| Core Fin Quantity | 78 (every 4") |
| Fits | Mazda · 5 vehicles |
OE replacement radiator. Restores cooling performance when the original unit fails.
Aluminum core. Helps dissipate heat efficiently for consistent engine cooling.
Cross-flow design. Promotes steady airflow through the cooling system.
Cross-references APDI 8013220, Carlson 13220 and DENSO Auto Parts 221-9267 for the same application. See all 14.
Radiator for 2012-2016 Mazda 5
Global Parts 13220C is a direct-fit radiator for the 2012-2016 Mazda 5. It replaces a failed OE radiator and restores proper coolant flow and heat dissipation to help maintain stable engine temperatures in daily driving.
Key Features
- Fits 2012-2016 Mazda 5
- Part number: 13220C
- Aluminum core with plastic tanks
- Cross-flow design with a single-row core
- Core dimensions: 14.56 in. height, 26.56 in. width, 0.63 in. thickness
- Inlet diameter: 1.25 in.; outlet diameter: 1.3 in.
- No engine oil cooler and no transmission oil cooler included
- Core fin quantity: 78 per 4 in.
Detailed Description
This Global Parts radiator is built for the Mazda 5 cooling system and follows the OE-style layout for straightforward replacement. The aluminum core and plastic tank construction provide a practical balance of heat transfer and durability, while the cross-flow configuration supports efficient coolant circulation across the core. If you are replacing a leaking, clogged, or damaged radiator on a 2012 Mazda 5, 2013 Mazda 5, 2014 Mazda 5, 2015 Mazda 5, or 2016 Mazda 5, part number 13220C is the correct application.
This part cross-references DENSO Auto Parts 221-9267 and Spectra Premium CU13220 for the same application.
What It Helps Address
- Coolant leaks from a cracked or aging radiator
- Engine overheating caused by restricted heat exchange
- Temperature instability from internal corrosion or blockage
- Loss of cooling performance after radiator tank or core damage
- Replacement needs after OE radiator failure on a Mazda 5
Installation Notes and Tips
Verify inlet and outlet hose sizes, mounting points, and overall dimensions before installation. Flush the cooling system, inspect hoses and clamps, and refill with the correct coolant mixture after the radiator is installed. Confirm there is no transmission or engine oil cooler requirement for your vehicle before ordering, since this radiator does not include either cooler.
Quality Assurance
Global Parts supplies this radiator as an OE-style replacement component for the listed Mazda 5 applications. Part number 13220C is specified for 2012-2016 Mazda 5 fitment and is built to match the cooling-system requirements of that platform.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2016 | Mazda | 5 | 2.5L | L4 | — |
| 2015 | Mazda | 5 | 2.5L | L4 | — |
| 2014 | Mazda | 5 | 2.5L | L4 | — |
| 2013 | Mazda | 5 | 2.5L | L4 | — |
| 2012 | Mazda | 5 | 2.5L | L4 | — |
