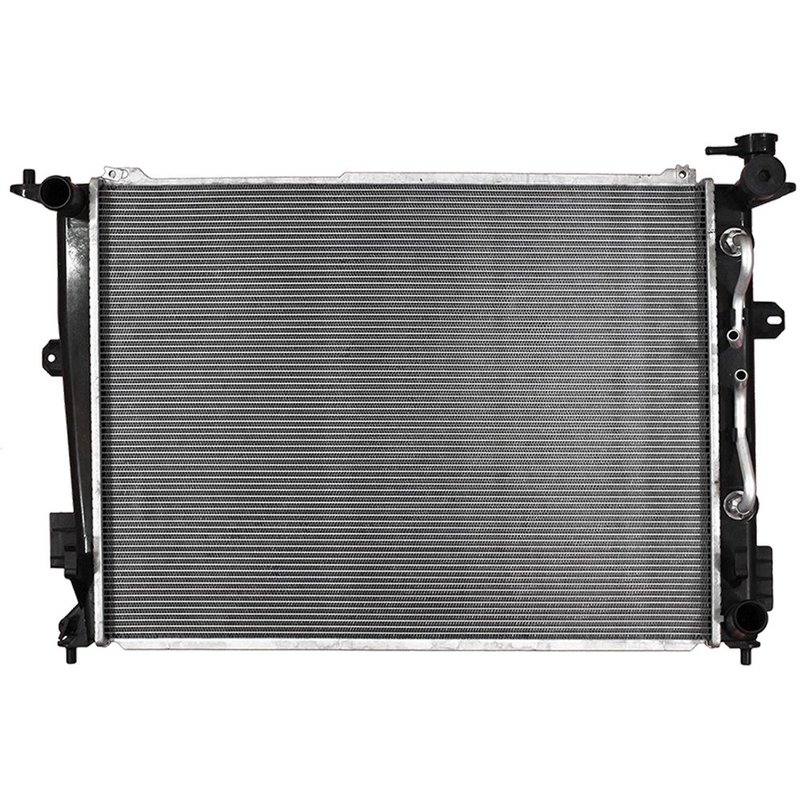

Global Parts 13388C Radiator

Overview of Global Parts Radiator 13388C for Hyundai Genesis

The Global Parts radiator 13388C is designed specifically for Hyundai Genesis models, providing reliable engine cooling performance. Engineered with durable aluminum core and plastic tanks, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core Height: 18.88 inches (479.55 mm)
• Core Width: 25.06 inches (636.52 mm)
• Core Thickness: 0.63 inches (16 mm)
• Core Material: Aluminum for enhanced heat transfer
• Tank Material: Plastic for corrosion resistance
• Cross flow design for improved coolant flow
• Inlet Diameter: 1.38 inches (35.05 mm)
• Outlet Diameter: 1.4 inches (35.56 mm)
• Single core row with 78 fins per 4 inches
• Transmission oil cooler not included

Detailed Radiator Specifications and Features

This radiator features a cross flow core design that promotes efficient coolant circulation across the aluminum core, which measures 18.88 inches in height and 25.06 inches in width. The 0.63-inch thick core with 78 fins per 4 inches enhances heat dissipation, helping to maintain engine temperature under various driving conditions. The plastic tanks provide resistance to corrosion and reduce overall weight. The inlet and outlet diameters of approximately 1.38 and 1.4 inches respectively ensure compatibility with the Hyundai Genesis cooling system. This radiator does not include an engine or transmission oil cooler, focusing solely on engine coolant management.

Compatible Vehicles and Applications

• Designed for Hyundai Genesis models requiring part number 13388C
• Ideal replacement for overheating or leaking radiator issues
• Suitable for vehicles experiencing coolant flow restrictions
• Addresses radiator core damage or corrosion problems
• Supports restoration of proper engine temperature regulation

Installation Notes and Tips

When installing the Global Parts radiator 13388C, ensure all coolant hoses match the specified inlet and outlet diameters for a secure fit. Verify the radiator mounts align with the Hyundai Genesis chassis points. Since this radiator does not include a transmission oil cooler, confirm your vehicle’s cooling system configuration before installation. Properly bleed the cooling system after installation to prevent air pockets and ensure optimal performance.

Quality Assurance and Warranty

Global Parts radiators are manufactured to meet OEM specifications, using quality aluminum cores and durable plastic tanks. While specific warranty details are not provided, Global Parts products typically undergo rigorous quality control to ensure reliability and fitment accuracy for Hyundai Genesis vehicles. For warranty information, refer to the product documentation or contact the distributor.
