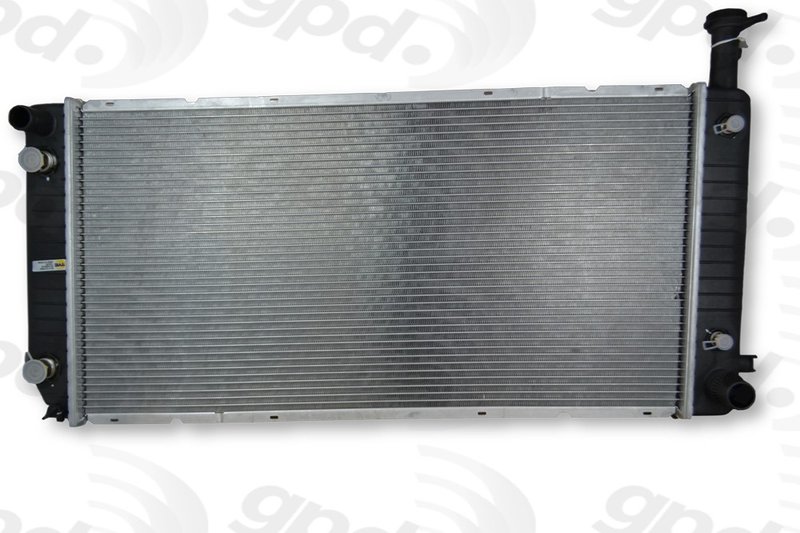

Global Parts 13476C Radiator

Overview of Global Parts Radiator 13476C

The Global Parts radiator 13476C is engineered for reliable cooling performance in Chevrolet Express 2500, Express 3500, GMC Savana 2500, and Savana 3500 models. Designed with durable aluminum core and plastic tanks, this radiator supports both engine and transmission oil cooling needs.

• Core dimensions: 17.25 inches height, 34 inches width, 0.88 inches thickness
• Constructed with an aluminum core and plastic tanks for efficient heat dissipation
• Includes integrated engine and transmission oil coolers with quick connect fittings
• Cross flow design enhances coolant flow and heat exchange
• Core fin density of 73 fins per 4 inches for optimized cooling
• Inlet diameter of 1.38 inches and outlet diameter of 1.9 inches
• Transmission oil cooler fittings spaced 11.5 inches apart with 0.5-inch diameter
• Engine oil cooler fittings spaced 11.5 inches apart with 0.37-inch diameter

Detailed Radiator Specifications and Features

The Global Parts radiator 13476C features a cross flow core design measuring 17.25 inches in height, 34 inches in width, and 0.88 inches thick, constructed from aluminum for effective heat transfer. The plastic tanks reduce weight while maintaining durability. This radiator includes both engine and transmission oil coolers, each equipped with quick connect fittings to simplify hose connections and improve serviceability. The transmission oil cooler fittings have a 0.5-inch diameter and are spaced 11.5 inches apart, matching the engine oil cooler fittings which have a 0.37-inch diameter and the same spacing. The inlet and outlet diameters are 1.38 inches and 1.9 inches respectively, ensuring proper coolant flow. With 73 fins per 4 inches, the radiator maximizes surface area for heat dissipation, supporting optimal engine temperature regulation under demanding conditions.

Compatible Vehicles and Applications

• Chevrolet Express 2500 radiator replacement
• Chevrolet Express 3500 cooling system upgrade
• GMC Savana 2500 radiator and oil cooler assembly
• GMC Savana 3500 engine and transmission cooling

Installation Notes and Tips

When installing the Global Parts radiator 13476C, ensure all quick connect fittings for the engine and transmission oil coolers are securely attached to prevent leaks. Verify the inlet and outlet hose diameters match the vehicle’s specifications. Properly bleed the cooling system after installation to avoid air pockets and maintain efficient coolant circulation. Inspect mounting points for corrosion or damage before fitting the radiator to ensure a secure installation.

Quality Assurance and Warranty

Global Parts radiators are manufactured to meet OEM standards for fit, form, and function. The 13476C radiator undergoes rigorous quality control to ensure durability and performance in Chevrolet and GMC Express and Savana models. Warranty details are provided by Global Parts and should be confirmed at the time of purchase.
