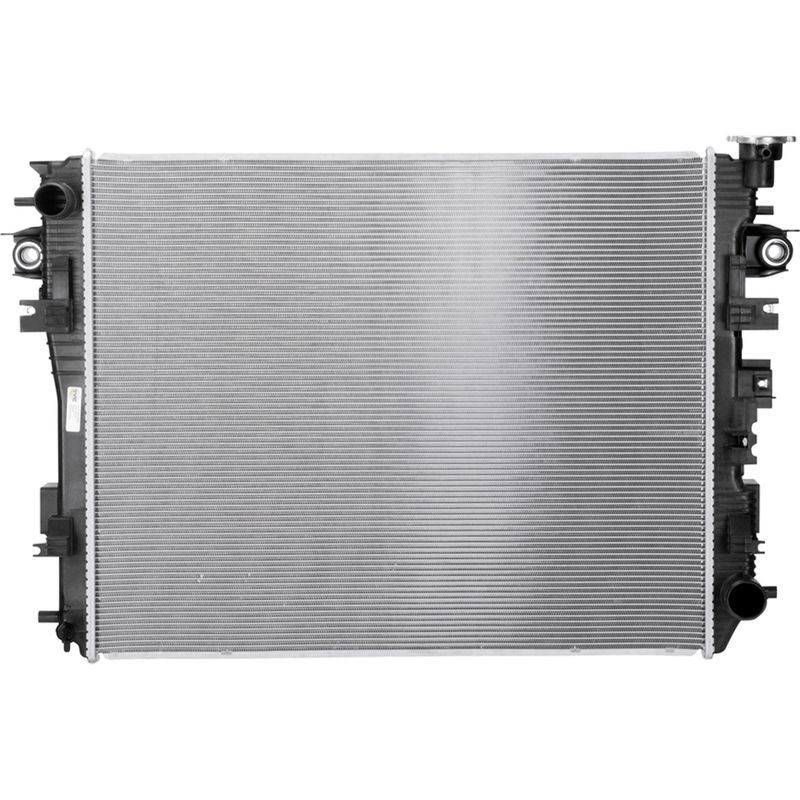

Global Parts 13494C Radiator
| Brand | Global Parts 13494C |
|---|---|
| Core Height | 22.5 |
| Core Height | 571.5 |
| Core Thickness | 1 |
| Core Thickness | 25.4 |
| Core Width | 27.5 |
| Core Width | 698.5 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Transmission Oil Cooler Included | No |
| Inlet Diameter | 1.5 |
| Inlet Diameter | 38.1 |
| Outlet Diameter | 1.8 |
| Outlet Diameter | 45.72 |
| Engine Oil Cooler Included | No |
| Down Flow Or Cross Flow Type | Cross flow |
| Core Fin Quantity | 81 (every 4") |
| Fits | Ram · 11 vehicles |
OE direct replacement. Restores cooling performance when the original radiator fails.
Aluminum core. Helps dissipate engine heat efficiently for steady operation.
Cross-flow design. Promotes consistent coolant flow through the radiator core.
Cross-references CSF 3739, OSC 13494 and Spectra Premium CU13494 for the same application. See all 8.
Radiator for Ram Heavy-Duty Cooling
Global Parts 13494C is a radiator for 2014-2019 Ram 2500 and 2014-2018 Ram 3500 applications. It is built with an aluminum core and plastic tanks to replace a failed OE radiator and restore engine cooling performance in heavy-duty use.
Key Features
- Direct-fit radiator for Ram 2500 and Ram 3500 applications
- Aluminum core with plastic tank construction
- Cross-flow design for efficient coolant circulation
- Core dimensions: 22.5 in. height, 27.5 in. width, 1 in. thickness
- Inlet diameter: 1.5 in.; outlet diameter: 1.8 in.
- No engine oil cooler included
- No transmission oil cooler included
- Core fin quantity: 81 every 4 in.
Detailed Description
This Global Parts radiator, part number 13494C, is engineered for Ram 2500 and Ram 3500 trucks that need a replacement cooling assembly after the original unit fails. The aluminum core helps transfer heat away from the engine, while the plastic tanks provide the OE-style construction commonly used in factory cooling systems. With a cross-flow layout and the listed inlet and outlet sizes, 13494C is built to match the cooling system requirements of the covered Ram heavy-duty models.
This part cross-references Spectra Premium CU13494 and OSC 13494 for the same application.
What It Helps Address
- Engine overheating caused by a leaking or clogged radiator
- Coolant loss from cracked tanks or damaged core seams
- Reduced cooling efficiency under towing or heavy-load driving
- Temperature instability from a worn OE radiator
- Cooling system failure on Ram 2500 and Ram 3500 trucks
Installation Notes and Tips
Verify radiator dimensions, inlet and outlet sizes, and cooler requirements before installation. This radiator does not include an engine oil cooler or transmission oil cooler, so confirm your vehicle’s original configuration matches those specifications. Inspect hoses, clamps, and coolant condition during replacement, and flush the system if contamination is present. Fits 2014-2019 Ram 2500, N/A. Fits 2014-2018 Ram 3500, N/A.
Quality Assurance
Global Parts supplies replacement cooling components for OE-style fitment and function. Part number 13494C is listed with confirmed vehicle coverage for Ram heavy-duty applications and is supported by published interchange references for identification.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Ram | 2500 | 5.7L | V8 | N/A | — |
| 2018 | Ram | 2500 | 5.7L | V8 | N/A | — |
| 2018 | Ram | 3500 | 5.7L | V8 | N/A | — |
| 2017 | Ram | 2500 | 5.7L | V8 | N/A | — |
| 2017 | Ram | 3500 | 5.7L | V8 | N/A | — |
| 2016 | Ram | 2500 | 5.7L | V8 | N/A | — |
| 2016 | Ram | 3500 | 5.7L | V8 | N/A | — |
| 2015 | Ram | 2500 | 5.7L | V8 | N/A | — |
| 2015 | Ram | 3500 | 5.7L | V8 | N/A | — |
| 2014 | Ram | 2500 | 5.7L | V8 | N/A | — |
| 2014 | Ram | 3500 | 5.7L | V8 | N/A | — |
