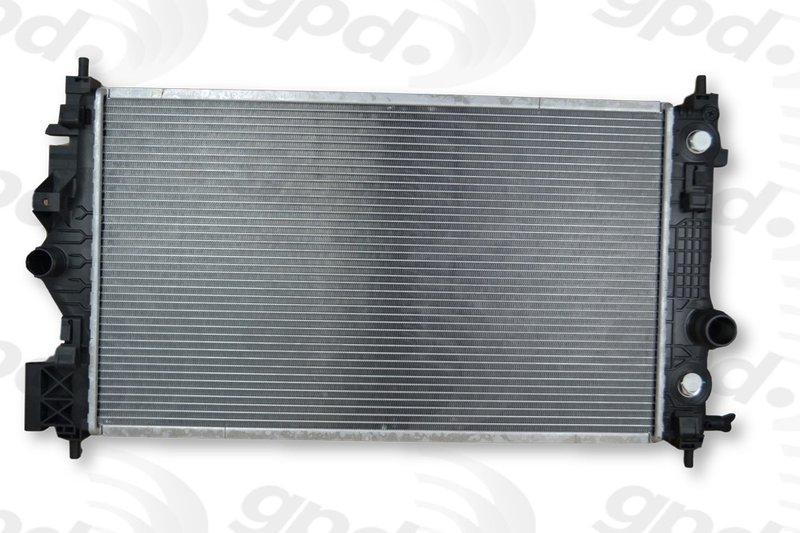

Global Parts 13509C Radiator

Overview of Global Parts Radiator 13509C for Buick and Chevrolet

The Global Parts radiator 13509C is designed specifically for select Buick and Chevrolet models, including the Cascada, Cruze, and Cruze Limited. Engineered to maintain optimal engine temperature, this radiator features durable aluminum core construction and integrated transmission oil cooling.

• Core Height: 16.25 inches (412.75 mm)
• Core Width: 26.25 inches (666.75 mm)
• Core Thickness: 1.13 inches (28.7 mm)
• Core Material: Aluminum for efficient heat dissipation
• Tank Material: Plastic for corrosion resistance
• Includes Transmission Oil Cooler
• Inlet Diameter: 1.31 inches (33.27 mm)
• Outlet Diameter: 1.5 inches (38.1 mm)
• Engine Oil Cooler: Not included

Detailed Product Description

The Global Parts radiator with part number 13509C is constructed with a robust aluminum core that measures 16.25 inches in height, 26.25 inches in width, and 1.13 inches in thickness. This design ensures effective heat transfer to keep your engine running at the correct temperature. The plastic tanks provide resistance against corrosion and wear, extending the radiator's service life. Additionally, this radiator includes a built-in transmission oil cooler, which helps maintain transmission fluid temperature for improved transmission performance and longevity. The inlet and outlet diameters are precisely sized at 1.31 inches and 1.5 inches respectively, ensuring proper coolant flow and compatibility with the vehicle's cooling system.

Compatible Vehicles and Applications

This radiator is compatible with the following vehicles:

• Buick Cascada
• Chevrolet Cruze
• Chevrolet Cruze Limited

It is designed to replace the original equipment radiator and transmission oil cooler assembly, providing reliable cooling performance for these specific models.

Common Issues Addressed by Radiator 13509C

• Engine overheating due to inefficient heat dissipation
• Transmission fluid overheating affecting transmission performance
• Coolant leaks from damaged or corroded radiator tanks
• Reduced cooling efficiency from clogged or worn radiator cores
• Incompatible radiator dimensions causing installation or fitment problems

Installation Notes and Tips

• Ensure the vehicle is fully cooled before beginning installation
• Drain coolant and transmission fluid as necessary to avoid spills
• Verify inlet and outlet hose diameters match the radiator connections
• Inspect and replace any worn hoses or clamps during installation
• Bleed the cooling system properly after installation to prevent air pockets

Quality Assurance and Warranty Information

Global Parts radiators are manufactured to meet or exceed OEM specifications, using quality materials such as aluminum cores and corrosion-resistant plastic tanks. The 13509C radiator undergoes rigorous testing to ensure durability and performance. Warranty coverage details should be confirmed with the distributor or retailer, as they may vary by region.
