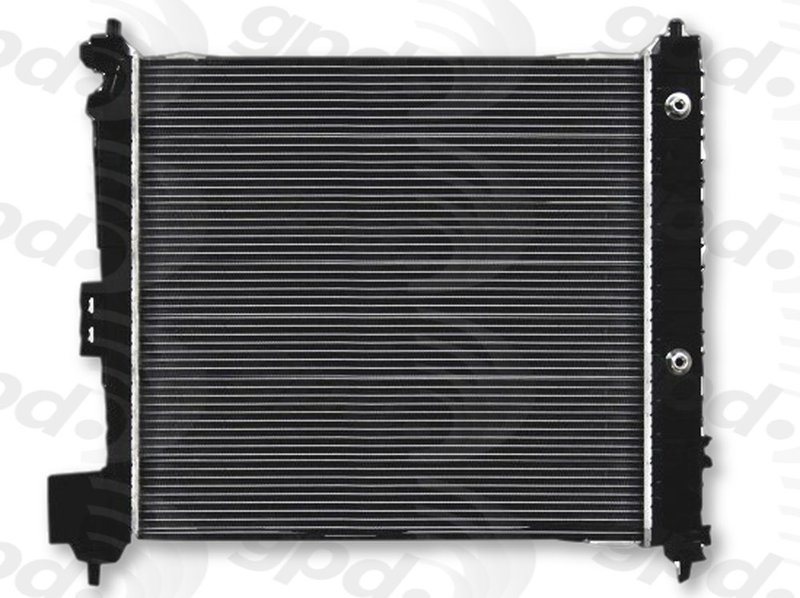

Global Parts 13613C Radiator

Overview of Global Parts Radiator 13613C

The Global Parts radiator 13613C is engineered for reliable cooling performance in select Cadillac, Chevrolet, and GMC vehicles. Designed with a cross flow core and integrated transmission oil cooler, this radiator supports efficient engine temperature management for models like the Cadillac XT5, Chevrolet Blazer, and GMC Acadia.

• Core dimensions: 22.13 inches height, 23.5 inches width, 1.06 inches thickness
• Constructed with an aluminum core and plastic tanks for durability and heat dissipation
• Includes a transmission oil cooler with quick connect fittings spaced 11.81 inches apart
• Single-row core design with 73 fins per 4 inches for optimized airflow
• Inlet diameter of 1.31 inches and outlet diameter of 1.4 inches
• Cross flow type radiator for efficient coolant circulation

Detailed Product Description

The Global Parts radiator part number 13613C features a robust aluminum core measuring 22.13 inches in height and 23.5 inches in width, with a thickness of 1.06 inches. This cross flow radiator design enhances heat exchange by allowing coolant to flow horizontally across the core. The plastic tanks reduce weight while maintaining structural integrity. A key feature is the integrated transmission oil cooler, which includes quick connect fittings spaced 11.81 inches apart and a fitting diameter of 0.37 inches, facilitating straightforward connection to the transmission cooling system. The single-row core with 73 fins per 4 inches ensures effective heat dissipation, supporting engine cooling under various driving conditions.

Compatible Vehicles and Applications

This radiator is compatible with several GM vehicles, including:

• Cadillac XT5 and XT6
• Chevrolet Blazer and Acadia (including Acadia Limited)
• GMC Acadia

It is designed to replace original equipment radiators in these models, providing reliable cooling and transmission oil cooling functions.

Common Issues Addressed by Radiator 13613C

• Engine overheating due to inefficient heat dissipation
• Transmission fluid overheating with integrated transmission oil cooler
• Coolant leaks from damaged or corroded radiator cores or tanks
• Reduced cooling performance from clogged or bent fins
• Failure of original radiator components leading to engine performance issues

Installation Notes and Tips

When installing the Global Parts radiator 13613C, ensure all coolant and transmission fluid lines are properly connected to the quick connect fittings. Verify that the inlet and outlet hoses match the specified diameters (1.31 inches inlet, 1.4 inches outlet) for a secure fit. Inspect the mounting points for alignment and secure the radiator firmly to prevent vibration. Bleed the cooling system after installation to remove air pockets and check for leaks before operating the vehicle.

Quality Assurance and Warranty

Global Parts radiators are manufactured to meet or exceed OEM specifications, using quality aluminum cores and durable plastic tanks. The part number 13613C undergoes rigorous testing to ensure performance and reliability. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
