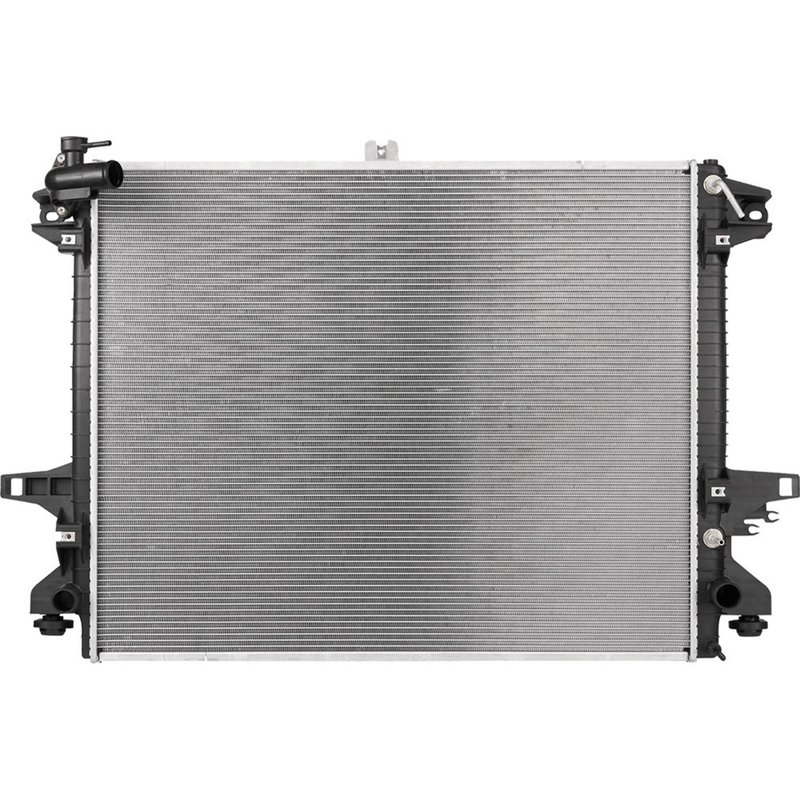

Global Parts 13616C Radiator
| Brand | Global Parts 13616C |
|---|---|
| Core Height | 27 |
| Core Height | 685.8 |
| Core Thickness | 1.56 |
| Core Thickness | 39.62 |
| Core Width | 33.06 |
| Core Width | 839.72 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Transmission Oil Cooler Included | Yes |
| Radiator Cap Included | No |
| Inlet Diameter | 1.5 |
| Inlet Diameter | 38.1 |
| Outlet Diameter | 1.5 |
| Outlet Diameter | 38.1 |
| Engine Oil Cooler Included | No |
| Internal Transmission Oil Cooler | Yes |
| Thermostat Included | No |
| Fits | Nissan · 4 vehicles |
OE direct replacement. Restores cooling performance when the original radiator fails.
Aluminum core. Helps dissipate heat efficiently for steady engine temperatures.
Internal transmission cooler. Includes integrated cooling for automatic transmission fluid.
Cross-references DENSO Auto Parts 221-9563, Dorman - HELP 13616 and 41-13616 for the same application. See all 9.
Radiator for 2016-2019 Nissan TITAN XD
Replace a failing cooling system component with Global Parts radiator Part Number 13616C for the 2016-2019 Nissan TITAN XD. This radiator is built with an aluminum core and plastic tanks, and it includes an internal transmission oil cooler for vehicles equipped with automatic transmission cooling through the radiator.
Key Features
- Fits 2016-2019 Nissan TITAN XD
- Global Parts Part Number 13616C
- Aluminum core with plastic tank construction
- Internal transmission oil cooler included
- Core dimensions: 27 in. height, 33.06 in. width, 1.56 in. thickness
- 1.5 in. inlet and 1.5 in. outlet diameters
- Radiator cap not included
- Thermostat not included
- Engine oil cooler not included
Detailed Description
Global Parts 13616C is a direct-fit radiator for the Nissan TITAN XD, engineered to replace an OEM radiator that has failed or is no longer maintaining proper engine temperature. The aluminum core helps transfer heat away from the engine, while the plastic tank design matches common OE-style construction. With an internal transmission oil cooler included, this radiator also supports transmission fluid heat management through the radiator assembly. This part cross-references DENSO Auto Parts 221-9563 for the same application.
Common Problems This Part Can Address
- Engine overheating from a leaking or restricted radiator
- Coolant loss caused by cracked tanks or damaged core seams
- Transmission fluid temperature concerns related to a failed internal cooler
- Reduced cooling performance from corrosion or internal blockage
- Temperature instability in a 2016-2019 Nissan TITAN XD cooling system
Installation Notes and Tips
Verify inlet and outlet hose sizes before installation, and confirm the vehicle uses the correct radiator configuration for the 2016-2019 Nissan TITAN XD. Transfer any required hoses, sensors, or mounting components from the original assembly if they are not included with the replacement. Flush the cooling system before installing the new radiator, then refill and bleed the system according to Nissan service procedures to remove trapped air.
Quality Assurance
Global Parts radiator 13616C is built as a replacement cooling component for the TITAN XD platform and follows the listed OE-style dimensions and cooler configuration for proper fitment. Confirm all specifications against the original radiator before installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Nissan | TITAN XD | 5.0L | V8 | N/A | — |
| 2018 | Nissan | TITAN XD | 5.0L | V8 | N/A | — |
| 2017 | Nissan | TITAN XD | 5.0L | V8 | N/A | — |
| 2016 | Nissan | TITAN XD | 5.0L | V8 | N/A | — |
