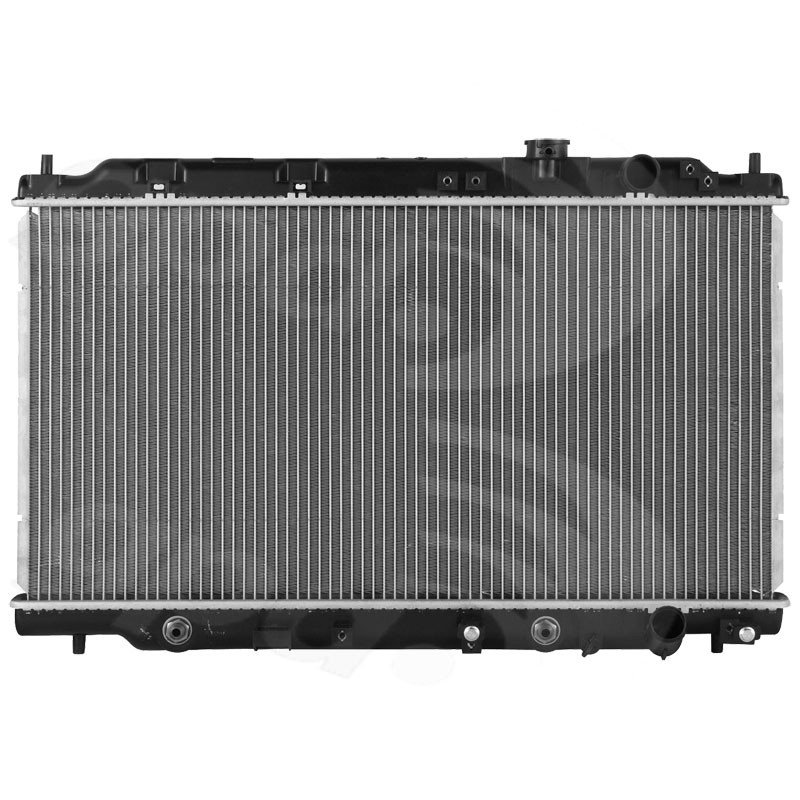

Global Parts 1568C Radiator

Overview of Global Parts Radiator 1568C for Acura Integra

The Global Parts radiator 1568C is designed specifically for Acura Integra models, providing reliable cooling performance. This radiator features a durable aluminum core and integrated transmission oil cooler to support engine and transmission efficiency.

• Core thickness: 16 mm
• Aluminum core material for effective heat dissipation
• Plastic tank construction for corrosion resistance
• Includes transmission oil cooler with tube fittings
• Down flow design for optimized coolant circulation
• Inlet diameter: 1.25 inches (31.75 mm)
• Outlet diameter: 1.3 inches (33.02 mm)
• Transmission oil cooler fitting diameter: 0.39 inches
• Transmission oil cooler distance between fittings: 12.8 inches
• Core fin quantity: 68 fins per 4 inches

Detailed Radiator Features and Specifications

The Global Parts 1568C radiator is engineered with a 16 mm thick aluminum core that ensures efficient heat transfer and durability. The plastic tanks reduce weight and resist corrosion, extending the radiator's service life. This radiator includes a built-in transmission oil cooler with tube fittings spaced 12.8 inches apart, facilitating proper transmission fluid cooling. The down flow design promotes effective coolant flow through the core, enhancing engine temperature regulation. Inlet and outlet diameters of 1.25 inches and 1.3 inches respectively are compatible with the Acura Integra's cooling system requirements. With 68 fins every 4 inches, the radiator maximizes surface area for heat dissipation.

Compatible Vehicles and Applications

This radiator is compatible with Acura Integra models requiring part number 1568C. It is designed to replace original equipment radiators that include integrated transmission oil coolers and match the specified core and fitting dimensions.

• Overheating issues due to radiator core damage or clogging
• Transmission fluid overheating from faulty or missing transmission oil cooler
• Coolant leaks from cracked or worn plastic tanks
• Reduced cooling efficiency from bent or damaged fins
• Engine temperature fluctuations caused by inadequate coolant flow

Installation Notes and Tips

When installing the Global Parts 1568C radiator on an Acura Integra, ensure all hose connections match the specified inlet and outlet diameters. Verify the transmission oil cooler fittings align with the 12.8-inch spacing and use appropriate tube fittings. Inspect and replace any worn hoses or clamps to prevent leaks. Bleed the cooling system properly after installation to avoid air pockets and ensure optimal coolant circulation.

Quality Assurance and Warranty

Global Parts radiators are manufactured to meet or exceed OEM specifications, using quality aluminum cores and durable plastic tanks. The 1568C radiator undergoes rigorous testing for leaks and structural integrity. Warranty coverage details should be confirmed with the distributor or retailer, as they may vary by region.
