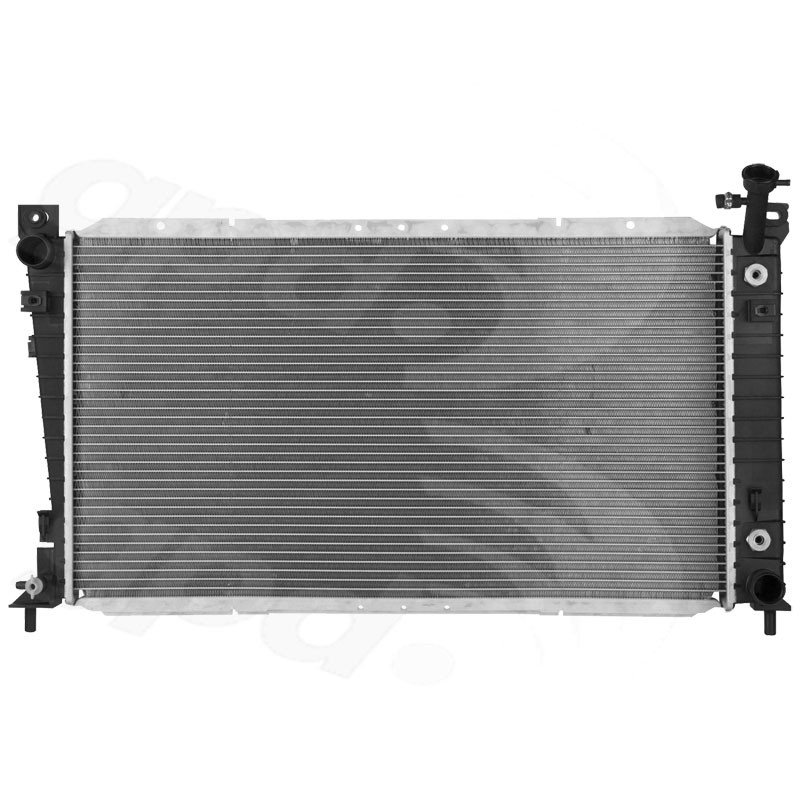

Global Parts 1609C Radiator

Overview of Global Parts Radiator 1609C for Ford Windstar

The Global Parts radiator part number 1609C is designed specifically for Ford Windstar models, providing reliable cooling performance. This radiator features a cross flow design and includes a transmission oil cooler to support your vehicle's cooling system needs.

• Core thickness: 1.02 inches (25.91 mm)
• Core material: Aluminum for efficient heat dissipation
• Plastic tank material for durability and corrosion resistance
• Includes transmission oil cooler with tube fittings
• Transmission oil cooler fitting diameter: 0.33 inches
• Transmission oil cooler distance between fittings: 12.01 inches
• Single core row with 56 fins every 4 inches
• Inlet diameter: 1.5 inches (38.1 mm)
• Cross flow radiator type for optimized coolant flow

Detailed Product Description

The Global Parts 1609C radiator is engineered with an aluminum core that measures 1.02 inches thick, providing effective heat transfer to maintain optimal engine temperature. The plastic tanks offer resistance to corrosion and reduce overall weight. This radiator is a cross flow type, which means coolant flows horizontally through the core, improving cooling efficiency in the Ford Windstar. It includes a built-in transmission oil cooler with tube fittings spaced 12.01 inches apart, supporting transmission fluid cooling without the need for additional components. The single core row design with 56 fins per 4 inches enhances airflow and heat dissipation, contributing to consistent engine performance.

Common Applications and Problem Solving

• Replaces worn or leaking radiators in Ford Windstar vehicles
• Addresses overheating issues caused by inefficient cooling
• Resolves transmission fluid overheating with integrated oil cooler
• Prevents coolant leaks from damaged plastic tanks
• Improves engine temperature regulation for better performance

Installation Notes and Tips

When installing the Global Parts radiator 1609C on a Ford Windstar, ensure all hose connections match the specified inlet diameter of 1.5 inches. Verify the transmission oil cooler fittings align with the 12.01-inch spacing and use appropriate tube fittings to avoid leaks. Properly bleed the cooling system after installation to remove air pockets and maintain optimal coolant flow. Inspect mounting points for secure fitment and check for any signs of damage during installation.

Quality Assurance and Warranty

Global Parts radiators are manufactured to meet OEM specifications for fit and function. The 1609C radiator undergoes quality control testing to ensure durability and performance. While specific warranty details may vary, Global Parts typically offers coverage against manufacturing defects. Consult product documentation or your supplier for exact warranty terms related to this radiator.
