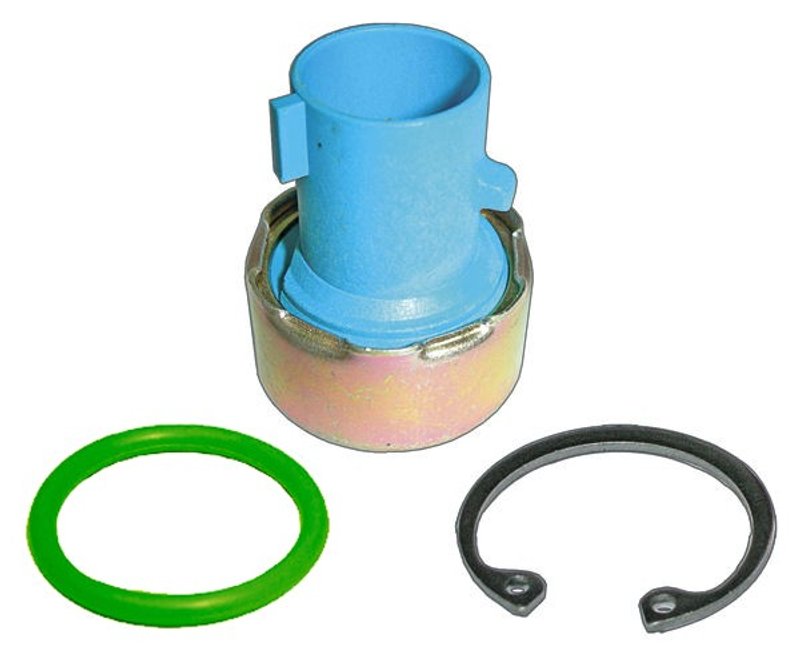

Global Parts 1711334 A/C Compressor Cut-Out Switch

A/C Compressor Cut-Off Switch for GM HVAC Systems

Global Parts 1711334 is an A/C compressor cut-off switch used in HVAC systems that rely on pressure feedback to protect the compressor. On modern vehicles, the ECM monitors the A/C system; on earlier applications, this switch can directly shut the compressor off when pressure conditions rise too high.

• Type: switch; compressor switch high pressure; blue 2-terminal
• Provides pressure-based feedback to the engine management system
• Used in A/C compressor protection circuits on select GM vehicles
• Direct replacement style for service on factory HVAC systems
• Global Parts part number 1711334

Detailed Product Overview

This A/C compressor cut-off switch is built for vehicles that use a high-pressure signal to manage compressor operation and prevent damage from excessive system pressure. It is a direct-fit service part for a wide range of Chevrolet, GMC, Buick, Cadillac, Pontiac, Oldsmobile, Geo, and Isuzu applications, including Chevrolet Astro, GMC Safari, Chevrolet S10, GMC Sonoma, Chevrolet Blazer, and GMC Jimmy. Global Parts 1711334 is also referenced by NGK 1402 and UAC SW2830C for the same application.

Use this switch when diagnosing A/C shutdown concerns, pressure-related compressor cycling, or HVAC control issues tied to the compressor cut-off circuit. The blue 2-terminal design matches the listed application requirements and supports factory-style electrical connection on compatible vehicles.

Vehicle Fitment

• Fits 1994-2005 Chevrolet Astro, N/A — A/C Compressor Cut-Out Switch with High Pressure, 2-Terminals, Blue
• Fits 1994-2005 GMC Safari, N/A — A/C Compressor Cut-Out Switch with High Pressure, 2-Terminals, Blue
• Fits 2004 Chevrolet Avalanche 2500, N/A — A/C Compressor Cut-Out Switch with High Pressure, 2-Terminals, Blue
• Fits 1994-2003 Buick Century, N/A — Comp Switch High Press
• Fits 1994-2003 Chevrolet S10, N/A — A/C Compressor Cut-Out Switch with High Pressure, 2-Terminals, Blue
• Fits 1994-2003 GMC Sonoma, N/A — A/C Compressor Cut-Out Switch with High Pressure, 2-Terminals, Blue
• Fits 1994-2002 Chevrolet Blazer, N/A — A/C Compressor Cut-Out Switch with High Pressure, 2-Terminals, Blue
• Fits 1994-2002 GMC Jimmy, N/A — A/C Compressor Cut-Out Switch with High Pressure, 2-Terminals, Blue
• Fits 1999-2000 Cadillac Escalade, N/A — A/C Compressor Cut-Out Switch with High Pressure, 2-Terminals, Blue
• Fits 1995-2000 Chevrolet Tahoe, N/A — A/C Compressor Cut-Out Switch with High Pressure, 2-Terminals, Blue

Common Repair Uses

• Restoring compressor shutoff function during high-pressure conditions
• Addressing A/C system cycling or intermittent compressor engagement
• Replacing a failed pressure switch in the compressor control circuit
• Correcting HVAC faults tied to pressure feedback signals
• Servicing factory A/C systems on GM trucks, vans, and SUVs

Installation Notes and Quality Assurance

Verify the connector style, terminal count, and pressure-switch application before installation. Confirm the vehicle’s A/C diagnosis and compare the existing switch to the listed blue 2-terminal configuration for proper match-up. This part is intended for factory-style HVAC service on the applications shown above.

Global Parts 1711334 is supplied as a replacement A/C compressor cut-off switch for listed fitments and cross-references with select OE and aftermarket numbers used on the same applications.
