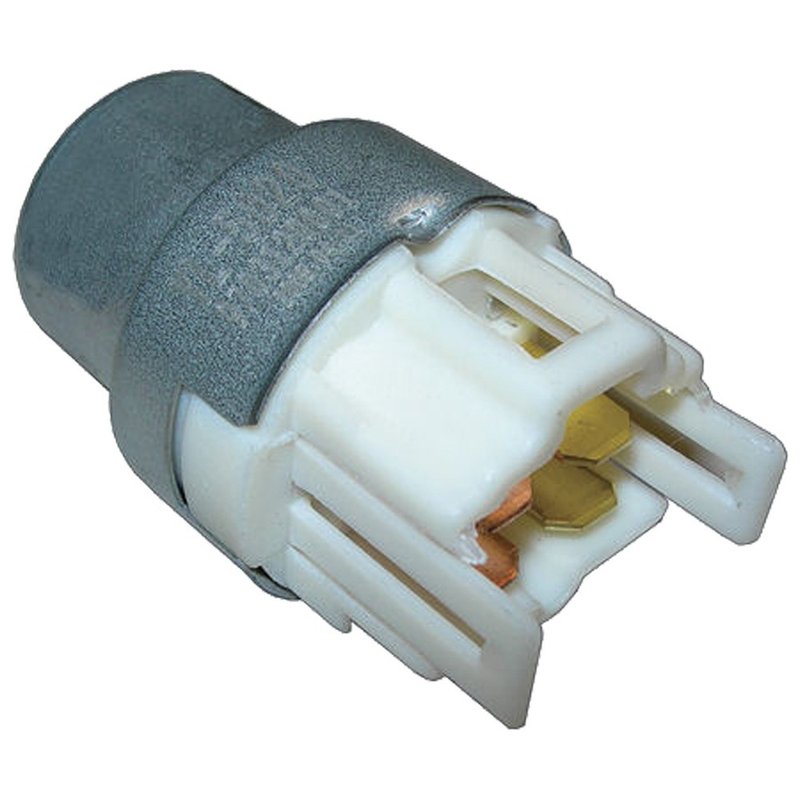

Global Parts 1711337 HVAC Blower Motor Relay

Reliable HVAC Blower Motor Relay for Suzuki and Toyota Vehicles

The Global Parts 1711337 HVAC Blower Motor Relay is designed to provide consistent performance for your vehicle's heating and cooling system. Engineered for select Suzuki and Toyota models, this 12-volt relay ensures proper operation of the blower motor, maintaining cabin comfort.

• 12-volt electrical system compatibility
• Blade terminal type for secure connections
• Rectangular female connector shape
• Four terminals with male and female genders
• 20-amp amperage rating suitable for HVAC blower motors
• Durable black housing for long-lasting use

Product Details and Specifications

The Global Parts 1711337 relay features a 12V voltage rating, making it compatible with standard automotive electrical systems found in Suzuki and Toyota vehicles. It includes four blade terminals, combining male and female terminal genders to ensure proper connectivity within the HVAC system. The rectangular female connector shape allows for a secure and precise fit, reducing the risk of loose connections or electrical faults. Rated at 20 amps, this relay is designed to handle the electrical load required by blower motors in models such as the Toyota Corolla, Celica, Land Cruiser, and Suzuki Sidekick, among others.

Compatible Vehicles and Applications

This HVAC blower motor relay is compatible with a range of Suzuki and Toyota vehicles, including:

• Suzuki Sidekick and X-90
• Toyota Corolla, Celica, Corona, Cressida
• Toyota Land Cruiser, Pickup, Tercel

It is specifically designed to replace faulty or worn blower motor relays in these models, ensuring reliable HVAC system operation.

Common Issues Addressed by This Relay

• Intermittent or non-functioning blower motor
• HVAC system failing to activate or maintain airflow
• Electrical faults causing blower motor relay failure
• Overheating or blown fuses related to blower motor circuits
• Unresponsive climate control blower speeds

Installation Notes and Tips

When installing the Global Parts 1711337 relay, ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical shock. Verify the connector shape and terminal configuration match the original relay to avoid compatibility issues. Properly seat the rectangular female connector and confirm all four blade terminals are securely connected. Testing the blower motor operation after installation is recommended to confirm correct relay function.

Quality Assurance and Warranty

Global Parts manufactures this HVAC blower motor relay to meet industry standards for durability and electrical performance. While specific warranty details are not provided, Global Parts products typically undergo quality control testing to ensure reliable operation in compatible Suzuki and Toyota vehicles. For additional warranty information, refer to the product packaging or contact the manufacturer directly.
