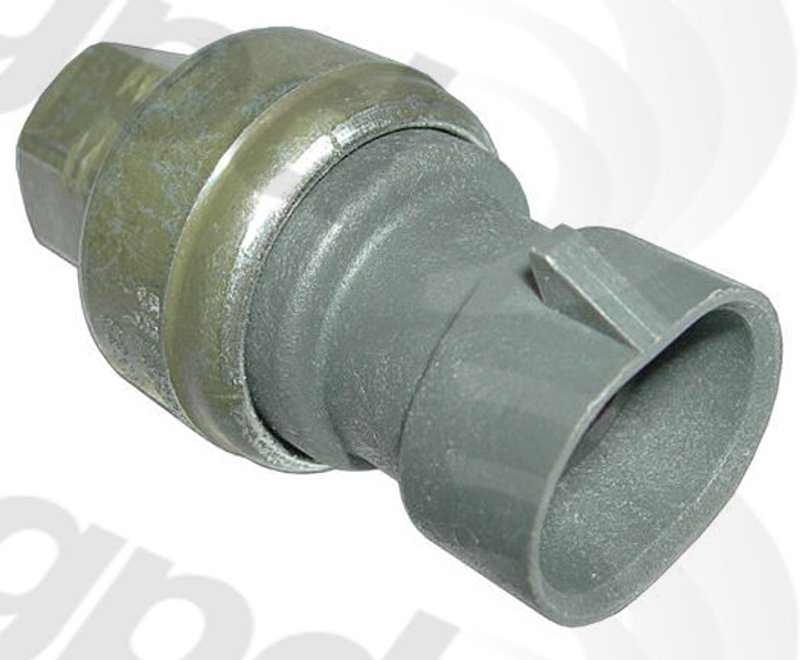

Global Parts 1711367 HVAC Pressure Switch

HVAC Pressure Switch for Jeep Cherokee

Global Parts 1711367 is an HVAC pressure switch that monitors refrigerant pressure and sends feedback to the engine management system. On modern systems, the ECM uses this signal to control A/C operation; on earlier systems, it can directly shut the compressor off to help prevent damage.

Compatible with 1994-1996 Jeep Cherokee applications, this pressure switch is built for line- or drier-mounted high-pressure cut-out use. The binary normally open design and M10-1.25 female threads make it a direct-fit service part for the specified vehicle range.

Key Features

• HVAC pressure switch for A/C system pressure monitoring
• Binary normal open design
• M10-1.25 female thread connection
• High-pressure open at 450 psi and close at 335 psi
• Low-pressure close at 32 psi
• Line or drier mounted application
• Fits 1994-1996 Jeep Cherokee, high pressure cut-out switch location

Detailed Description

Global Parts 1711367 is engineered for Jeep Cherokee HVAC service where accurate refrigerant pressure feedback is required. It supports compressor protection by signaling the control system when pressure reaches the specified thresholds, helping the A/C system respond correctly under high- and low-pressure conditions. This part cross-references Gates 36492 for the same application.

Use Global Parts 1711367 when servicing a 1994-1996 Jeep Cherokee with a line- or drier-mounted high pressure cut-out switch. The part number 1711367 is also a useful reference when matching the correct HVAC pressure switch for these Jeep Cherokee model years.

What It Helps Address

• A/C compressor shutdown caused by incorrect pressure switch operation
• Loss of refrigerant pressure signal to the ECM
• High-pressure cut-out faults in the HVAC circuit
• Intermittent compressor engagement on Jeep Cherokee A/C systems
• Pressure-related compressor protection issues

Installation Notes and Tips

Verify the connector style, thread size, and pressure thresholds before installation. Confirm the switch location on the line or drier and compare the original part number, including 1711367, against the removed component. For 1994-1996 Jeep Cherokee service, match the high pressure cut-out switch specification to the vehicle’s A/C system layout.

Quality Assurance

Global Parts supplies HVAC service components for vehicle-specific repair applications. This pressure switch is listed with defined operating thresholds and interchange references to support accurate part matching for Jeep Cherokee A/C service.
