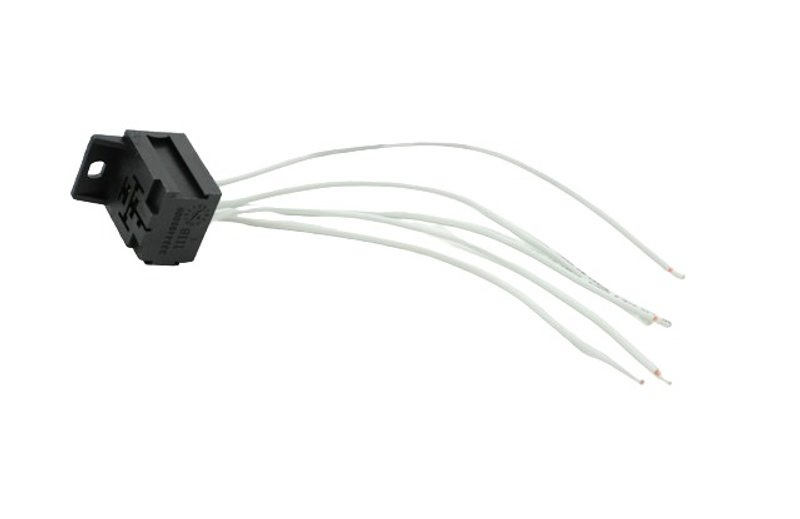

Global Parts 1711659 HVAC Relay Connector

HVAC Relay Connector for A/C Control

Global Parts 1711659 is a black HVAC relay connector built for 5-pin, female-to-female electrical connections in the air conditioning circuit. It is used on vehicles where the engine management system or A/C control logic monitors the switch signal to manage compressor operation and protect the system.

• Black connector body with square shape
• 5 connector pins and 5 female spade terminals
• Female connector and female terminal gender
• 5-wire configuration for HVAC relay applications
• Direct replacement style for select Chrysler, Dodge, Jeep, Ford, GM, Audi, Volkswagen, and Cadillac applications

Detailed Product Information

This HVAC relay connector is designed for vehicles that use a black 5-pin pigtail without a shroud. In modern systems, the ECM may control A/C operation through the relay circuit; in earlier systems, the connector supports direct compressor shutoff control to help prevent compressor failure. Global Parts 1711659 is a practical replacement for worn, heat-damaged, or broken connector housings in the HVAC electrical circuit. This part cross-references Four Seasons 37211 for the same application.

Common search terms for this part include HVAC relay connector for 1993-2004 Dodge Intrepid, A/C relay pigtail for 1984-2001 Jeep Cherokee, and black 5-pin HVAC connector for 1990s Chrysler and GM vehicles. It also appears in fitment for models such as Chevrolet Corvette, Ford E-Series vans, and Audi A6 applications. Part number 1711659 is also referenced in interchange listings for related aftermarket service needs.

What This Part Helps Fix

• Broken or melted A/C relay connector housing
• Intermittent compressor engagement caused by damaged terminals
• Corrosion at the HVAC electrical connection
• Loose or poor contact at the relay pigtail
• Failed compressor control signal at the connector

Installation Notes and Fitment Tips

Fits 1993-2004 Dodge Intrepid, N/A; 1998-2003 Buick Century, N/A; 1984-2001 Jeep Cherokee, N/A; 1997-2001 Lincoln Continental, N/A; 1995-2000 Chrysler Cirrus, N/A; 1996-2000 Chrysler Sebring, N/A; 1996-2000 Plymouth Breeze, N/A; 1993-1998 Jeep Grand Cherokee, N/A; 1993-1997 Chevrolet Camaro, N/A; 1993-1997 Pontiac Firebird, N/A; 1995-1996 Audi A6, N/A; 1995-1996 Audi A6 Quattro, N/A; 1990-1996 Chevrolet Corvette, N/A; 1996 Chevrolet Lumina APV, N/A; 1993-1994 Chevrolet Lumina APV, N/A; 1996 Chevrolet Lumina Van, N/A; 1995-1996 Chevrolet Tahoe, N/A; 1992-1996 Chrysler Town & Country, N/A; 1992-1996 Ford E-150 Econoline, N/A; 1992-1996 Ford E-150 Econoline Club Wagon, N/A; 1992-1996 Ford E-250 Econoline, N/A; 1992-1996 Ford E-350 Econoline, N/A; 1992-1996 Ford E-350 Econoline Club Wagon, N/A; 1996 Pontiac Trans Sport, N/A; 1994 Pontiac Trans Sport, N/A; 1992 Pontiac Trans Sport, N/A; 1990 Pontiac Trans Sport, N/A; 1991-1995 Cadillac DeVille, N/A; 1981-1989 Cadillac DeVille, N/A; 1984-1995 Dodge Caravan, N/A; 1988-1995 Dodge Grand Caravan, N/A; 1987-1995 Jeep Wrangler, N/A; 1989-1994 Audi 100, N/A; 1989-1994 Audi 100 Quattro, N/A; 1993-1994 Audi 90, N/A; 1988-1991 Audi 90, N/A; 1993-1994 Audi 90 Quattro, N/A; 1988-1991 Audi 90 Quattro, N/A; 1987-1994 Buick Regal, N/A; 1990-1994 Chrysler LeBaron, N/A; 1994 GMC Yukon, N/A; 1992 GMC Yukon, N/A; 1988-1994 Oldsmobile Cutlass Supreme, N/A; 1992-1994 Plymouth Grand Voyager, N/A; 1992-1994 Plymouth Voyager, N/A; 1987-1993 Buick LeSabre, N/A; 1991-1993 Buick Park Avenue, N/A; 1986-1993 Buick Riviera, N/A; 1991-1993 Buick Roadmaster, N/A; 1990-1993 Chevrolet Lumina, N/A; 1990-1993 Chrysler New Yorker, N/A; 1988-1993 Pontiac Grand Prix, N/A; 1988-1993 Pontiac LeMans, N/A; 1988-1992 Audi 80, N/A; 1988-1992 Audi 80 Quattro, N/A; 1990-1992 Chrysler Imperial, N/A; 1991-1992 Dodge Daytona, N/A; 1984 Dodge Daytona, N/A; 1992 Dodge Spirit, N/A; 1986-1992 Jeep Comanche, N/A; 1992 Oldsmobile Silhouette, N/A; 1990 Oldsmobile Silhouette, N/A; 1986-1992 Oldsmobile Toronado, N/A; 1990-1992 Volkswagen Corrado, N/A; 1987-1992 Volkswagen Fox, N/A; 1988-1991 Buick Reatta, N/A; 1981-1991 Cadillac Eldorado, N/A; 1981-1991 Cadillac Seville, N/A; 1978 Cadillac Seville, N/A; 1984-1991 Jeep Grand Wagoneer, N/A; 1988-1991 Oldsmobile 98, N/A; 1988-1991 Oldsmobile Delta 88, N/A; 1988-1991 Pontiac Bonneville, N/A; 1981-1989 Cadillac Commercial Chassis, N/A; 1981-1989 Cadillac Fleetwood, N/A; 1988-1989 Oldsmobile Custom Cruiser, N/A; 1988-1989 Pontiac Safari, N/A; 1985-1989 Volkswagen Jetta, N/A; 1988 Dodge 600, N/A; 1983-1985 Dodge 600, N/A; 1988 Dodge Aries, N/A; 1983-1985 Dodge Aries, N/A; 1988 Dodge Lancer, N/A; 1988 Dodge Shadow, N/A; 1985-1988 Volkswagen Golf, N/A; 1982-1988 Volkswagen Quantum, N/A; 1980-1987 Audi 4000, N/A; 1984-1987 Audi 4000 Quattro, N/A; 1984-1987 Jeep Wagoneer, N/A; 1980-1984 Dodge Colt, N/A; 1983-1984 Volkswagen Rabbit Convertible, N/A.

Before installation, confirm the connector matches the black 5-pin, square, no-shroud configuration and verify terminal orientation against the original harness. Inspect the relay, terminals, and nearby wiring for heat damage or corrosion before reconnecting the HVAC circuit.

Quality Assurance

Global Parts 1711659 is built as a service replacement HVAC relay connector for electrical repair work on the A/C control circuit. Its OE-style connector layout and confirmed interchange references support accurate replacement selection for the listed vehicle applications.
