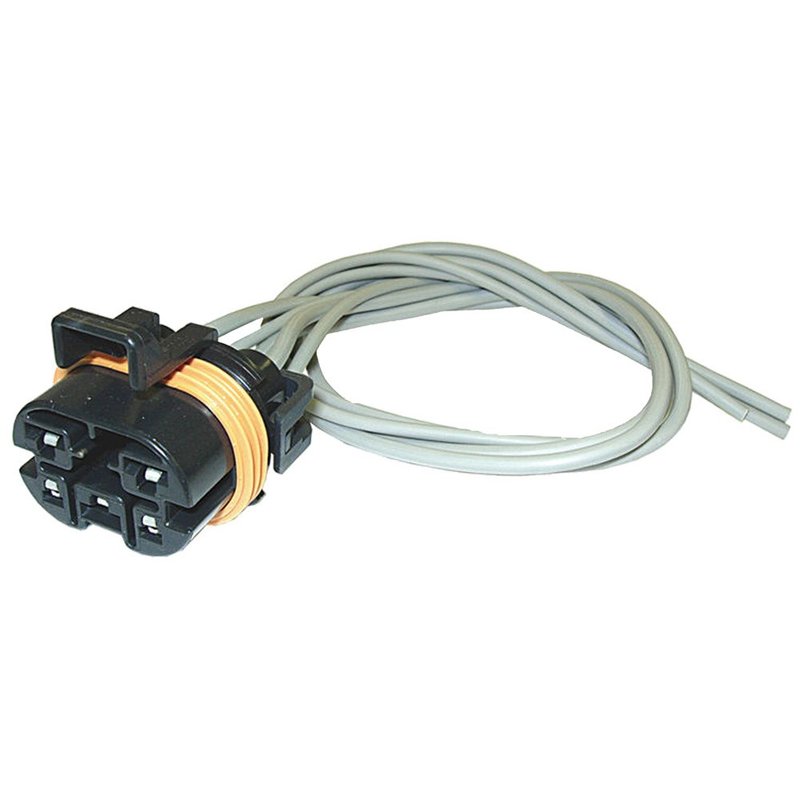

Global Parts 1712014 HVAC Relay Connector

Reliable HVAC Relay Connector for Select GM Vehicles

The Global Parts 1712014 HVAC relay connector is designed to provide a secure and efficient electrical connection for your vehicle's HVAC system. Engineered with a 5-terminal female blade design, this black connector supports reliable performance in various Buick, Chevrolet, GMC, Oldsmobile, and Pontiac models.

• Terminal Type: Female blade terminals for secure connections
• Terminal Quantity: 5 terminals to accommodate multiple wire connections
• Wire Quantity: Supports 5 wires for comprehensive HVAC relay wiring
• Color: Black for easy identification and integration
• Compatible with a wide range of GM vehicles including Chevrolet Blazer, GMC C1500, Pontiac Firebird, and more

Technical Details and Compatibility

This HVAC relay connector (part number 1712014) features five female blade terminals designed to ensure a stable electrical connection within the HVAC system. The black housing provides durability and resistance to environmental factors commonly found under the hood. It supports five wires, making it suitable for complex HVAC relay circuits. This connector is compatible with multiple GM makes and models such as Buick Century, Chevrolet Camaro, GMC K1500, Oldsmobile Cutlass Ciera, and Pontiac Trans Sport, among others.

Applications and Problem Solving

This connector is primarily used in HVAC relay circuits to maintain proper electrical flow and system functionality. It addresses several common issues including:

• Intermittent HVAC blower motor operation due to faulty relay connections
• HVAC system failures caused by damaged or corroded connectors
• Electrical shorts or open circuits within the HVAC relay wiring harness
• Replacement of worn or broken relay connectors in GM trucks and SUVs
• Ensuring consistent HVAC performance in vehicles like the Chevrolet C1500 Suburban and Pontiac Firebird

Installation Notes and Tips

When installing the Global Parts 1712014 HVAC relay connector, ensure all terminals are clean and free of corrosion before connection. Verify that the female blade terminals align correctly with the relay pins to avoid loose connections. Use appropriate tools to secure wiring and avoid damaging the terminals. This connector is designed for direct replacement in compatible GM models, simplifying the installation process.

Quality Assurance and Warranty

Global Parts manufactures this HVAC relay connector to meet OEM specifications for fit and function. While specific warranty details are not provided, Global Parts products typically undergo quality control to ensure durability and reliable performance in automotive electrical systems.
