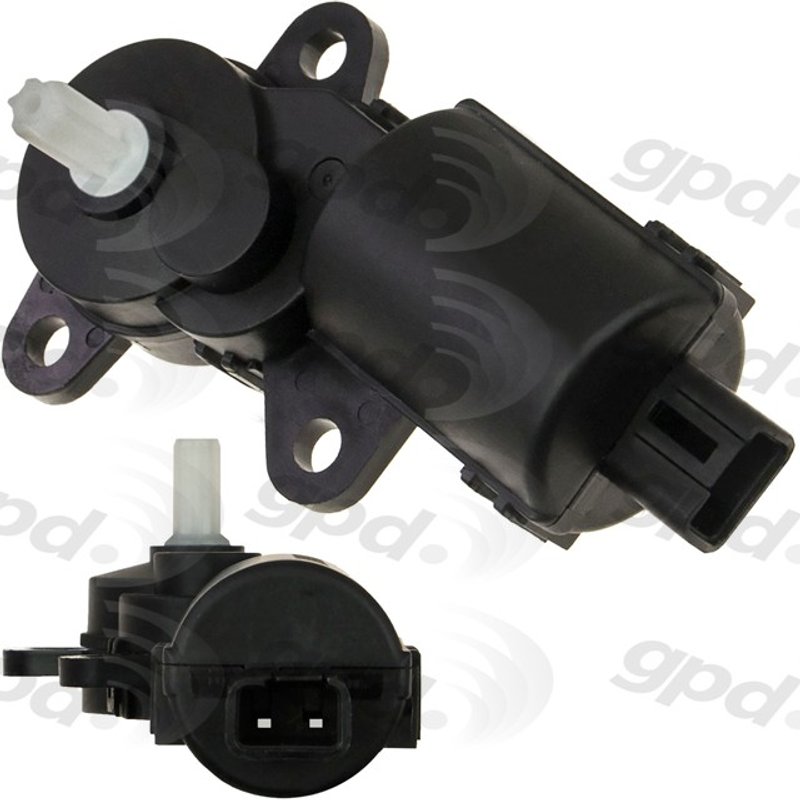

Global Parts 1712154 HVAC Mode Door Actuator

HVAC Mode Door Actuator for GM Applications

Global Parts 1712154 is an HVAC mode door actuator used in select Chevrolet vehicles to control air distribution inside the cabin. It is a direct-fit replacement for applications that need accurate HVAC door movement and electronic feedback to the engine management system.

• HVAC mode door actuator for select Chevrolet Impala, Impala Limited, Malibu, and Monte Carlo applications
• Supports electronic HVAC control feedback used by the ECM on modern systems
• OE-style replacement for restoring proper air outlet direction control
• Cross-references Dorman OE Solutions 604-134 and Standard Ignition ADR4212 for the same application
• Global Parts part number 1712154

Detailed Product Information

This Global Parts HVAC mode door actuator is built for vehicles that rely on electronic control of the HVAC system. In modern systems, the actuator communicates position feedback so the ECM can manage A/C operation and airflow routing. In earlier vehicle designs, similar components were used to directly shut off the compressor to help prevent compressor damage. Part number 1712154 is a practical replacement when the original actuator no longer responds correctly or the cabin air direction is inconsistent.

Vehicle Fitment

• Fits 2014-2016 Chevrolet Impala Limited, N/A, Mode Door Actuator
• Fits 2007-2013 Chevrolet Impala, N/A, Mode Door Actuator
• Fits 2004 Chevrolet Impala, N/A, Mode Door Actuator
• Fits 2005-2006 Chevrolet Impala, N/A, Fits HVAC Recirculation Door Actuator in various vehicles.
• Fits 2005 Chevrolet Malibu, N/A, Fits HVAC Recirculation Door Actuator in various vehicles.
• Fits 2005 Chevrolet Monte Carlo, N/A, Mode Door Actuator

Common Symptoms This Part Can Address

• Airflow stuck on one vent position
• Inconsistent switching between floor, dash, and defrost outlets
• HVAC controls that do not respond as expected
• Recirculation or mode door movement problems in supported Chevrolet applications
• Loss of proper cabin air direction control

Installation Notes

Verify the original actuator style and connector match the vehicle before installation. On Chevrolet Impala, Chevrolet Malibu, and Chevrolet Monte Carlo applications, confirm the HVAC door location and the exact service position listed for the vehicle. After installation, cycle the HVAC controls to allow the system to relearn door positions if required by the vehicle.

Quality Assurance

Global Parts 1712154 is an OE-style replacement part designed for electronic HVAC control applications. It cross-references Dorman OE Solutions 604-134 and Standard Ignition ADR4212 for the same application.
