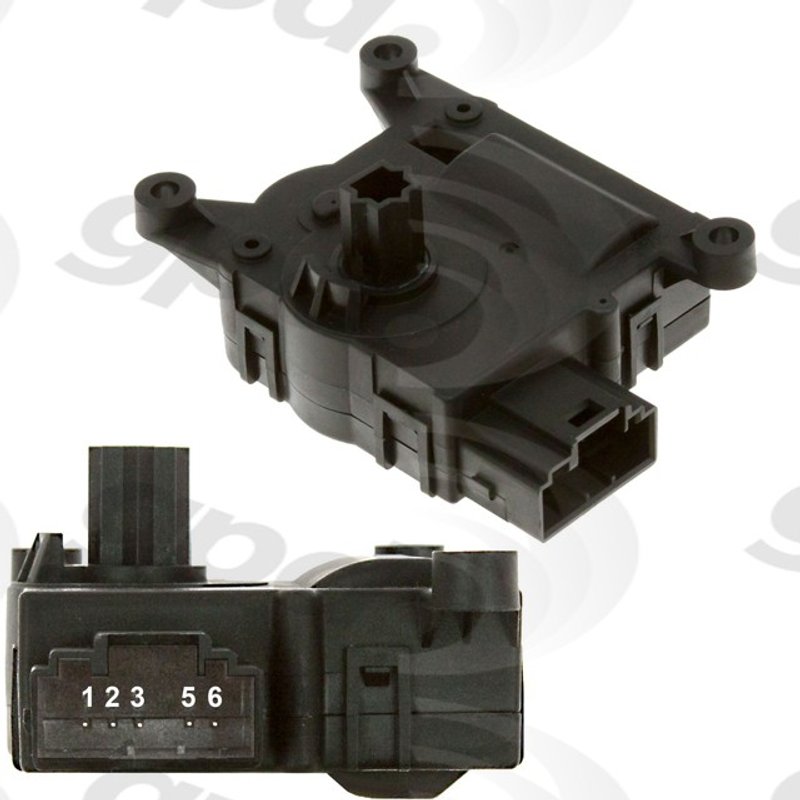

Global Parts 1712274 HVAC Mode Door Actuator
OE Quality 60-Day Returns
Global Parts

Global Parts 1712274 HVAC Mode Door Actuator

Brand Global Parts 1712274
Fits Ford · 28 vehicles

Mode door control. Opens and closes selected vents for precise airflow direction.

Climate setting adjustment. Helps the HVAC system respond to selected comfort settings.

Cross-references Dorman - OE Solutions 604-281, Four Seasons 73202 and Pioneer Automotive Industries 604281 for the same application. See all 11.

$34.93Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $34.93
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all HVAC Mode Door Actuator options

HVAC Mode Door Actuator for Ford Super Duty

Global Parts 1712274 is an HVAC mode door actuator that helps direct cabin airflow to the selected vents. It is a direct-fit replacement for select Ford Super Duty trucks with main HVAC system or right-side mode door applications.

  • HVAC mode door actuator for airflow direction control
  • Supports vent selection by opening and closing the mode door
  • Fits 2011-2015 Ford F-250 Super Duty, main HVAC system
  • Fits 2011-2015 Ford F-350 Super Duty, main HVAC system
  • Fits 2016-2017 Ford F-250 Super Duty, right mode door actuator
  • Fits 2016-2017 Ford F-350 Super Duty, right mode door actuator

How It Works

The actuator responds to climate control commands and moves the HVAC mode door so air is routed to the dash, floor, or defrost outlets as selected. Global Parts 1712274 is listed for Ford F-250 Super Duty and Ford F-350 Super Duty applications across 2011-2017 model years, with fitment that varies by HVAC position and year.

This part cross-references Dorman OE Solutions 604-281 for the same application.

Common Problems It Can Address

  • Airflow stuck at one vent setting
  • No change when switching between dash, floor, and defrost modes
  • Clicking or repeated movement from a worn actuator
  • Inconsistent cabin air distribution in the HVAC system
  • Mode door response issues on Ford F-250 Super Duty and Ford F-350 Super Duty trucks

Installation Notes

Verify the vehicle year, model, and HVAC position before ordering. This actuator is listed for the main HVAC system on 2011-2015 Ford F-250 Super Duty and Ford F-350 Super Duty, and for the right mode door position on 2016-2017 Ford F-250 Super Duty and Ford F-350 Super Duty. Confirm connector style and mounting location against the original unit before installation.

Quality Assurance

Global Parts 1712274 is built as an OE-style HVAC replacement for the listed Ford Super Duty applications. It is cataloged under part number 1712274 for straightforward identification during service and replacement.

Related reading

This part fits 28 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2017FordF-250 Super Duty6.2LV8N/AMode Door Actuator; Right
2017FordF-250 Super Duty6.7LV8N/AMode Door Actuator; Right
2017FordF-350 Super Duty6.2LV8N/AMode Door Actuator; Right
2017FordF-350 Super Duty6.7LV8N/AMode Door Actuator; Right
2016FordF-250 Super Duty6.2LV8N/AMode Door Actuator; Right
2016FordF-250 Super Duty6.7LV8N/AMode Door Actuator; Right
2016FordF-350 Super Duty6.2LV8N/AMode Door Actuator; Right
2016FordF-350 Super Duty6.7LV8N/AMode Door Actuator; Right
2015FordF-250 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2015FordF-250 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
2015FordF-350 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2015FordF-350 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
2014FordF-250 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2014FordF-250 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
2014FordF-350 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2014FordF-350 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
2013FordF-250 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2013FordF-250 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
2013FordF-350 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2013FordF-350 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
2012FordF-250 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2012FordF-250 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
2012FordF-350 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2012FordF-350 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
2011FordF-250 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2011FordF-250 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
2011FordF-350 Super Duty6.7LV8N/AMode Door Actuator for main HVAC system.
2011FordF-350 Super Duty6.2LV8N/AMode Door Actuator for main HVAC system.
Directly replaces or cross-references 11 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 604-281Four Seasons — 73202Pioneer Automotive Industries — 604281Standard Ignition — ADR4244ADA291ADS4244BC3Z19E616CBC3Z19E616DBC3Z19E616EBC3Z19E616FDA1191
