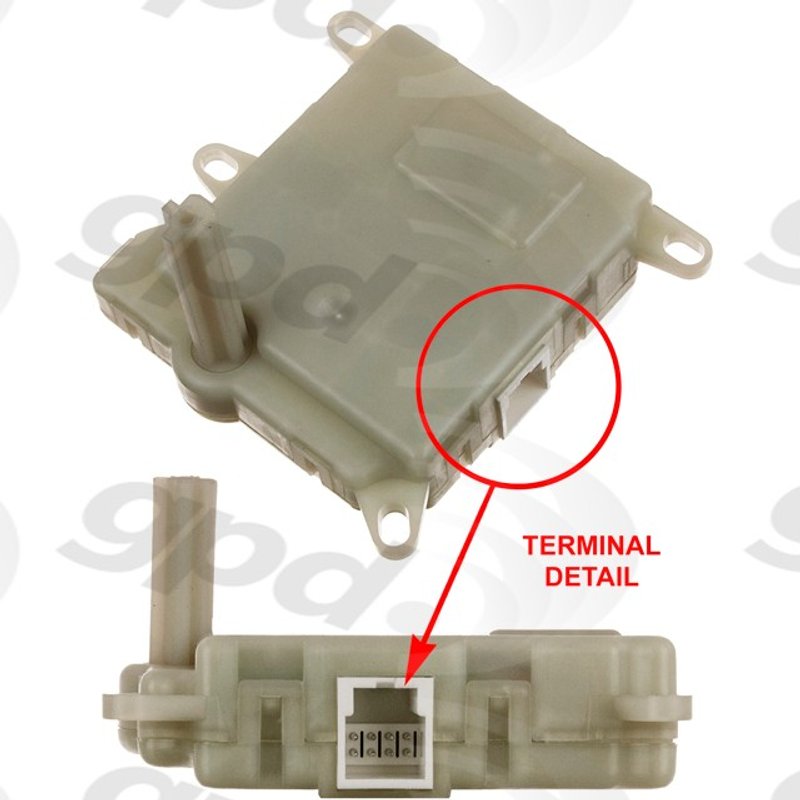

Global Parts 1712306 HVAC Blend Door Actuator

HVAC Blend Door Actuator for Ford and Lincoln

Global Parts 1712306 is an HVAC blend door actuator that responds to climate control settings by moving the blend door, mode door, or recirculation function as required by the system. It is a direct-fit replacement for select Ford Expedition and Lincoln Navigator applications, including rear and main HVAC locations with the listed drivetrain and wheelbase notes.

• HVAC blend door actuator for climate control operation
• Controls air temperature through the blend door
• Supports vent selection through the mode door
• Manages air intake through the recirculation function
• Fits 2009-2014 Ford Expedition, rear, with 119-inch wheelbase
• Fits 2009-2014 Lincoln Navigator, 114-inch wheelbase
• Fits 2003-2006 Ford Expedition, main, with dual auto A/C
• Fits 2003-2006 Lincoln Navigator, cross-shaped driveshaft; refer to image

Fitment Details

Use Global Parts 1712306 when replacing a failed HVAC actuator on select Ford Expedition and Lincoln Navigator models. This part cross-references Dorman OE Solutions 604-277 for the same application.

Global Parts 1712306 is listed for 2003-2006 Ford Expedition and 2003-2006 Lincoln Navigator main HVAC applications, plus 2009-2014 Ford Expedition rear HVAC and 2009-2014 Lincoln Navigator configurations noted above. Confirm the vehicle’s wheelbase, HVAC location, and drive-shaft note before ordering.

Common Symptoms It Can Address

• Temperature changes that do not respond to the control setting
• Airflow stuck at one vent position
• Recirculation mode that does not switch properly
• Clicking or repeated actuator movement behind the dash
• Uneven cabin comfort between front or rear HVAC zones

Installation Notes

Verify the actuator location, connector style, and mounting position against the original unit before installation. On 2003-2006 Lincoln Navigator applications, confirm the cross-shaped driveshaft note; on 2009-2014 Ford Expedition and Lincoln Navigator applications, confirm the listed wheelbase and rear or main HVAC placement.

Quality Assurance

Global Parts 1712306 is built as an OE-style replacement for the specified Ford Expedition and Lincoln Navigator fitments. The manufacturer describes this actuator as a component that adjusts to selected climate settings by moving the HVAC doors that control temperature, vent direction, and recirculation.
