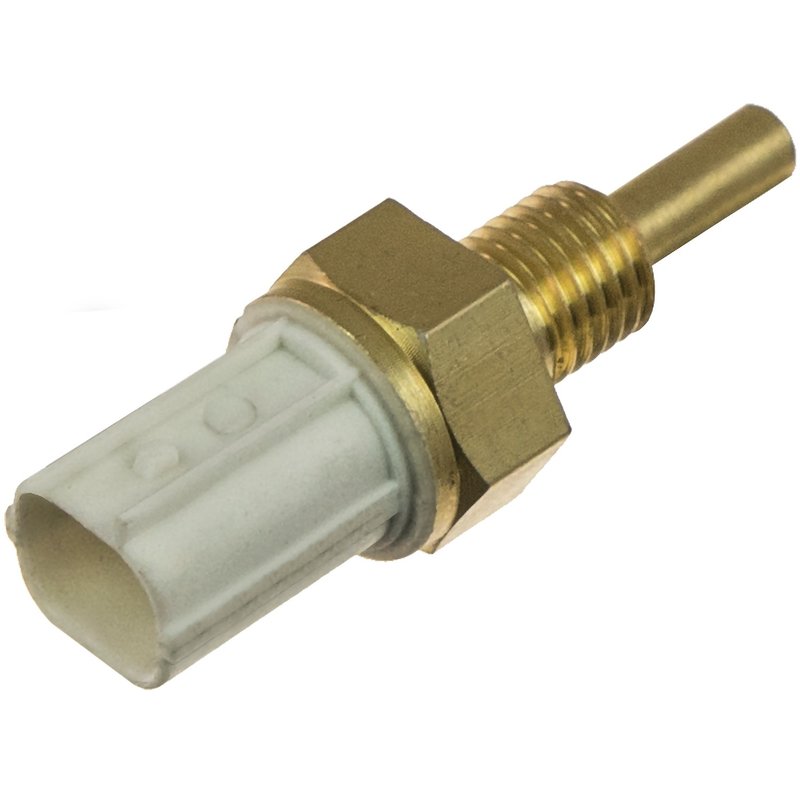

Global Parts 1712511 Engine Coolant Temperature Sensor

Engine Coolant Temperature Sensor for Honda and Acura

Global Parts 1712511 is an engine coolant temperature sensor that sends coolant temperature feedback to the engine management system. On modern vehicles, that signal helps the ECM manage A/C operation; on earlier applications, it can directly shut the compressor off to help prevent compressor damage.

• Engine coolant temperature sensor for temperature feedback to the ECM
• Supports A/C control logic on modern vehicle systems
• Used in earlier systems to help protect the compressor from failure
• M20 thread, 2-terminal design on listed applications
• Fits a wide range of Honda Civic, Accord, CR-V, Element, Pilot, Ridgeline, Odyssey, S2000, Fit, and Acura models

Fitment Details

• Fits 2021-2022 Subaru Ascent, Engine Block
• Fits 2015 Acura RDX, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2001-2011 Honda Civic, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2006-2011 Honda Element, N/A; Coolant Temp Sensor; Located on water passage and thermostat housing; M20 Thread; 2 Terminal
• Fits 2005-2009 Honda S2000, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2005-2008 Acura RL, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2004-2008 Acura TL, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2004-2008 Acura TSX, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2008 Honda Fit, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2005-2008 Honda Pilot, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2006-2008 Honda Ridgeline, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2003-2007 Honda Accord, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2002-2006 Acura RSX, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2002-2006 Honda CR-V, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2005-2006 Honda Odyssey, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2003-2005 Acura MDX, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal
• Fits 2003-2005 Honda Element, N/A; Coolant Temp Sensor; M20 Thread; 2 Terminal

What This Sensor Helps Address

• Incorrect coolant temperature readings at the ECM
• A/C compressor shutdown caused by faulty temperature input
• Hard starting or drivability issues related to temperature signal errors
• Cooling system warning behavior tied to sensor failure
• Intermittent temperature-related engine management faults

Installation Notes

Verify the connector style, M20 thread, and terminal count before installation. On listed Honda and Acura applications, location can vary by engine; for example, some Element applications place the sensor on the water passage and thermostat housing. Confirm the vehicle year, make, model, and engine location against the existing part before replacement.

Quality Assurance

Global Parts 1712511 is built as a direct-fit replacement for the listed applications and cross-references Four Seasons 37860 and Standard Ignition TX97 for the same application.
