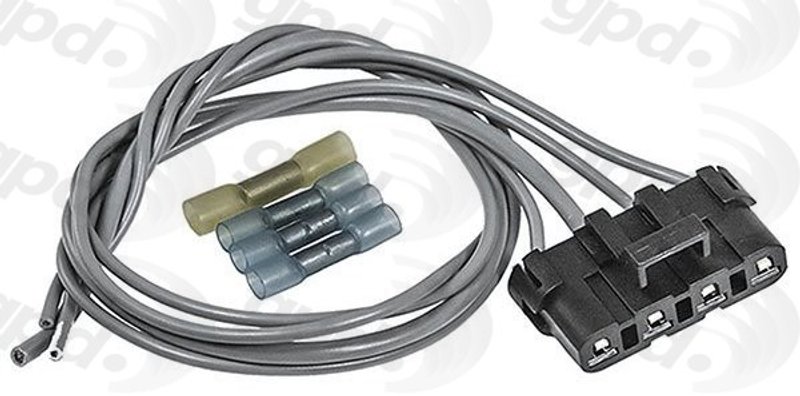

Global Parts 1712896 HVAC Blower Motor Resistor Harness

Overview of Global Parts HVAC Blower Motor Resistor Harness

The Global Parts HVAC Blower Motor Resistor Harness (Part Number 1712896) is designed to provide reliable electrical connectivity for the blower motor resistor system. This harness is compatible with various Chevrolet, GMC, and Oldsmobile models, ensuring proper fit and function in your vehicle's HVAC system.

• Compatible with Chevrolet, GMC, and Oldsmobile vehicles
• Fits models including Blazer, Bravada, C35, C1500, C2500, C3500, Jimmy, K1500, K2500, K3500, S10, Silverado, Silverado 2500, Sonoma, Tahoe, and Yukon
• Features 4 terminals with female terminal gender
• Male gender connector for secure connection
• Part Number 1712896 for precise identification

Technical Details and Attributes

This HVAC blower motor resistor harness includes a male connector designed to interface with the vehicle’s wiring system. It has four female terminals, which provide a stable and secure connection to the blower motor resistor. The terminal configuration ensures compatibility with the original equipment wiring harness, maintaining the integrity of the HVAC electrical system.

Compatible Vehicles and Applications

This harness is specifically compatible with a range of Chevrolet, GMC, and Oldsmobile vehicles. It is suitable for models such as the Chevrolet Blazer, Silverado, and Tahoe, GMC Jimmy and Sierra series, as well as Oldsmobile Bravada. Using the correct part number 1712896 ensures proper fitment and function in these vehicles’ HVAC blower motor resistor circuits.

Common Issues Addressed by This Harness

• Intermittent blower motor operation due to faulty wiring connections
• HVAC blower motor resistor failure caused by damaged harness terminals
• Electrical shorts or open circuits in the blower motor resistor wiring
• Loss of blower speed control in Chevrolet, GMC, or Oldsmobile HVAC systems
• Corrosion or wear in original harness connectors affecting blower motor performance

Installation Notes and Tips

When installing the Global Parts HVAC Blower Motor Resistor Harness (1712896), ensure the vehicle’s battery is disconnected to prevent electrical shorts. Verify that the male connector aligns correctly with the vehicle’s wiring harness and that all four female terminals are securely seated. Inspect the existing wiring for damage before installation and replace any worn components to maintain system reliability.

Quality Assurance and Warranty

Global Parts manufactures this blower motor resistor harness to meet OEM specifications for fit and function. The part number 1712896 undergoes quality checks to ensure durability and electrical performance. Please refer to Global Parts’ warranty policy for coverage details on this HVAC component.
