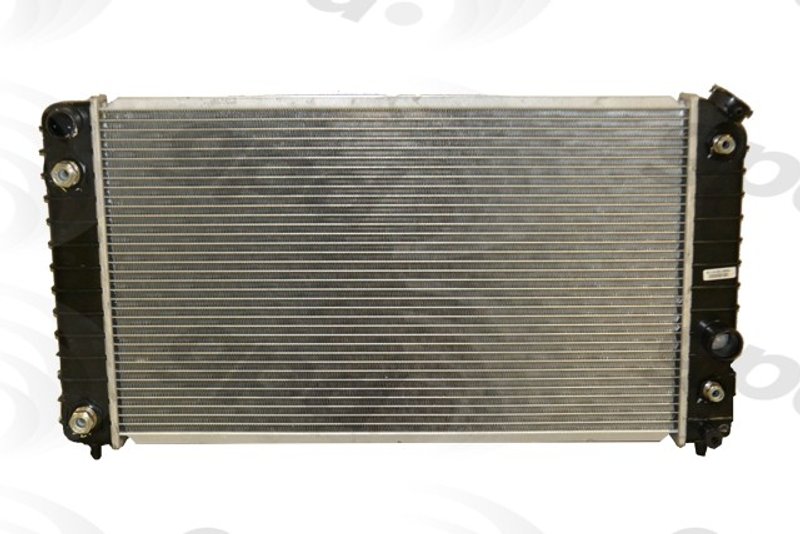

Global Parts 1826C Radiator

Overview of Global Parts Radiator 1826C

The Global Parts radiator 1826C is engineered for reliable cooling performance in Chevrolet, GMC, Isuzu, and Oldsmobile vehicles. Designed specifically for models like the Blazer, Bravada, Hombre, Jimmy, S10, and Sonoma, this radiator supports efficient engine and transmission cooling.

• Core dimensions: 26.25 inches width, 15 inches height, 1.13 inches thickness
• Constructed with an aluminum core and plastic tanks for durability and heat dissipation
• Includes internal engine and transmission oil coolers for integrated cooling
• Cross flow design with bottom right outlet location
• Compatible with Chevrolet Blazer, GMC Jimmy, Isuzu Hombre, Oldsmobile Bravada, and S10 Sonoma

Technical Specifications and Features

This radiator features a single-row core with 73 fins spaced every 4 inches, optimizing heat exchange. The core measures 666.75 mm (26.25 inches) wide by 381 mm (15 inches) high, with a thickness of 28.7 mm (1.13 inches). The aluminum core material ensures effective heat transfer, while the plastic tanks reduce weight and resist corrosion.

The radiator includes both an internal engine oil cooler and a transmission oil cooler, each with fittings spaced 11.5 inches apart. The inlet header width is 35.05 mm (1.38 inches) and the outlet header width is 60.45 mm (2.38 inches). The inlet diameter is 33.27 mm (1.31 inches) and the outlet diameter is 40.64 mm (1.6 inches), with the outlet located at the bottom right for proper hose routing.

Applications and Problem Solving

This radiator is designed to address common cooling system issues in compatible vehicles, including:

• Overheating caused by inefficient heat dissipation
• Transmission fluid overheating due to lack of integrated cooling
• Engine oil temperature regulation through internal oil cooler
• Corrosion and wear in older radiators with metal tanks
• Leaks or damage from worn or cracked radiator cores

Installation Notes and Tips

When installing the Global Parts radiator 1826C, ensure compatibility with your vehicle’s make and model, specifically Chevrolet Blazer, GMC Jimmy, Isuzu Hombre, Oldsmobile Bravada, or S10 Sonoma. Verify hose connections match the inlet and outlet diameters of 1.31 inches and 1.6 inches respectively. Properly secure the radiator to avoid vibration and check for any interference with surrounding components. It is recommended to flush the cooling system before installation to maintain optimal performance.

Quality Assurance and Warranty

Global Parts manufactures this radiator to meet OEM standards, using quality aluminum and plastic materials for durability and corrosion resistance. The part number 1826C is backed by a limited warranty covering defects in materials and workmanship, providing confidence in long-term reliability for your Chevrolet, GMC, Isuzu, or Oldsmobile vehicle.
