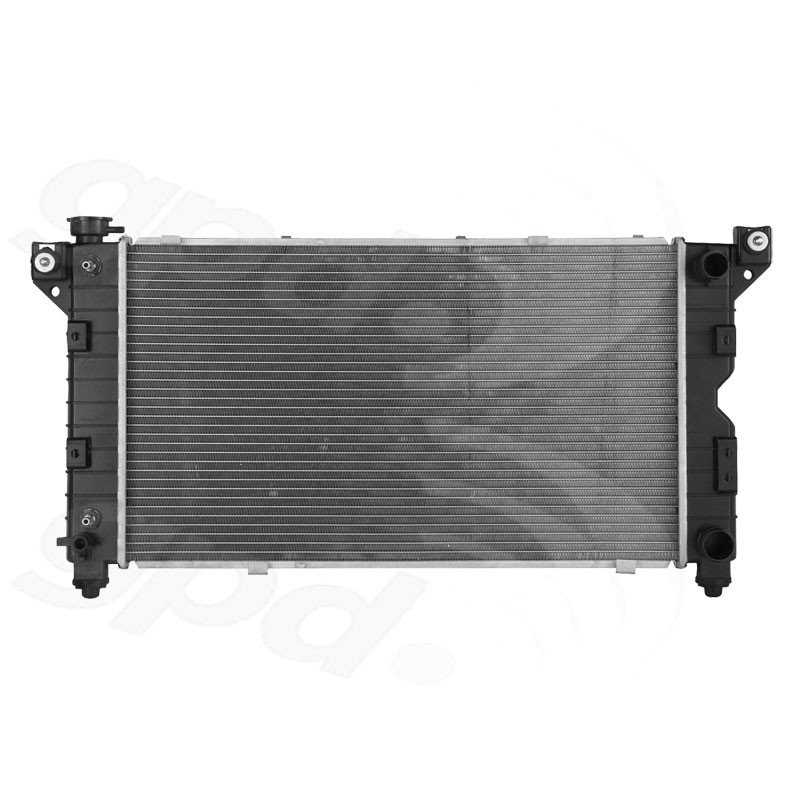

Global Parts 1850C Radiator

Overview of Global Parts Radiator 1850C

The Global Parts radiator 1850C is designed for reliable cooling performance in Chrysler, Dodge, and Plymouth vehicles. Specifically compatible with Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager models, this radiator supports efficient engine operation and transmission cooling.

• Core dimensions: 15.63 inches height, 25.75 inches width, 1.38 inches thickness
• Constructed with an aluminum core and plastic tanks for durability and heat dissipation
• Cross flow design with bottom right outlet location
• Includes integrated transmission oil cooler with tube fittings
• Single core row with 64 fins per 4 inches for effective heat exchange

Technical Specifications and Features

The radiator features a 15.63-inch (397 mm) core height, 25.75-inch (654.05 mm) core width, and 1.38-inch (35.05 mm) core thickness, providing a balanced size for optimal cooling capacity. The aluminum core material enhances heat transfer efficiency, while the plastic tanks reduce weight and resist corrosion. The cross flow design improves coolant flow and heat dissipation, with the outlet located at the bottom right for proper fitment in specified vehicle models.

This radiator also includes a built-in transmission oil cooler, equipped with tube fittings spaced 12.01 inches apart and a fitting diameter of 0.35 inches, supporting transmission fluid temperature regulation. The inlet header measures 1.5 inches (38.1 mm) in width and 1.38 inches (35.02 mm) in length, with an inlet diameter of 1.25 inches (31.75 mm) and outlet diameter of 1.6 inches (40.64 mm), ensuring compatibility with factory hose connections.

Compatible Vehicles and Applications

This radiator 1850C is compatible with the following vehicles:

• Chrysler Caravan and Grand Caravan
• Dodge Grand Voyager and Voyager
• Plymouth Town & Country

It is designed to replace original equipment radiators in these models, maintaining proper engine and transmission cooling performance.

Common Issues Addressed by Radiator 1850C

• Engine overheating due to inefficient heat dissipation
• Transmission fluid overheating with integrated transmission oil cooler
• Coolant leaks from damaged or corroded radiator tanks
• Reduced cooling capacity from clogged or bent fins
• Improper fitment causing coolant flow restrictions

Installation Notes and Tips

When installing the Global Parts radiator 1850C, ensure all hose connections match the inlet and outlet diameters of 1.25 inches and 1.6 inches respectively. Verify the transmission oil cooler fittings align with the factory transmission lines. Inspect mounting points for secure fitment and confirm the radiator orientation with the bottom right outlet location. Bleed the cooling system properly after installation to avoid air pockets and ensure optimal coolant circulation.

Quality Assurance and Warranty

Global Parts radiators are manufactured to meet OEM specifications, using quality aluminum cores and durable plastic tanks. The 1850C radiator undergoes rigorous testing for leak resistance and thermal performance. This product includes a limited warranty covering defects in materials and workmanship, providing assurance for professional and DIY installers.
